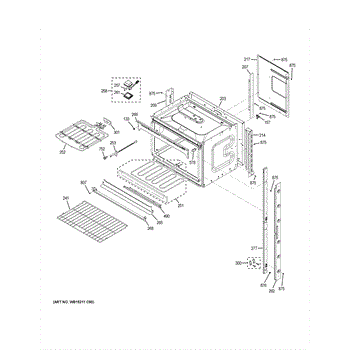

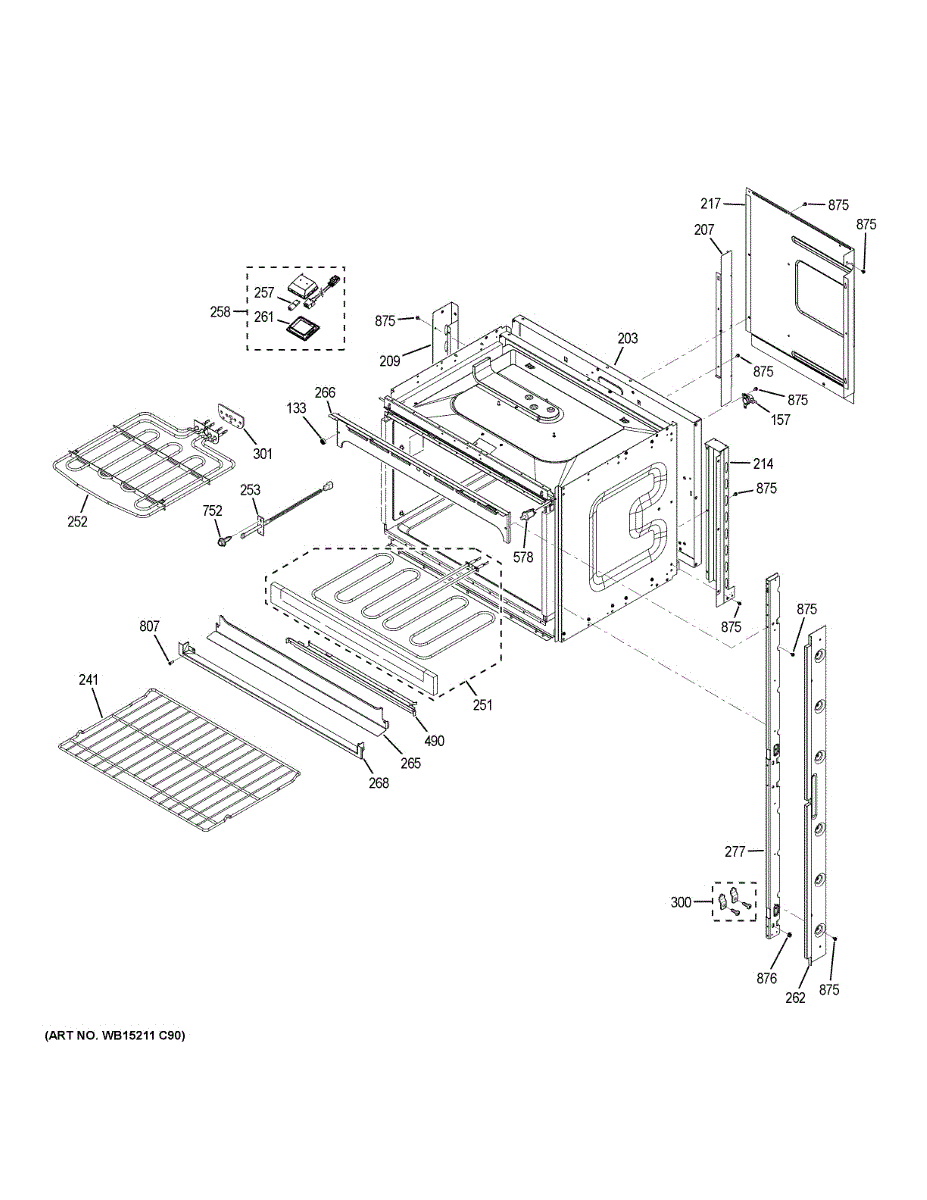

Parts for Ge JT3500DF5BB: Upper Oven Parts

This high limit switch is the temperature safety cut-out for your appliance. It monitors heat and opens the circuit if temperatures rise too high—helping protect components and prevent shutdowns caused by overheating.

• Monitors temperature at a critical location and interrupts power if limits are exceeded
• Helps protect internal components from heat damage
• Can help address: unit won't power on, shuts off during use, or runs without heating
• Replace if it remains open (no continuity) when cool or shows visible damage

• Disconnect power at the breaker before servicing; never work on a live appliance
• If servicing a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire positions and transfer leads one at a time; mount the switch securely in the original location
• Do not bypass a safety switch; also correct any airflow/ventilation issues that may have caused overheating

Restore a safe, level shelf inside your oven. This replacement oven rack supports bakeware securely and lets you position pans at the right height for baking, roasting, or broiling when your original rack is bent, rusted, or missing.

• Provides a stable, heat-safe surface for cookware inside the oven
• Slides on the side rails at multiple positions to set cooking height
• Keeps pans level and properly supported when correctly seated
• Common signs it's needed: rack is bent/warped, flaking or rusted, doesn't slide properly, or missing

• Allow the oven to cool completely; wear gloves to protect hands
• To remove the old rack, pull it forward to the stop, lift the front to clear the stops, and pull straight out
• To install, align the rear of the rack with the side rails, keep level, and slide fully back until seated

The Hidden Bake Element Kit is an OEM component specifically designed for GE wall ovens. This kit contains the bake heating element, mounting bracket, and wiring harness necessary to complete the installation.

Causes of a bad bake element can include deteriorating insulation leading to shorts or failures over time, or damage from baking spills or impact.

Symptoms of a bad bake element include:

• Inconsistent or uneven baking
• Reduced heating power
• The oven not heating up to the set temperature
• Error codes related to bake element operation

This OEM GE replacement kit is also compatible with Hotpoint, RCA, and select Kenmore models.

This broil element is the oven's upper heating element that delivers intense top heat for broiling and finishing dishes. Replacing a failed element restores reliable broil performance and consistent, even top browning.

• Provides direct top heat during Broil to sear and brown foods evenly
• Common signs of failure: broiler won't heat or the element doesn't glow
• Uneven top browning or longer-than-normal broil times
• Visible blisters, cracks, or breaks; in some cases, selecting Broil may trip the breaker

• Disconnect power at the breaker and allow the oven to cool completely
• Remove mounting screws from inside the oven and gently pull the element forward
• Transfer the two wires to the new element one at a time; do not let wires retract into the cavity
• Reinstall screws, ensure the element is centered and clear of the liner, restore power, and test

The Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or extended high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to maintain the set oven temperature
• Fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Lamp Halogen Bulb is an OEM part for GE ovens. This part provides illumination inside the oven, allowing users to easily monitor the cooking process without opening the door and losing heat.

Causes of a bad lamp halogen bulb can include regular wear and tear from extended use, exposure to high temperatures, or accidental impacts that cause the bulb to break or malfunction.

Symptoms of a bad Lamp Halogen Bulb include:

• The oven interior not lighting up when the door is opened
• Flickering or dim light
• The bulb being visibly burnt out or broken
• Difficulty seeing inside the oven during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The HALOGEN LAMP ASM is an OEM component specifically designed for GE electric wall ovens and ranges. It serves as the light source to illuminate the oven cavity, allowing users visual inspection of dishes during the cooking process.

Causes of a bad halogen lamp assembly can include bulb burnout over extended use. Handling the lamp without protective gear may also cause accidental breakage.

Symptoms of a bad halogen lamp assembly involve:

• Dim or unlit oven cavity preventing visibility of food
• Completely burned out or broken bulb housing unit
• Faulty bulb connection preventing power delivery

Replacing it with this genuine GE part restores the essential oven light functionality. Proper illumination streamlines cooking and ensures thorough temperature application.

This OEM GE halogen lamp assembly replacement is also compatible with some Hotpoint and RCA wall oven models. Reliable lighting performs as intended cycle after cycle.


The Lens Oven Light is an OEM part for GE ovens. It lights the oven cavity, allowing homeowners to view food while cooking or cleaning without opening the oven door. The lens is designed to project an even spread of light and withstand high temperatures inside the oven.

Causes of a bad lens can include cracks or breaks due to impact or excessive heat exposure over time. The polymer material used in the lens can degrade with regular use of the oven at high temperatures.

Symptoms of a bad lens include:

• Dim or no light inside the oven cavity
• Uneven or splotchy light distribution
• Cracks or breaks in the lens cover

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge bracket assembly secures and supports the refrigerator door pivot to restore proper door alignment and reliable opening/closing. It replaces worn or damaged hinge hardware to help stop door sag and improve sealing. What it does

• Replaces the door hinge bracket that anchors the hinge to the cabinet or door
• Restores correct door alignment and smooth pivoting motion
• Helps eliminate sagging or uneven door gaps that affect the seal
• Works with existing hinge pins and mounting points to secure the door

• One hinge bracket assembly kit

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing/installing the hinge to prevent dropping or damage
• Use appropriate hand tools; tighten fasteners to secure bracket without over-torquing

This heat-resistant gasket fits around the broil element where it passes through the oven liner. It helps seal the opening to reduce heat and moisture leaks and provides a secure, finished fit for the element.

• Seals the broil element pass-through at the oven liner to help contain heat, steam, and splatters
• Helps protect insulation and wiring behind the liner from spills and debris
• Cushions the mounting point to reduce metal-to-metal wear and rattles
• Common signs it's needed: brittle, cracked, or missing gasket; discoloration or residue at the pass-through; element feels loose at the mounting point

• Disconnect power at the breaker and let the oven cool completely before servicing
• Remove broil element screws and gently lower or pull the element forward to access the pass-through
• Remove the old gasket; seat the new gasket evenly without stretching or pinching; don't overtighten hardware
• Reconnect firmly and route wires away from sharp edges before reassembly

This hidden bake cover replaces the metal shield that protects and conceals the oven's hidden bake element, helping keep the element clean and directing heat for consistent cooking performance. What it does

• Shields the hidden bake element from spills and debris to reduce cleaning and potential damage.
• Helps direct heat from the hidden bake element for more even oven temperatures.
• Replaces a cracked, warped, or missing cover that can expose the element or allow food to fall onto it.
• Compatible with common symptom: visible damage or a missing cover after service or heavy use.

• Disconnect power to the oven at the breaker before starting any work.
• Allow the oven to cool completely; the element and surrounding parts can retain heat.
• Remove mounting screws or clips used by your model and lift the old cover out; handle carefully to avoid bending.
• The cover seats flat against the element support and reinstall fasteners securely.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

A small replacement mounting screw used to secure panels and components in household appliances. Restores proper fastening to reduce rattling, loose panels, and misaligned parts for safer, quieter operation. What it does:

• Fastens panels, brackets, and trim to keep appliance parts securely in place.
• Stops vibration-related noise caused by loose fasteners.
• Prevents components from shifting, which can affect fit and function.
• Works wherever the OEM screw specification matches the application.

• Use the matching screw size and thread type for the original hole; do not force a mismatched screw.
• Turn off and disconnect power before accessing internal components to avoid shock.
• Hand-start threads to prevent cross-threading; tighten until snug—do not over-torque.
• If multiple screws or a specific length/type is required, verify the full parts list for your model before ordering.

This black-finished screw secures appliance panels, brackets, or trim in place. Replacing a missing or damaged fastener restores a solid fit and helps prevent rattling, gaps, and loose components.

• Fastens panels, trim, brackets, or covers on the appliance
• Helps maintain proper alignment and reduces vibration noise
• Common replacement when the original is lost, stripped, rusted, or broken
• Symptoms include loose or wobbly parts, rattling, or visible gaps

• Disconnect power; for gas appliances, also shut off the gas supply
• Allow hot surfaces to cool before servicing
• Start threads by hand to avoid cross-threading, then tighten snugly—do not overtighten
• Reuse any original washers or spacers in the same order and location

Black. 8-18 AB HXW 3/8
