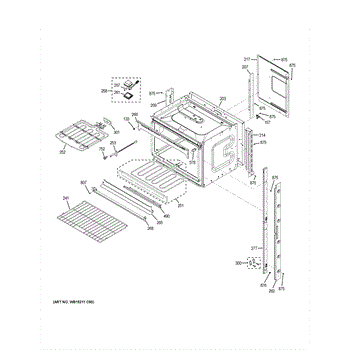

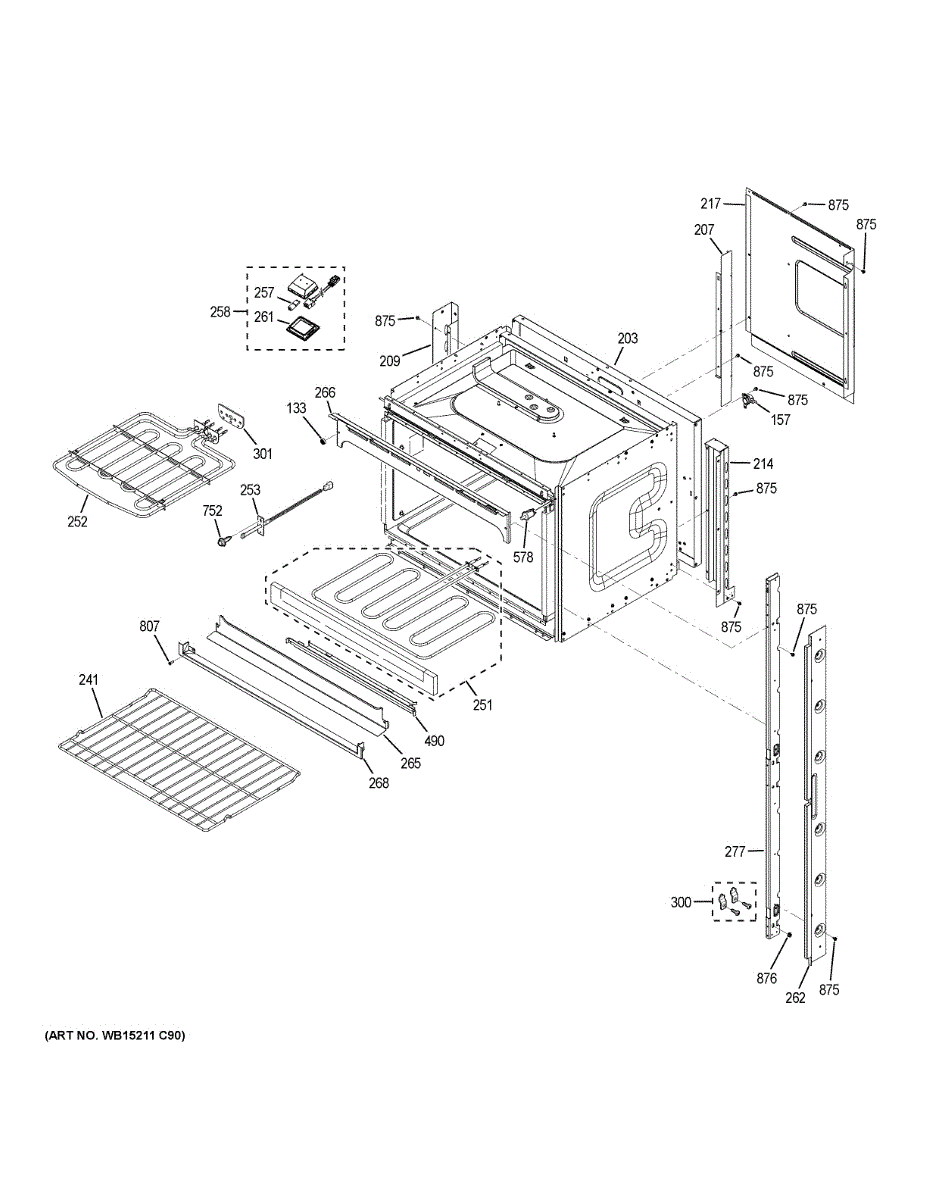

Parts for Ge JT3500DF6BB: Upper Oven Parts

Fixes oven not heating after self-clean cycle. This thermal safety switch cuts power when temperatures get too high. Simple diagnosis with continuity test.

Replace a bent, rusted, or missing oven rack. Provides a stable, heat-safe surface for cookware and allows proper positioning for baking and roasting.

Oven not heating or baking unevenly? This hidden bake element kit restores proper heating. Includes element, bracket, and wiring for complete repair.

Fix uneven browning or a non-working broiler with this upper heating element. Common solution when the oven heats but won't broil. DIY-friendly replacement.

Fix F2 or F34 error codes and inaccurate oven temperatures with this temperature sensor assembly. Moderate DIY repair, 30-60 minutes install time.

Halogen bulb illuminates your oven cavity so you can monitor cooking without opening the door. Replace when dim or burnt out. Verify fit with your model.

Replace your oven light lens cover to restore interior lighting. Install when cracked, discolored, or missing. Confirm fit with your model number.

Vertical side trim piece for electric wall ovens. Covers the side edge of the oven cavity. Replace if cracked, chipped, discolored, or missing.

Lower vent trim for electric ranges and wall ovens. Replace this cosmetic trim piece if cracked, chipped, discolored, or missing. Installs at base.

Black upper vent trim for wall ovens. Covers the ventilation opening on the control panel area. Replace if cracked, faded, or missing for a clean look.

Secures and supports oven door pivot for proper alignment and smooth opening/closing. Replace if door sags, won't close flush, or hinge feels loose. Confirm fit with your model number.

Heat escaping around broil element? This pass-through gasket seals the opening where the element enters the oven liner, containing heat and steam. Quick DIY fix.

Shields your oven's hidden bake element from spills and debris. Directs heat for even cooking and reduces cleaning. Moderately easy DIY install.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Mounting screw secures panels, brackets, and trim in ranges and wall ovens. Replace when stripped, missing, or damaged to restore proper fastening.

Black-finished screw secures oven panels, trim, and brackets. Replace missing or damaged fasteners to restore solid fit and prevent rattling or gaps.

Black. 8-18 AB HXW 3/8
