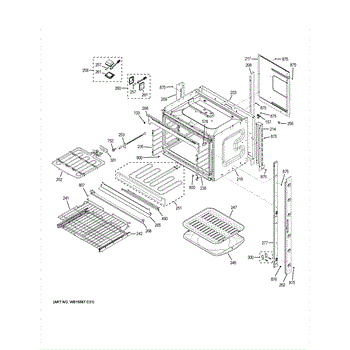

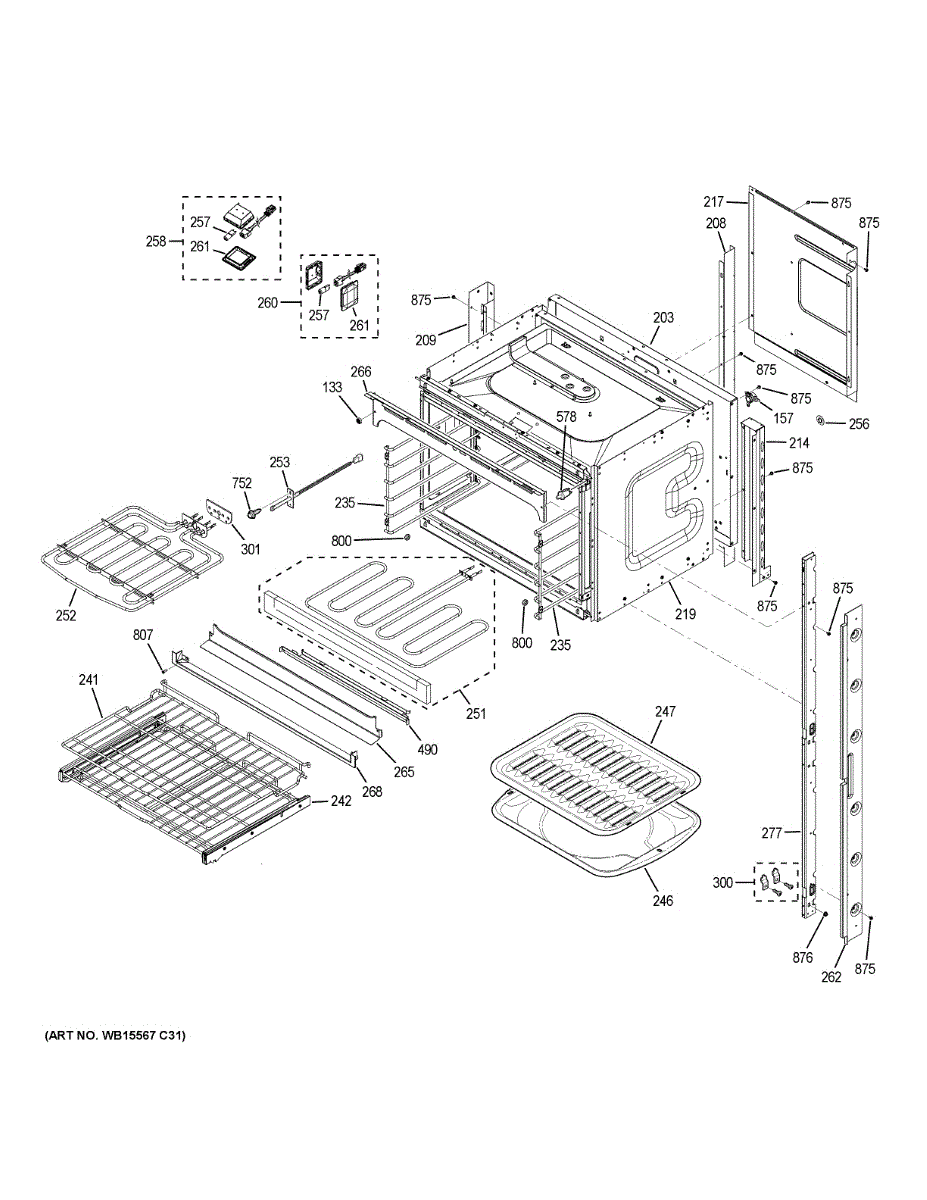

Parts for Ge ZEK7500SH4SS: Upper Oven Parts

Fixes oven not heating after self-clean cycle. This thermal safety switch cuts power when temperatures get too high. Simple diagnosis with continuity test.

Air divider panel for double wall ovens. Separates oven cavities and directs airflow. Replace if cracked, warped, or missing to restore proper oven operation.

Replace a worn or broken right-side oven rack guide to restore smooth rack movement and stable support. Prevents binding and keeps racks aligned.

Left-side oven rack guide supports and aligns your oven rack for smooth sliding. Replace if cracked, broken, or worn to restore stable rack movement.

Flat oven rack provides a stable cooking surface for pots, pans, and bakeware. Replaces a missing, bent, or damaged rack in your wall oven.

Slide assembly for wall oven racks. Installs on the oven cavity sides to support the rack glide mechanism. Replace if cracked, broken, or worn.

This replacement broiler pan assembly provides a durable surface for broiling and collects drippings to help reduce flare-ups and smoke. Designed to restore even browning and simplify cleanup in compatible ovens. What it does:

• Holds food during broiling and exposes it to direct heat for browning and searing
• Collects grease and drippings to help reduce smoke and flare-ups
• Elevates food on the grid for more even heat exposure and crisping
• Replaces warped, dented, or corroded broiler pans that no longer perform properly

• Allow the oven to fully cool and turn power off before handling the old pan
• Slide the pan and grid into the broiler compartment or designated oven rack position until seated
• Clean with warm, soapy water; avoid abrasive cleaners that may damage the finish
• Use oven mitts when removing after use and inspect regularly for warping or heavy corrosion

Broiler pan grid holds food above drip pan for even browning and proper fat drainage. Replace when warped or corroded. Confirm fit with your model.

If your oven won't heat during bake cycles or bakes unevenly, this hidden bake element kit restores proper temperature. Mounts under the oven floor.

This broil element is the replacement heating element for the oven's upper/broil function, restoring direct top-heat for broiling and finishing dishes. Fits common GE ovens that use this OEM-style element. What it does:

• Heats the oven's upper cavity to provide direct broil heat for searing and browning.
• Replaces a broken, burned-out, or non-heating broil element.
• Helps restore even broiling when the oven fails to reach or maintain broil temperatures.
• Compatible with ovens that use a concealed or exposed upper broil element design.

• 1 broil element

• Disconnect power at the breaker or fuse box before starting any repair.
• Remove oven racks and back panel/insulation as needed to access mounting screws and wire terminals.
• Note terminal locations and wiring before disconnecting; take a photo for reference.
• Use proper strain relief on wires and tighten mounting hardware securely; test function after reassembly.

Fix F2 or F34 error codes and inaccurate oven temperatures with this temperature sensor assembly. Moderate DIY repair, 30-60 minutes install time.

Retainer bolt secures internal components and panels in your range or wall oven. Replace if bolt is stripped, missing, or causing loose assemblies.

Halogen bulb illuminates your oven cavity so you can monitor cooking without opening the door. Replace when dim or burnt out. Verify fit with your model.

Replace your oven light lens cover to restore interior lighting. Install when cracked, discolored, or missing. Confirm fit with your model number.

Vertical side trim piece for electric wall ovens. Covers the side edge of the oven cavity. Replace if cracked, chipped, discolored, or missing.

Lower vent trim for wall ovens. Installs along the bottom edge to cover the vent opening. Replace if cracked, discolored, warped, or missing.

Bottom cabinet trim for wall ovens. Replaces the decorative trim piece at the base of your wall oven cabinet that has become cracked, broken, or damaged.

Secures and supports oven door pivot for proper alignment and smooth opening/closing. Replace if door sags, won't close flush, or hinge feels loose. Confirm fit with your model number.

Heat escaping around broil element? This pass-through gasket seals the opening where the element enters the oven liner, containing heat and steam. Quick DIY fix.

Protective cover that conceals the bake element in the oven cavity bottom. Replace if cracked, warped, discolored, or missing for a clean appearance.

This is a high-amp SPDT (single pole, double throw) switch used in the oven door mechanism. It detects whether the oven door is open or closed and signals the control to enable or disable certain functions such as the oven light or broil element. Replace this switch if the oven light does not turn on or off when the door is opened or closed, or if the oven does not operate correctly in relation to door position.

Mounting screw secures panels, brackets, and trim in ranges and wall ovens. Replace when stripped, missing, or damaged to restore proper fastening.

Replacement rack guide nut for wall ovens. Secures oven rack guides in place. Order a new nut if yours is stripped, broken, or missing from the cavity.

Black-finished screw secures oven panels, trim, and brackets. Replace missing or damaged fasteners to restore solid fit and prevent rattling or gaps.

Black. 8-18 AB HXW 3/8
