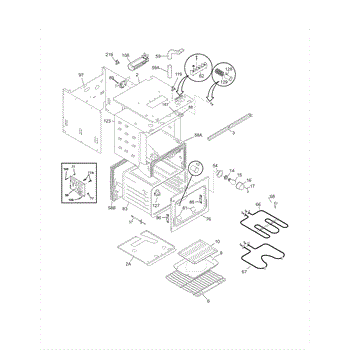

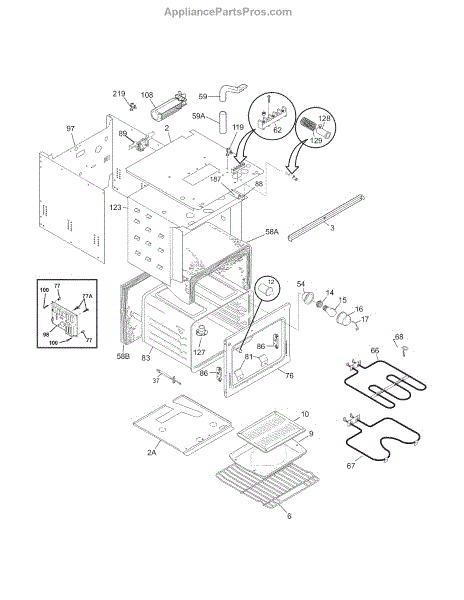

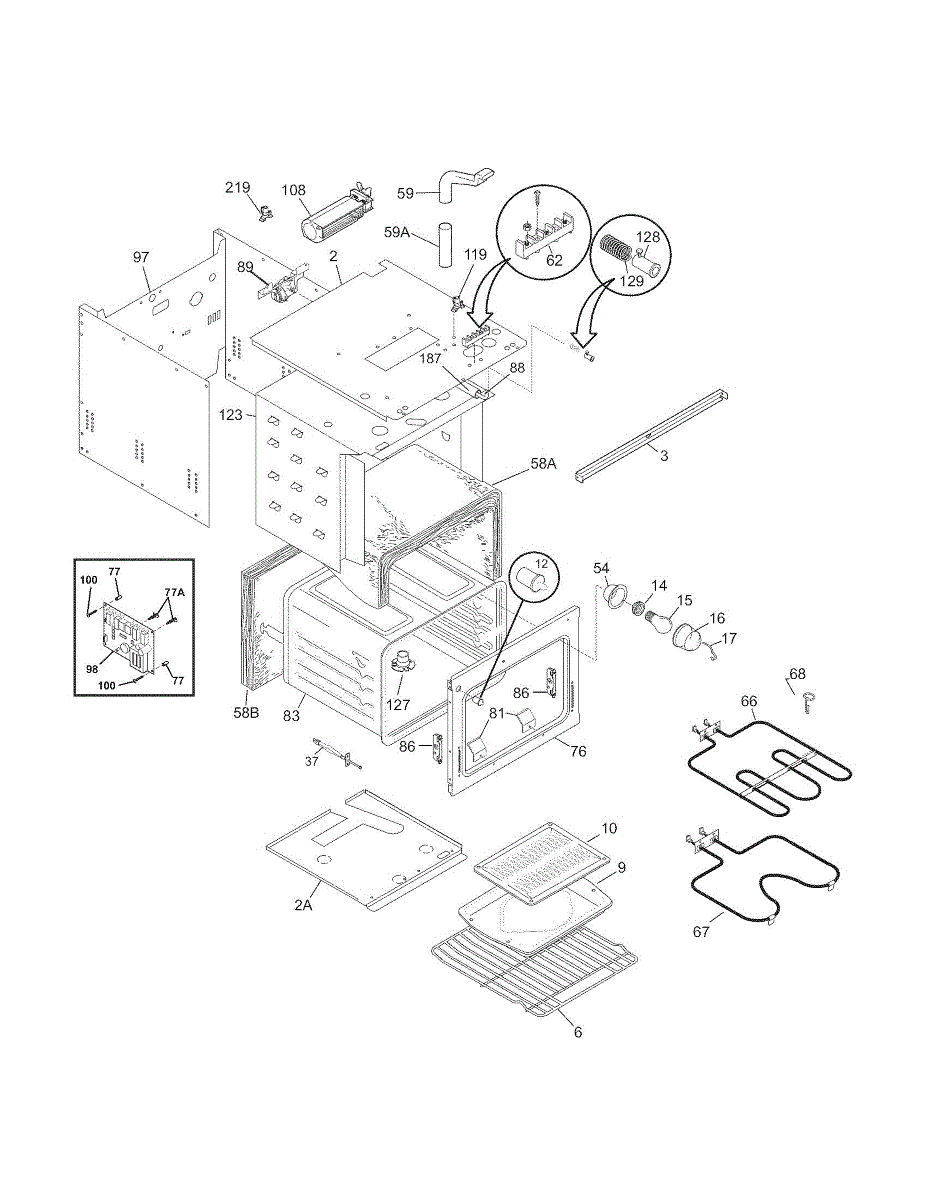

Parts for Kenmore 790.40613802 (79040613802, 790 40613802): Upper Oven Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electric heating element restores consistent, reliable heat in your appliance, so cooking or warming functions work as intended. Replace a failed element to eliminate slow heat-up, uneven temperatures, or no-heat conditions.

• Converts electrical power into heat for the appliance's designated cavity or surface
• Common failure symptoms: no heat, uneven heating, very slow preheat/warm-up
• Visual clues: breaks, blisters, or hot spots on the coil
• May cause the unit to cycle erratically or trip a breaker if shorted

• Disconnect power at the breaker or unplug before servicing; allow all components to cool
• Wear cut-resistant gloves; avoid bending or kinking the element
• Photograph wiring and transfer connectors one-for-one; ensure tight, clean terminal fits
• Inspect wires/terminals for heat damage and replace any compromised connectors

Oven won't heat or bakes unevenly? A failed bake element is likely the cause. This lower heating element replacement typically takes 30 minutes or less.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

This outer front panel replaces a damaged or dented cabinet front to restore the appliance's appearance and provide support for the door and front-mounted components. Durable sheet-metal construction keeps internal parts protected. What it does

• Restores the appliance's exterior appearance after dents, cracks, or corrosion.
• Provides structural support and mounting surface for the door, latch, and lower trim.
• Protects internal components from dust, debris, and accidental contact.
• Helps ensure proper door alignment and sealing when installed correctly.

• One outer front panel (quantity: 1)

• Disconnect power (and gas/water if applicable) before beginning any repair.
• Installation typically requires removing the door, trim, and/or control console to access mounting fasteners.
• Handle the panel carefully to avoid sharp edges and to prevent further cosmetic damage.
• Verify all mounting tabs and screws are secure and that the door aligns and closes properly after installation.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix uneven baking or no heat circulation in your wall oven with this convection fan motor. Restores proper airflow for consistent cooking results.

Oven not heating or broil element staying on constantly? The relay control board regulates temperature by receiving signals from the main control board.

Adapter assembly for oven vent system. Installs in back wall to align vent components. Replace if cracked, broken, or missing to restore proper fit.

Rubber or plastic bushing that cushions and supports the oven door. Replace if cracked, worn, missing, or causing door misalignment or rattling.

Replace your oven's broken or missing rack spring. This small metal spring helps support and stabilize oven racks during sliding and positioning.

This part has been discontinued by the manufacturer and is no longer available.

Wiring harness for ovens and ranges. Connects electrical components inside the appliance. Replace if wires are frayed, damaged, or connections worn.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.
