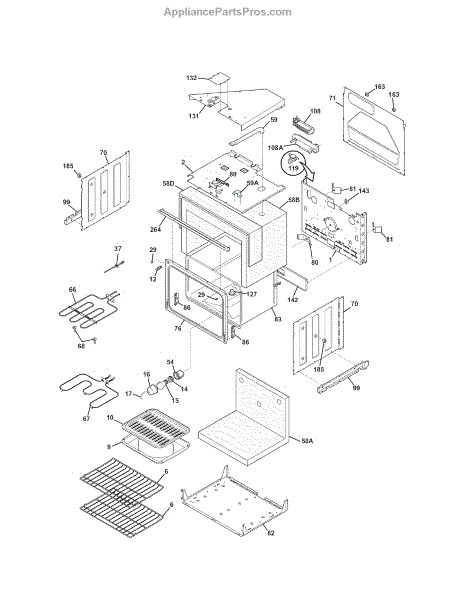

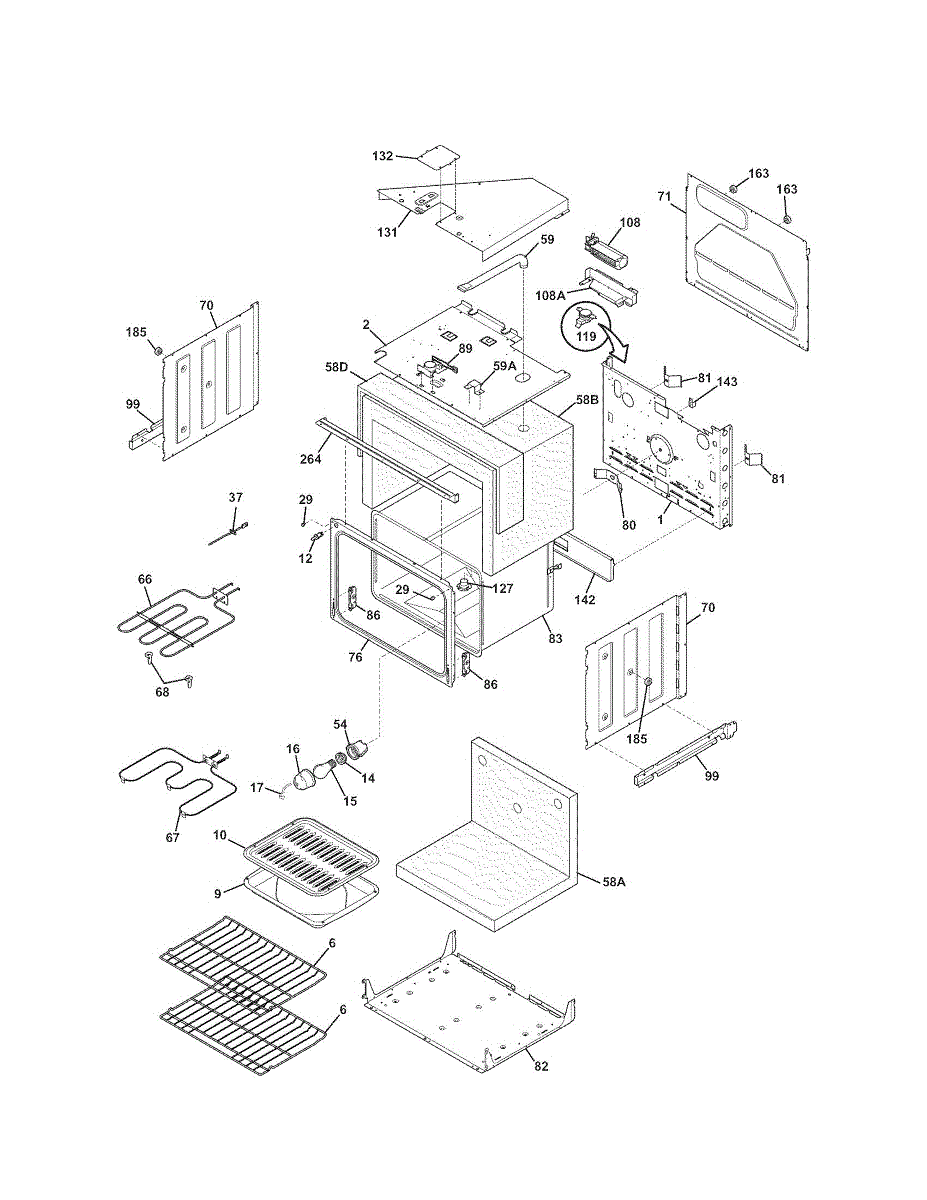

Parts for Kenmore 790.47873408 (79047873408, 790 47873408): Upper Oven Parts

Rear panel back for ovens and ranges. Replaces cracked, damaged, or missing exterior back panels. Essential structural part for cabinet integrity.

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Fix F1, F3, or F10 error codes and inaccurate oven temperatures with this sensor. Simple DIY replacement takes about 30 minutes with basic tools.

Insulation panel for oven cavity. Replaces worn, damaged, or missing insulation that provides thermal protection and sound dampening around your oven.

Broiler not heating or turning red? This broil element restores high-heat broiling. DIY-friendly repair, typically takes 10-15 minutes with basic tools.

Oven not heating or baking unevenly? The bake element often fails after years of use. Easy DIY fix in minutes—unplug, unscrew, and replace wires.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Replace your oven's front panel frame if cracked, dented, or damaged. This structural component installs at the exterior of your range to restore appearance.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix F95 error codes or doors that won't lock with this oven door latch motor. Restores self-cleaning function. Moderate difficulty, 30-45 minute repair.

Fix a range cooling fan that won't shut off or makes howling noises with this motor. Requires removing oven from cabinet and back panel access.

Oven won't heat or can't hold temperature? This thermal switch monitors oven temperature and protects internal components. Common fix for heat issues.

Adapter assembly for oven vent system. Installs in back wall to align vent components. Replace if cracked, broken, or missing to restore proper fit.

Replacement support plate for ovens and ranges. Mounts inside the oven cavity to secure internal components. Order a new plate if yours is cracked or broken.

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500
