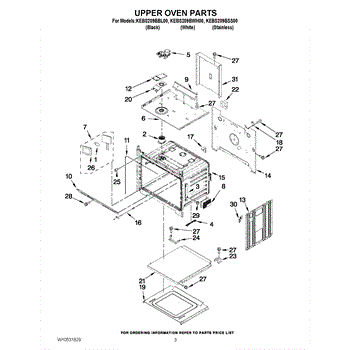

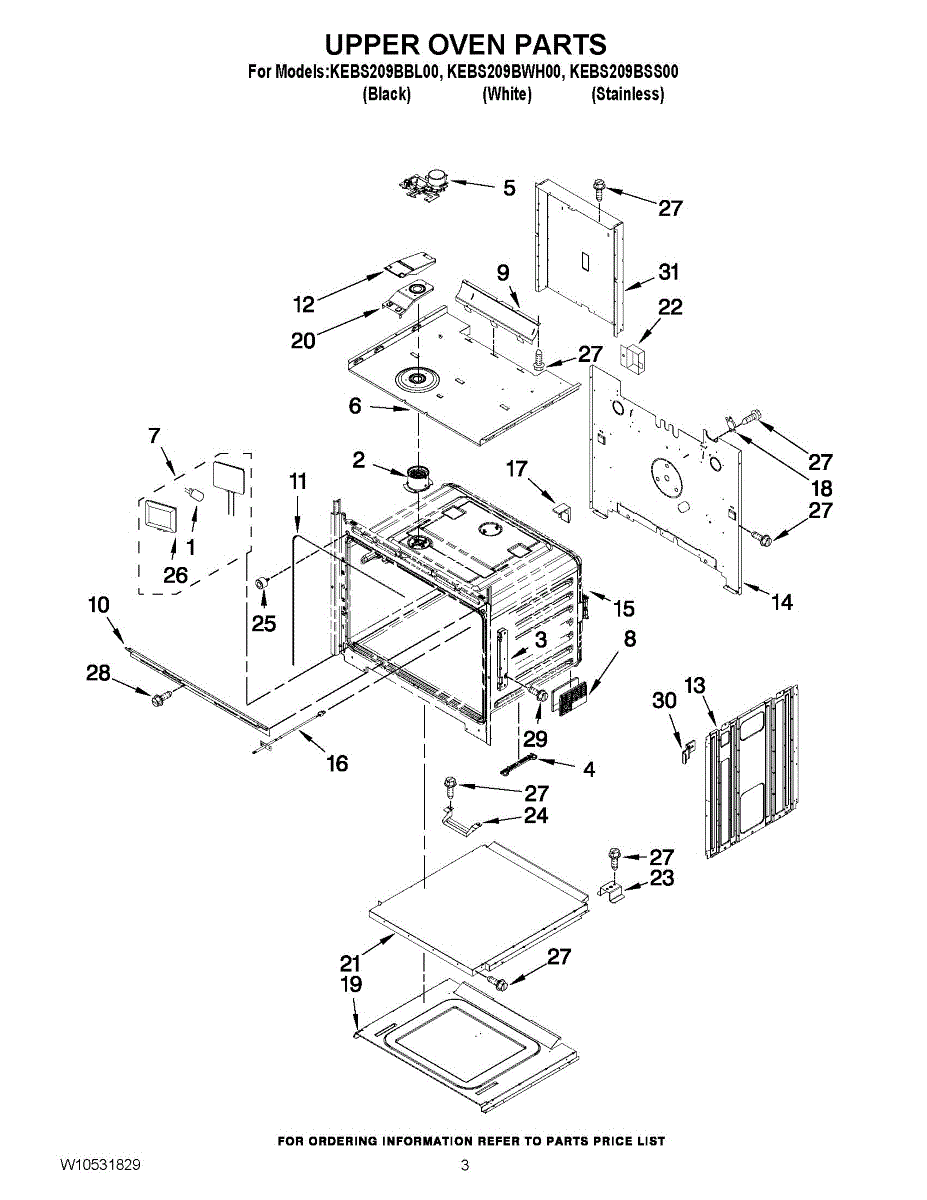

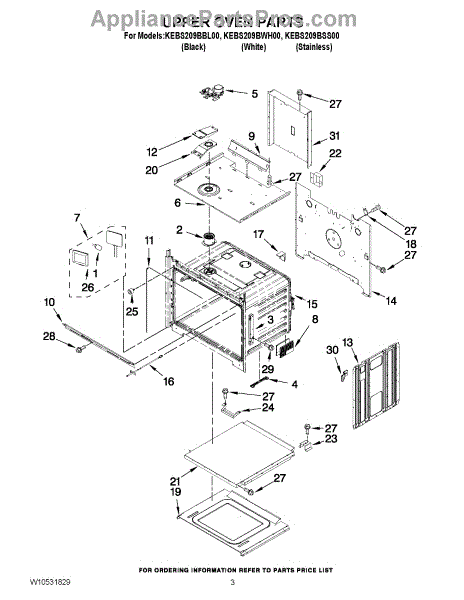

Parts for Kitchenaid KEBS209BBL00: 02 - Upper Oven Parts

Interior light bulb illuminates your oven cavity for monitoring cooking progress. Replace when dim or burnt out. Verify fit with your model number.

Routes hot, moist air from your dryer drum to the external vent outlet. Replace if cracked, disconnected, or damaged to restore proper airflow.

Receiver bracket that mounts and holds oven door hinges in place. Replace if cracked, broken, or worn from repeated use causing door misalignment or instability.

Replacement spacer for ovens and microwaves. Maintains proper clearance and alignment between components. Order a new spacer if yours is missing or damaged.

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

Restores bright oven interior lighting so you can monitor food without opening the door. Replace when bulb burns out or dims. Verify fit by model number.

Adjustable leveling foot that stabilizes and levels your appliance on uneven floors to stop rocking and improve overall stability. Simple replacement for a worn or damaged foot to restore a solid, level setup. What it does:

• Threads into the appliance base to support weight and set the appliance height
• Lets you level the appliance to stop rocking or tilting on uneven floors
• Helps reduce vibration and shifting during operation
• Common symptom fix: appliance wobbles, is unlevel, or rocks when pushed

• Disconnect power and pull appliance away from the wall before working underneath
• Support the appliance so it cannot tip; adjust the foot by turning until the unit is level
• Recheck level front-to-back and side-to-side; tighten any retaining hardware if present
• If rusted or stuck, use penetrating lubricant and proper tools; avoid forcing parts in a way that could damage the cabinet

Replace your wall oven door cavity gasket when heat escapes or condensation appears. Creates an airtight seal for optimal cooking temperatures. Confirm fit with your model number.

Replacement bumper rail that cushions your oven door to reduce noise and prevent metal contact. Installs on door frame to restore smooth closing.

The High Limit Thermostat is an OEM replacement part for Whirlpool ovens. It acts as a safety mechanism that monitors the oven's temperature to prevent overheating. When the oven exceeds a specific temperature, the high-limit thermostat interrupts the electrical flow to the heating element, ensuring the appliance remains within safe operating conditions.

Causes of a bad High Limit Thermostat can include a malfunction due to electrical issues or component failure. It may become unresponsive over time, failing to cut off the power to the heating element when the oven overheats.

Symptoms of a bad High Limit Thermostat include:

• The oven not heating up adequately or overheating
• Inconsistent oven temperatures leading to undercooked or overcooked food
• The thermostat being unresponsive or failing to regulate the oven’s temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This chassis bottom duct is the lower access cover that protects internal components and channels airflow under the appliance cabinet. It helps keep wiring and parts shielded while allowing proper ventilation. What it does:

• Covers and protects the appliance chassis bottom area from dust, debris and accidental contact
• Directs airflow under the cabinet to support cooling/ventilation paths
• Prevents loose items from entering the chassis and interfering with components
• Can be replaced when cracked, warped, missing, or causing gaps that expose internals

• Intended for use as a direct-replacement exterior cover; verify fit before installation
• Power off and unplug the appliance before removing or installing the duct
• Remove any obstructing panels or fasteners to access the mounting points; retain hardware if reusing
• If damage extends to adjacent components, inspect internal wiring and mounts for service

6-32 machine screw secures panels, brackets, and components in appliances. Replace worn, missing, or stripped screws to restore proper fit and assembly.

Restores bright oven interior lighting so you can monitor food without opening the door. Replace when bulb burns out or dims. Verify fit by model number.

Screw for control panel vent.

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.
