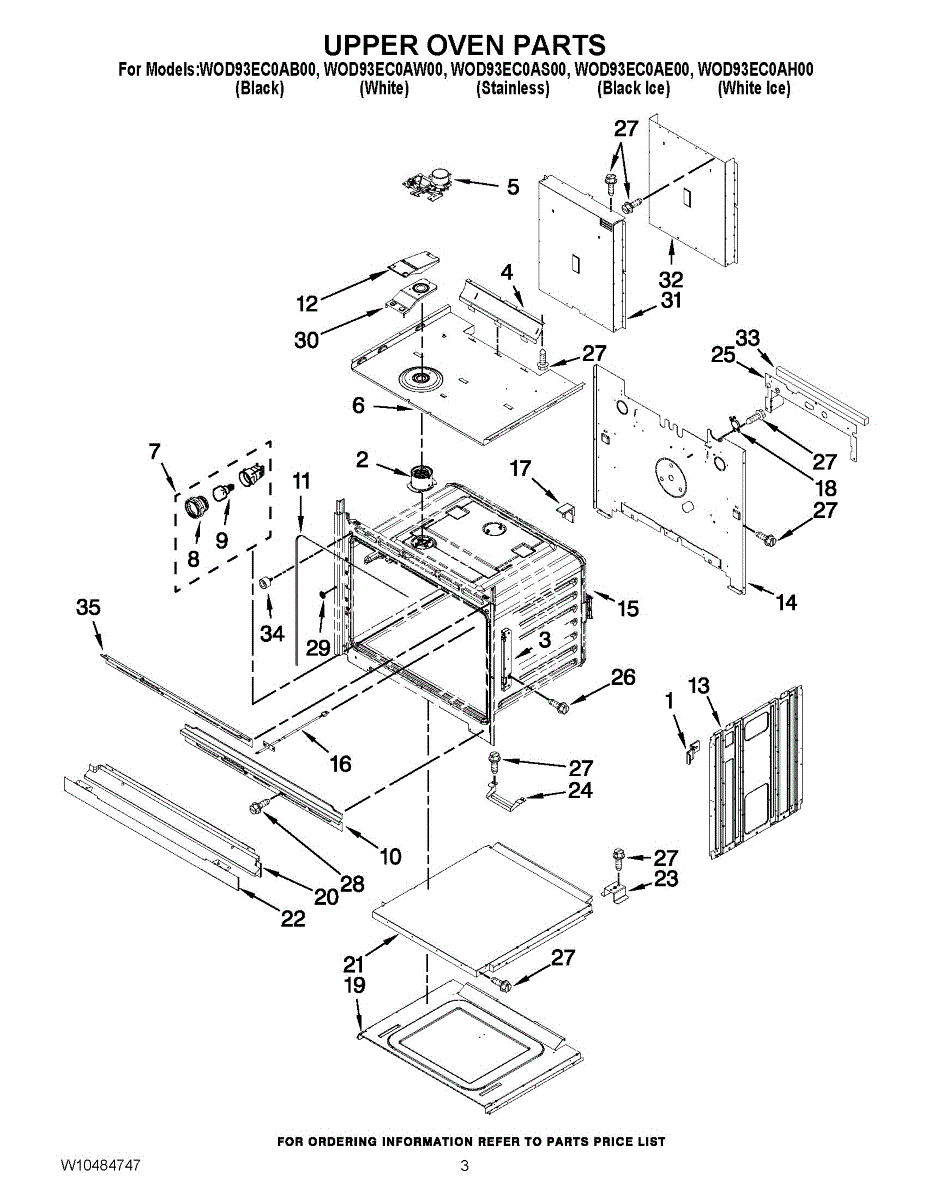

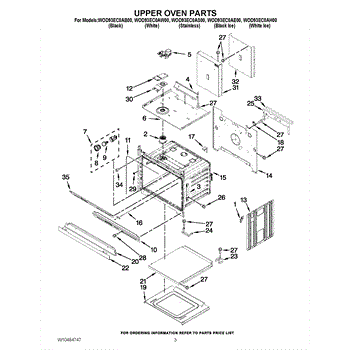

Parts for Whirlpool WOD93EC0AE00: 02 - Upper Oven Parts

Routes hot, moist air from your dryer drum to the external vent outlet. Replace if cracked, disconnected, or damaged to restore proper airflow.

Receiver bracket that mounts and holds oven door hinges in place. Replace if cracked, broken, or worn from repeated use causing door misalignment or instability.

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

This indicator light is a small control-panel lamp that signals oven/cooktop status and helps you know when elements or functions are active. It restores visible status indication for better, safer operation. What it does:

• Illuminates the control panel to show when a function or heating element is on
• Commonly used as a power/status indicator on ranges and cooktops
• Fixes symptoms like a dark or non-responsive status light on the appliance
• Helps when controls or timed functions are active

• One indicator light

• Disconnect power to the appliance before beginning any work to avoid shock
• Handle the lamp carefully; avoid force — some panels or bezels must be removed first
• Replace with the exact OEM part number to ensure correct fit and function
• After installation, restore power and verify the light operates with appliance functions

This light lens replaces a damaged or missing lamp cover in your appliance. It protects the bulb and diffuses light so the area is safely and evenly illuminated again.

• Covers and diffuses the appliance light for clearer, more even illumination
• Shields the bulb from contact, moisture, grease, and debris
• Helps restore proper brightness if the old lens is yellowed or cloudy
• Common signs of failure: cracked or missing lens, discoloration, loose/broken retaining tabs, dim or harsh lighting

• Disconnect power to the appliance before servicing and allow the area/bulb to cool
• Remove any screws or release retaining tabs; note the lens orientation for reinstallation
• Install the new lens carefully; do not overtighten fasteners to avoid cracking
• Reuse your existing bulb and mounting hardware

The Light Bulb is an OEM part for Whirlpool ovens. This bulb is illuminates the oven's interior, allowing you to monitor the cooking process without opening the door and losing heat.

Causes of a bad light bulb can include regular wear and tear, exposure to high temperatures, or electrical surges.

Symptoms of a bad light bulb include:

• The bulb not lighting up
• Flickering or dim light
• Intermittent lighting issues
• Visible signs of a burnt-out filament

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replace your wall oven door cavity gasket when heat escapes or condensation appears. Creates an airtight seal for optimal cooking temperatures. Confirm fit with your model number.

Cushions and supports your oven door edge to prevent metal contact and reduce noise. Replace if cracked, worn, or missing to restore smooth closing.

The High Limit Thermostat is an OEM replacement part for Whirlpool ovens. It acts as a safety mechanism that monitors the oven's temperature to prevent overheating. When the oven exceeds a specific temperature, the high-limit thermostat interrupts the electrical flow to the heating element, ensuring the appliance remains within safe operating conditions.

Causes of a bad High Limit Thermostat can include a malfunction due to electrical issues or component failure. It may become unresponsive over time, failing to cut off the power to the heating element when the oven overheats.

Symptoms of a bad High Limit Thermostat include:

• The oven not heating up adequately or overheating
• Inconsistent oven temperatures leading to undercooked or overcooked food
• The thermostat being unresponsive or failing to regulate the oven’s temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fixes overheating or poor ventilation in wall ovens. This lower vent assembly channels hot air out safely, protecting internal components. Restores airflow.

Missing or damaged oven vent trim? This bottom vent assembly channels hot air out and restores a finished look. Easy DIY install in under 30 minutes.

This chassis bottom duct is the lower access cover that protects internal components and channels airflow under the appliance cabinet. It helps keep wiring and parts shielded while allowing proper ventilation. What it does:

• Covers and protects the appliance chassis bottom area from dust, debris and accidental contact
• Directs airflow under the cabinet to support cooling/ventilation paths
• Prevents loose items from entering the chassis and interfering with components
• Can be replaced when cracked, warped, missing, or causing gaps that expose internals

• Intended for use as a direct-replacement exterior cover; verify fit before installation
• Power off and unplug the appliance before removing or installing the duct
• Remove any obstructing panels or fasteners to access the mounting points; retain hardware if reusing
• If damage extends to adjacent components, inspect internal wiring and mounts for service

Front kick panel trim that covers and finishes the lower vent opening on wall ovens. Replace if cracked, broken, or missing for a clean appearance.

This bottom vent trim covers the lower front opening and directs airflow while giving the appliance a finished, clean look. It replaces a damaged or missing kickplate to restore proper ventilation and appearance.

• Shields the lower cabinet opening and helps guide airflow through the base
• Improves finished look by concealing internal components at the bottom front
• Common symptoms of failure include a loose, cracked, or missing trim and rattling at the base
• Can affect airflow if the trim is broken, warped, or not secured

• Unplug power and shut off utilities as applicable before servicing
• Remove existing fasteners, note their locations, and retain for reuse if still serviceable
• Align the trim with mounting points; secure with the correct hardware per your model
• Do not overtighten fasteners to avoid cracking the trim

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.

Screw for control panel vent.

Restores a cushioned seal where hoses, tubes, or wires enter your oven. Prevents leaks and rattles while protecting against chafing. Confirm fit.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

6-32 machine screw secures panels, brackets, and components in appliances. Replace worn, missing, or stripped screws to restore proper fit and assembly.
