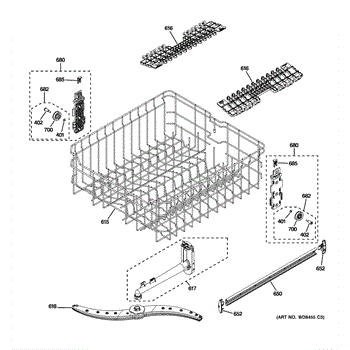

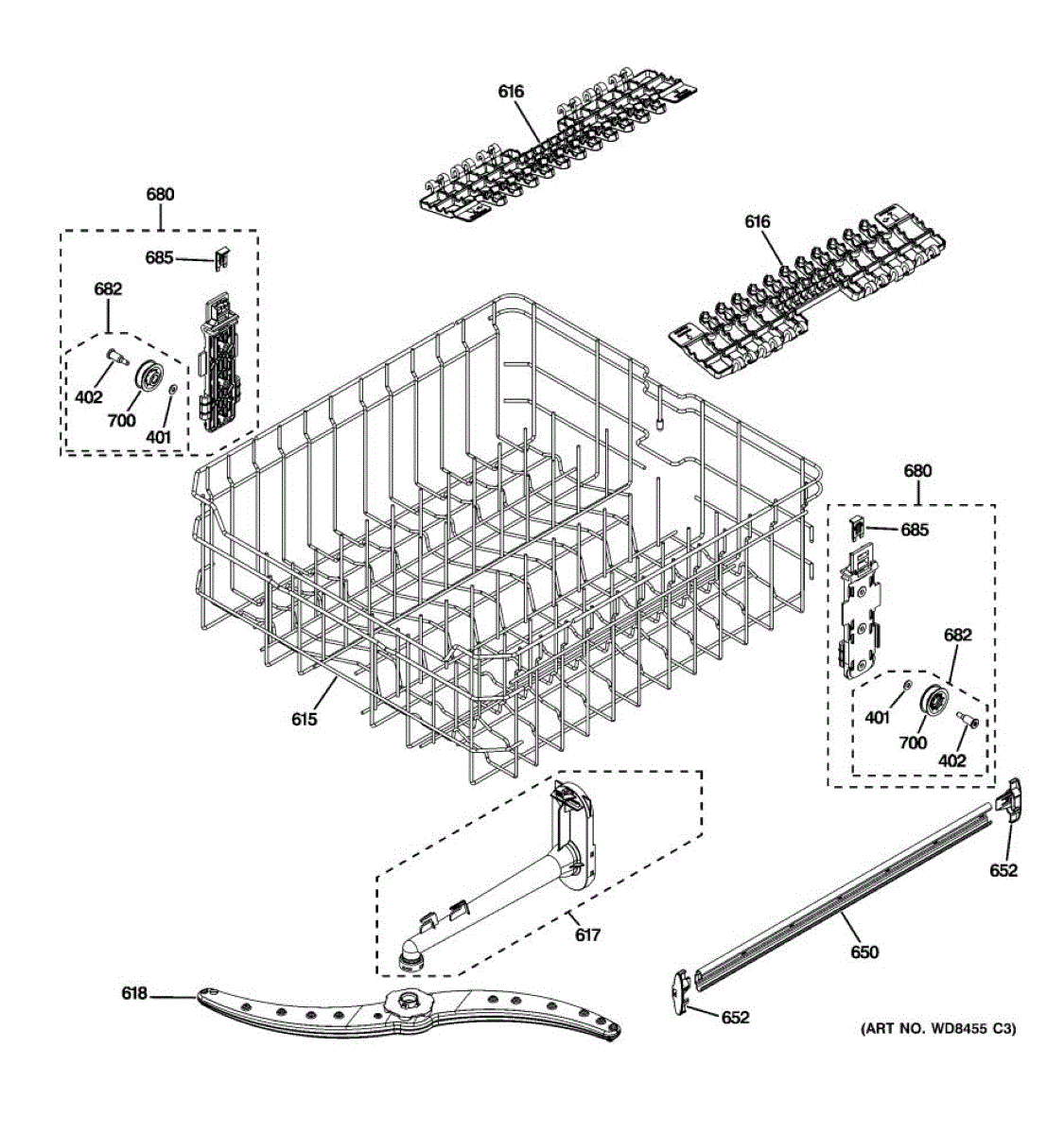

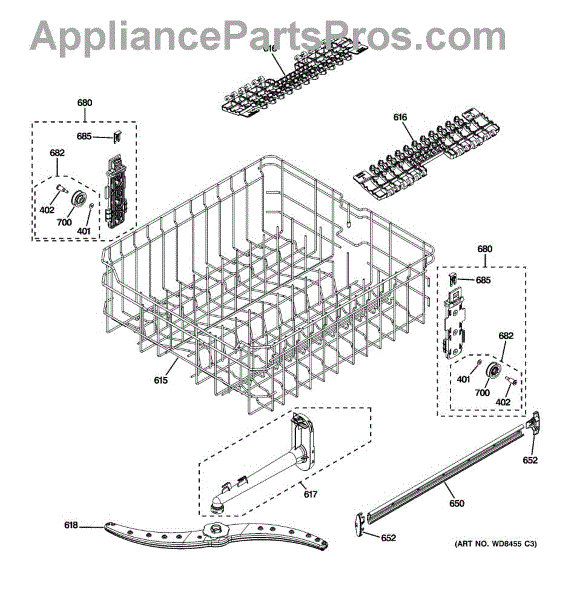

Parts for Ge GDF540HGD0WW: 03 - Upper Rack Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Restore safe, organized loading on the top level. Replacing a damaged upper rack brings back smooth sliding, proper item placement, and dependable use without snagging or collapsed tines.

What it does

• Holds cups, glasses, and bowls securely on the upper level
• Helps prevent items from tipping or falling through the rack
• Restores smooth slide-in/slide-out when rails and rollers are intact
• Replaces racks with broken, rusty, or missing tines

What’s included
One upper rack assembly.

Install notes

• Open the door, pull the rack to the stops, then release/remove end caps to slide the rack out
• Seat the new rack on the rails and reinstall end caps—do not force
• Transfer any clip-on accessories from the old rack if applicable
• Run a quick rinse cycle to confirm smooth travel

The Middle Conduit Assembly is an OEM part for GE dishwashers, designed to facilitate the proper routing and distribution of water during the wash cycle. This part ensures that water is evenly distributed to the middle spray arm, providing effective and efficient cleaning of dishes placed on the middle rack.

Causes of a bad middle conduit assembly can include clogs from food debris, mineral buildup from hard water, and physical damage due to regular use or improper loading of dishes. These issues can impede water flow, reducing the dishwasher’s cleaning efficiency.

Symptoms of a bad Middle Conduit Assembly include:

• Poor cleaning performance, especially with dishes on the middle rack
• Water not reaching the middle spray arm
• Unusual noise during the wash cycle, indicating a disruption in water flow

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement end cap for dishwasher rack rails. Prevents upper or lower rack from sliding off when pulled out. Needed when cracked, broken, or missing.
