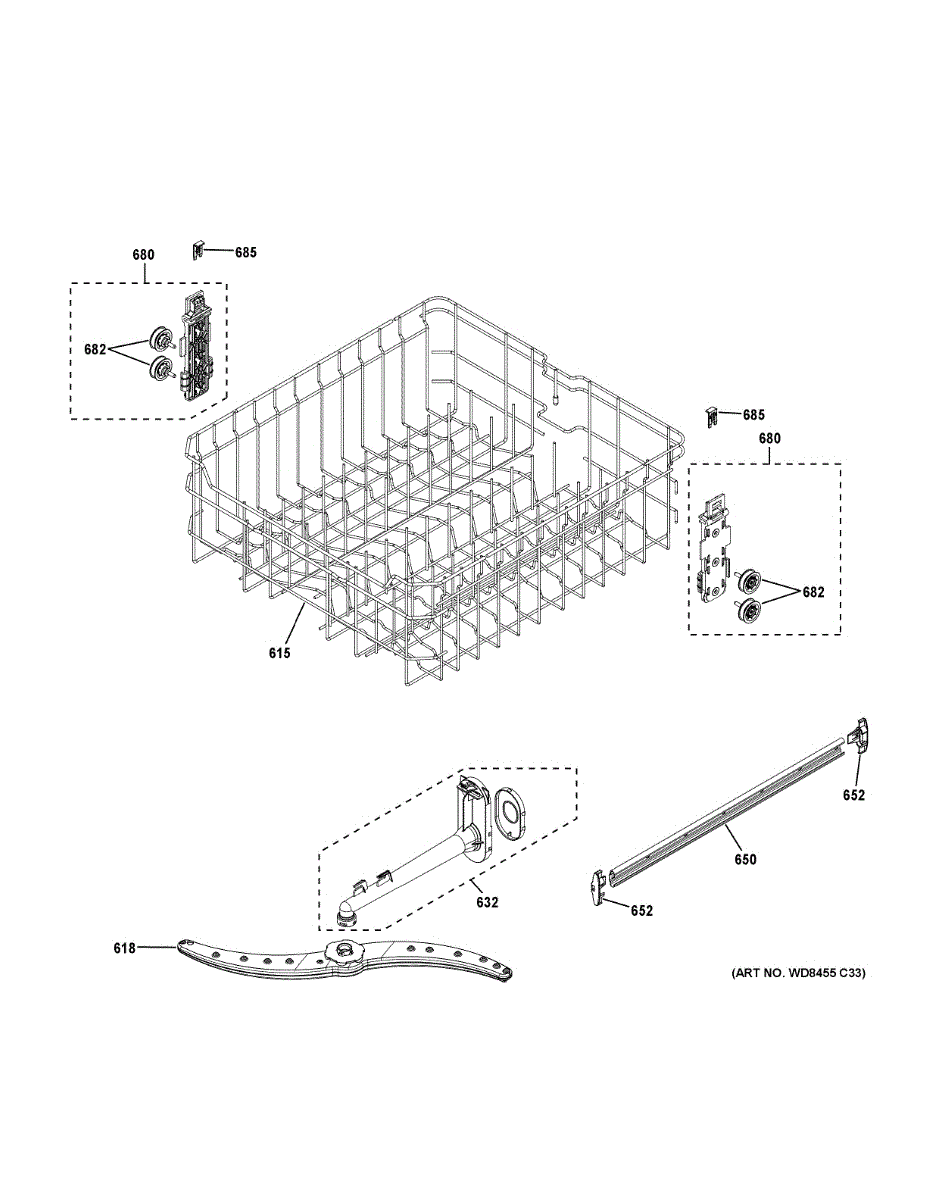

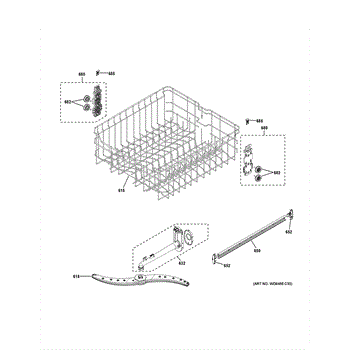

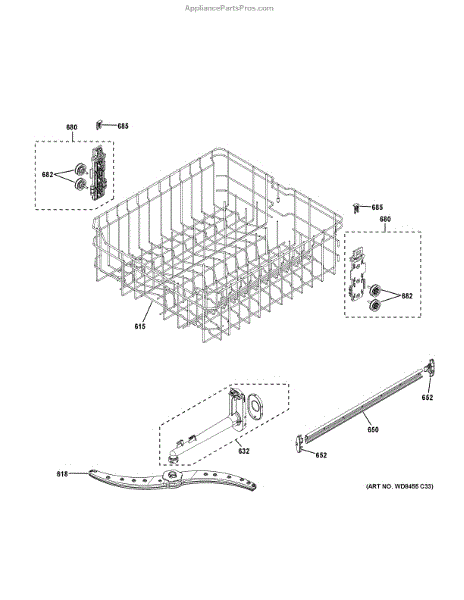

Parts for Ge GDF510PGD2BB: Upper Rack Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Restore safe, organized loading on the top level. Replacing a damaged upper rack brings back smooth sliding, proper item placement, and dependable use without snagging or collapsed tines.

What it does

• Holds cups, glasses, and bowls securely on the upper level
• Helps prevent items from tipping or falling through the rack
• Restores smooth slide-in/slide-out when rails and rollers are intact
• Replaces racks with broken, rusty, or missing tines

What’s included
One upper rack assembly.

Install notes

• Open the door, pull the rack to the stops, then release/remove end caps to slide the rack out
• Seat the new rack on the rails and reinstall end caps—do not force
• Transfer any clip-on accessories from the old rack if applicable
• Run a quick rinse cycle to confirm smooth travel

Contains one lower spray arm and one middle spray arm.

This dishwasher feed tube channels wash water from the sump to the middle spray arm, restoring proper water delivery to help ensure thorough cleaning between racks.

• Directs pressurized water to the middle spray arm during wash cycles
• A worn, cracked, or leaking tube can reduce spray pressure and cleaning performance
• Common symptoms include poor wash results on the middle rack, weak spray, or visible leaks from the conduit area
• Replacing the conduit can resolve intermittent spray or uneven cleaning

• Disconnect power and water supply before servicing
• Remove lower rack and any fasteners/clips securing the conduit; note routing and orientation
• Inspect and transfer any reusable seals or clips only by the manufacturer
• After installation, run a short cycle to check for proper spray and leaks

The Rack Slide is an OEM replacement part for GE dishwashers. It refers to the components that allow the upper rack to glide smoothly in and out. Allowing for continuous movement over extended use, the slides can degrade, causing friction or binding that restricts access to dishes.

Symptoms of bad rack slides include:

• Difficulty fully extending or retracting the racks
• Noisy operation accompanied by grinding or squeaking noises
• Racks that do not run smoothly and become stuck partially open

Causes of rack slides becoming bad are normal wear and tear from loading and unloading dishes over many years. Motion parts wear out more quickly than stationary components.

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore models.

The Rail End Cap is an OEM part for GE dishwashers. This part is designed to fit on the end of the dishwasher rack rails, preventing the racks from sliding off the rails when they are pulled out for loading or unloading dishes. The end cap plays a role in the smooth operation of the dishwasher rack system, ensuring the stability and security of the racks as they move in and out of the dishwasher.

Causes of damage to the rail end cap often include normal wear and tear, accidental breakage during rack movement, or deterioration over time due to exposure to high temperatures and moisture typical in dishwashers.

Symptoms of a bad Rail End Cap include:

• Dishwasher racks slipping off the rails
• Difficulty in pulling out or pushing in the racks smoothly
• Visible damage or wear on the end cap

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rack Bracket - 2 Wheels is an OEM part for GE dishwashers. It supports and allows the smooth movement of the dishwasher rack in and out of the machine, providing stability and ease of use during loading and unloading.

Causes of a bad rack bracket can include wear and tear from regular use, accumulation of debris or hard water deposits, or physical damage from overloading or mishandling the rack.

Symptoms of a bad rack bracket include:

• Difficulty sliding the rack in and out
• The rack derailing or not staying in place
• Unusual noises during rack movement
• Visible damage to the bracket or wheels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This clip bracket attaches to the dishwasher rack to secure a rack-mounted component or accessory. Replace a cracked or missing bracket to keep parts firmly in place so the rack loads easily and performs as designed.

• Attaches to the rack to hold the mating part securely in place
• Helps prevent shifting, rattling, or accessories falling off during cycles
• Restores proper fit when the original clip is broken, worn, or missing
• Typical signs: accessory won't stay attached, clip is visibly cracked or missing, loose components during operation

• Disconnect power at the breaker and turn off the water supply
• Pull out the rack to access the clip location
• Release the old clip's locking tabs and remove; align and snap the new clip firmly in place
• Verify a secure fit before reinstalling the rack and running a test cycle
