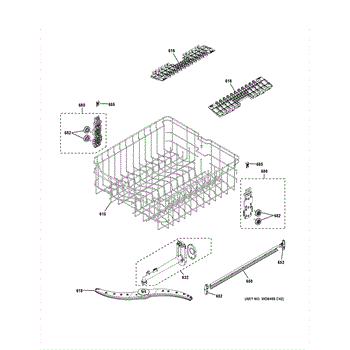

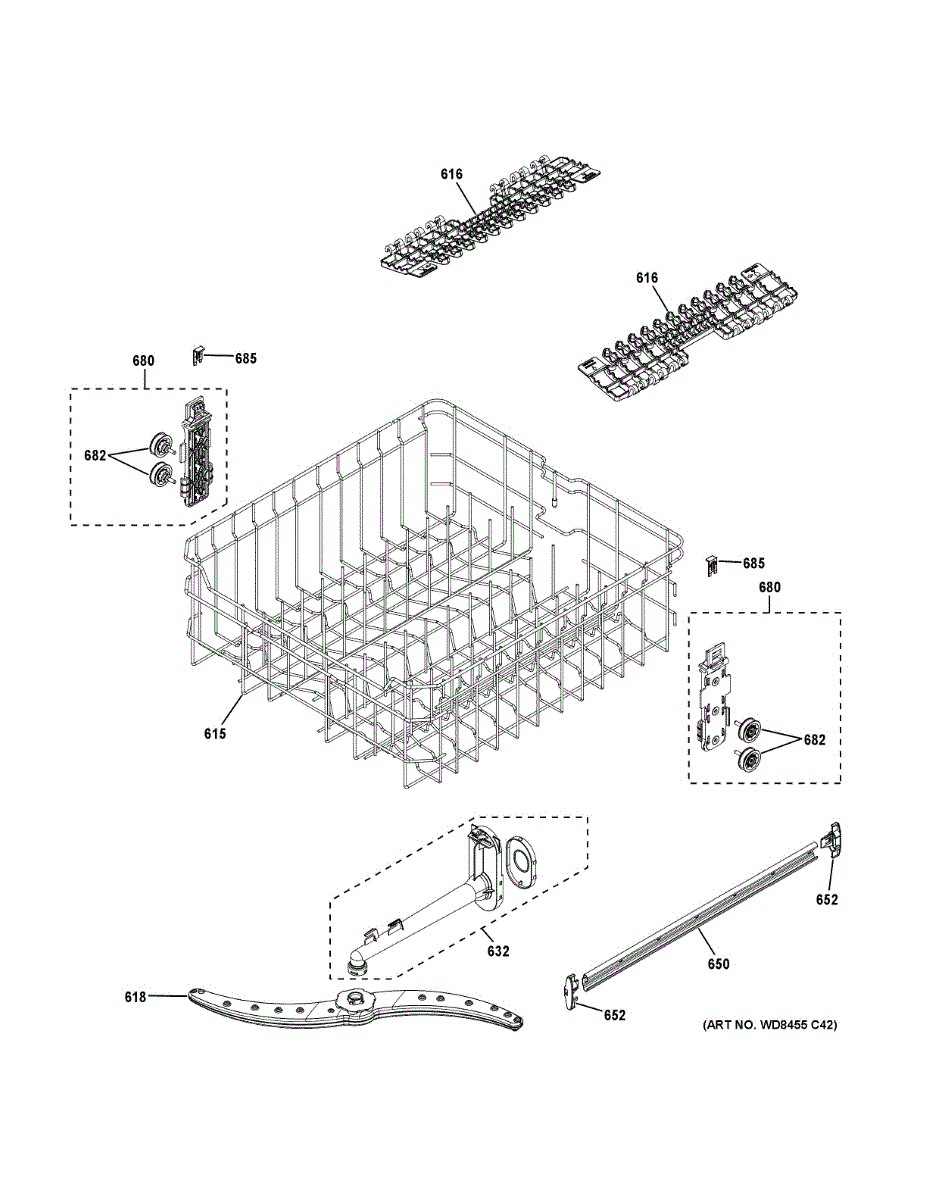

Parts for Ge GDF520PGD1BB: Upper Rack Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Restore safe, organized loading on the top level. Replacing a damaged upper rack brings back smooth sliding, proper item placement, and dependable use without snagging or collapsed tines.

What it does

• Holds cups, glasses, and bowls securely on the upper level
• Helps prevent items from tipping or falling through the rack
• Restores smooth slide-in/slide-out when rails and rollers are intact
• Replaces racks with broken, rusty, or missing tines

What’s included
One upper rack assembly.

Install notes

• Open the door, pull the rack to the stops, then release/remove end caps to slide the rack out
• Seat the new rack on the rails and reinstall end caps—do not force
• Transfer any clip-on accessories from the old rack if applicable
• Run a quick rinse cycle to confirm smooth travel

Rack shelf cup for dishwashers. Provides stability for stemmed glasses. Replace if cracked, warped, or missing due to chemical wear or physical stress.

Contains one lower spray arm and one middle spray arm.

If dishes aren't getting clean in the middle rack, your spray arm feed tube may be cracked or leaking. This conduit channels water for thorough cleaning.

Dishwasher rack slide enables smooth upper rack movement. Replace when rack sticks, binds, or won't glide properly. Confirm fit with your model number.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement end cap for dishwasher rack rails. Prevents upper or lower rack from sliding off when pulled out. Needed when cracked, broken, or missing.

The Rack Bracket - 2 Wheels is an OEM part for GE dishwashers. It supports and allows the smooth movement of the dishwasher rack in and out of the machine, providing stability and ease of use during loading and unloading.

Causes of a bad rack bracket can include wear and tear from regular use, accumulation of debris or hard water deposits, or physical damage from overloading or mishandling the rack.

Symptoms of a bad rack bracket include:

• Difficulty sliding the rack in and out
• The rack derailing or not staying in place
• Unusual noises during rack movement
• Visible damage to the bracket or wheels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures rack-mounted components to your dishwasher rack. Replace this clip bracket if cracked, broken, or missing to keep accessories firmly attached.
