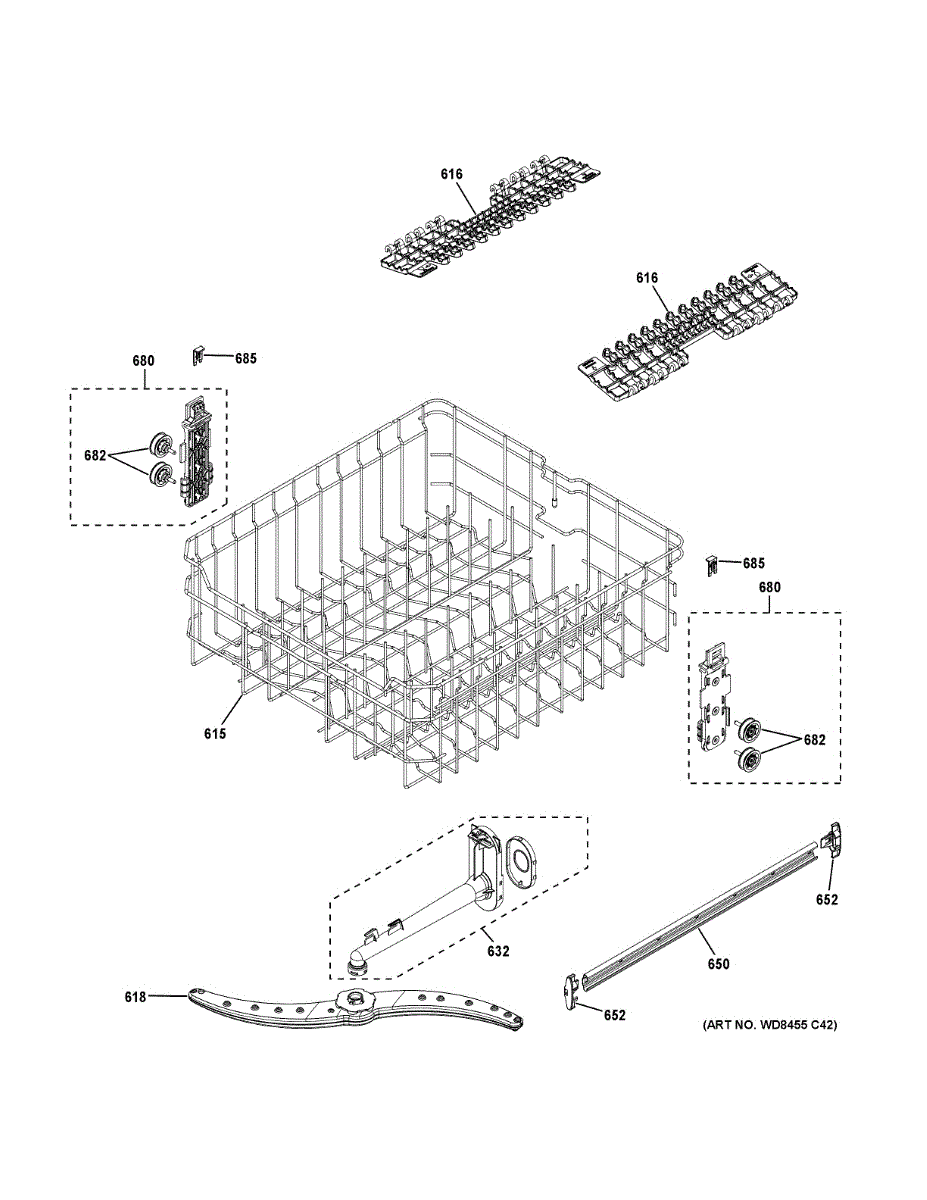

Parts for Ge GDF520PGD6BB: Upper Rack Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Restore safe, organized loading on the top level. Replacing a damaged upper rack brings back smooth sliding, proper item placement, and dependable use without snagging or collapsed tines.

What it does

• Holds cups, glasses, and bowls securely on the upper level
• Helps prevent items from tipping or falling through the rack
• Restores smooth slide-in/slide-out when rails and rollers are intact
• Replaces racks with broken, rusty, or missing tines

What’s included
One upper rack assembly.

Install notes

• Open the door, pull the rack to the stops, then release/remove end caps to slide the rack out
• Seat the new rack on the rails and reinstall end caps—do not force
• Transfer any clip-on accessories from the old rack if applicable
• Run a quick rinse cycle to confirm smooth travel

Rack shelf cup for dishwashers. Provides stability for stemmed glasses. Replace if cracked, warped, or missing due to chemical wear or physical stress.

Contains one lower spray arm and one middle spray arm.

If dishes aren't getting clean in the middle rack, your spray arm feed tube may be cracked or leaking. This conduit channels water for thorough cleaning.

Dishwasher rack slide enables smooth upper rack movement. Replace when rack sticks, binds, or won't glide properly. Confirm fit with your model number.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement end cap for dishwasher rack rails. Prevents upper or lower rack from sliding off when pulled out. Needed when cracked, broken, or missing.

Rack roller assembly with wheels for dishwasher upper or lower racks. Installs at rack corners to guide smooth sliding. Replace when cracked or wheels jam.

Secures rack-mounted components to your dishwasher rack. Replace this clip bracket if cracked, broken, or missing to keep accessories firmly attached.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
