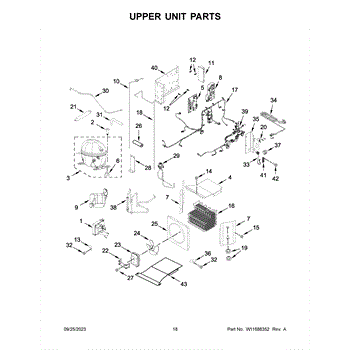

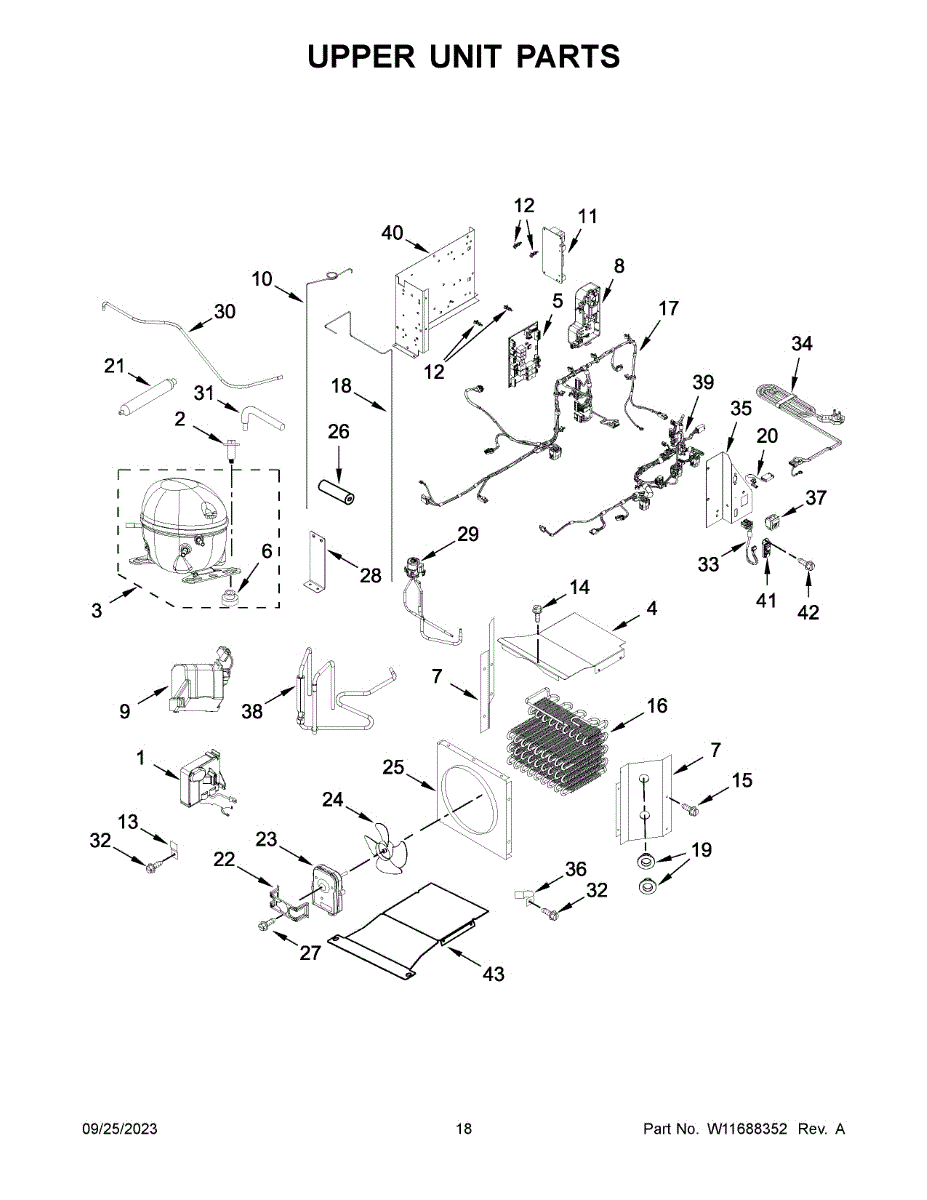

Parts for Kitchenaid KBFN506EBS05: Upper Unit Parts

Fixes refrigerator not cooling, display not working, or erratic temperature control. This main electronic control board restores reliable operation.

Fix cooling issues with this refrigerator inverter box. Regulates variable speed compressor for efficient temperature control. Direct fit component.

Refrigerator won't restart after power outage or showing PF error? This power control board regulates compressor and cooling fans. DIY install in 50 minutes.

Plastic spacer that mounts between refrigerator door panels or hinges. Replace if cracked, broken, or missing to restore proper door alignment.

Mounting bracket that secures the inverter box inside your refrigerator. Replace if cracked, bent, or missing to properly support the inverter assembly.

Rubber grommet for refrigerator doors, shelves, or water lines. Replace if cracked, torn, loose, or missing to restore proper fit and seal.

Jumper wire for refrigerators. Installs in the electrical system to complete circuit connections. Replace if damaged, corroded, or missing.

Filters and dries refrigerant in your refrigerator's cooling system. Replace if you notice cooling issues, leaks, or clogs. Verify fit with your model.

Mounting bracket for refrigerator interior components. Replaces broken, cracked, or missing brackets that secure shelves or bins in place.

Fix a refrigerator that's not cooling properly with this condenser fan motor. Replaces worn motors causing poor heat exchange. Video guide included.

This is a plastic orifice or shroud piece that directs airflow around the condenser fan motor in the refrigerator. It ensures proper air circulation over the condenser coils for efficient cooling. Replace this part if it is cracked or missing, which can lead to poor cooling performance, the compressor running excessively, or unusual airflow noise from the back of the refrigerator.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

Replacement power cord for refrigerators. Connects appliance to wall outlet. Needed when original cord is damaged, frayed, or worn from use.

Replacement housing for your refrigerator. Protects internal components and maintains proper appearance. Order now if your original is cracked or damaged.

This wire jumper provides a short, pre-formed electrical connection used to bridge terminals in the appliance's wiring system, restoring a reliable circuit path for proper operation and diagnostics. What it does:

• Bridges two appliance terminals to complete a circuit or restore continuity
• Used where a short length of insulated conductor is required for control or sensor connections
• Commonly replaces damaged, burned, or corroded jumper wiring causing open circuits
• Can help diagnose or resolve intermittent electrical failures related to a disconnected jumper

• One wire jumper as shown

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Match wire routing and terminal connections to the original; secure all terminals firmly
• Do not splice unless using proper connectors and insulation rated for appliance use
