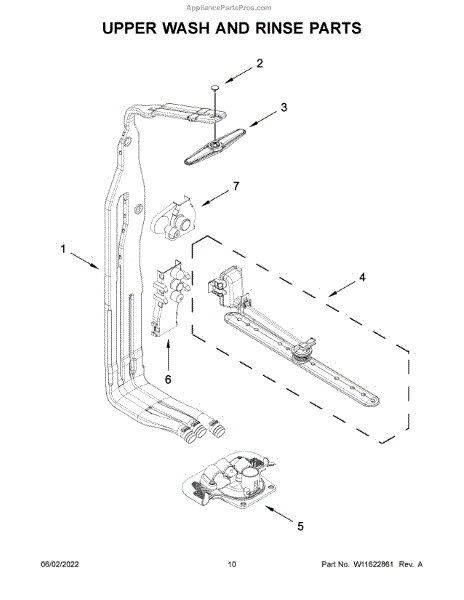

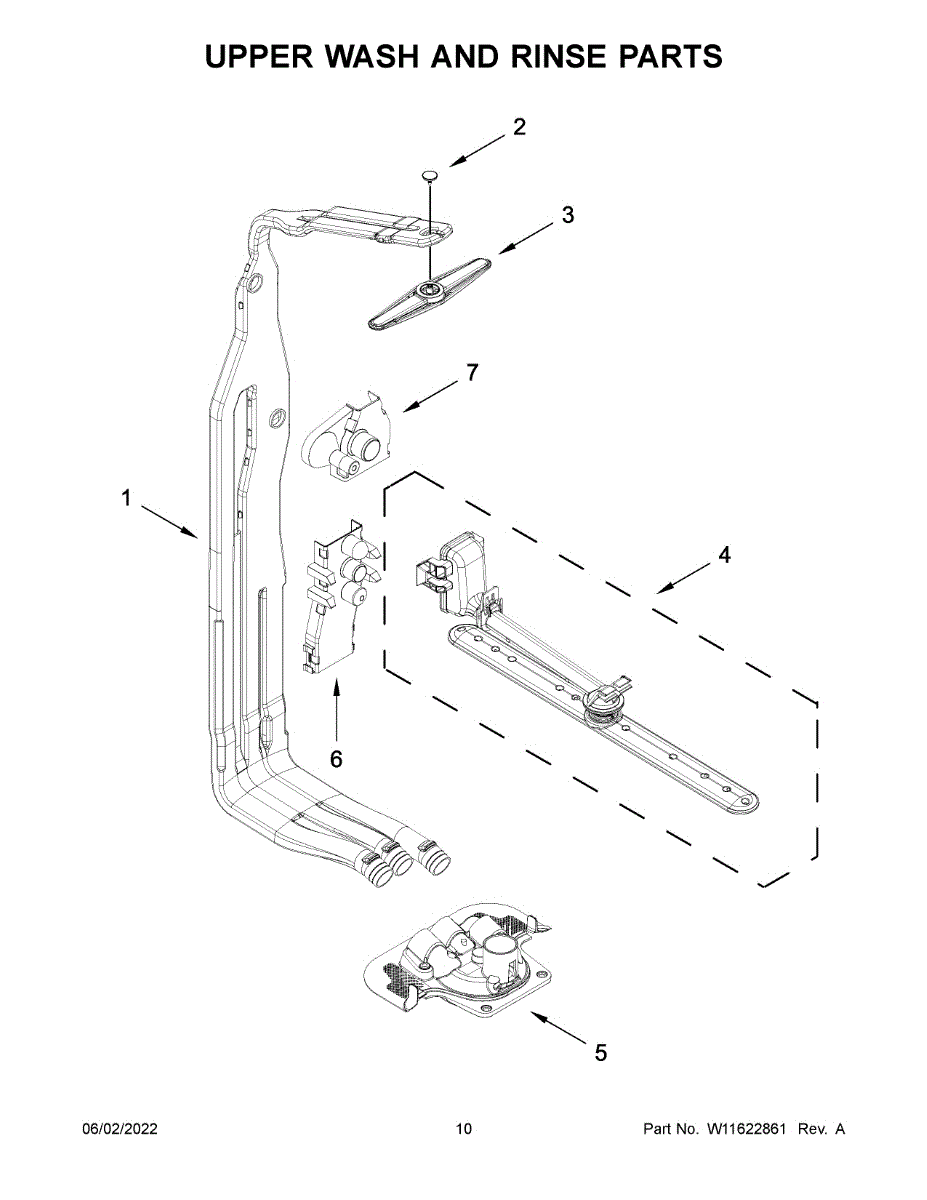

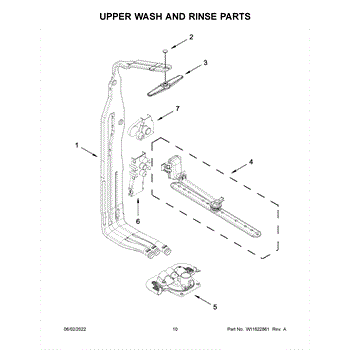

Parts for Kitchenaid KDFM404KBS1: Upper Wash And Rinse Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This 3-channel feedtube routes water to the appliance's dispenser/ice system to ensure proper delivery where needed. Replaces a damaged or cracked feedtube to help restore correct water flow and reduce leaks. What it does:

• Directs water through three separate channels to the ice maker/dispenser plumbing
• Prevents cross-flow between channels for reliable filling and dispensing
• A damaged tube can cause leaks, weak dispensing, or the ice maker not filling
• Fits the OEM routing to maintain correct water pressure to downstream components

• One 3-channel feedtube

• Disconnect power and shut off the water supply before servicing
• Handle carefully to avoid kinking; inspect and replace any worn seals or grommets
• Tighten connections evenly to prevent leaks; check for leaks after restoring power/water
• Use manufacturer diagrams to confirm routing and orientation during installation

Retainer pin secures the top spray arm underneath the dishwasher's interior roof panel. Replace if cracked, broken, deformed, or missing from wear.

Upper rack spray arm that rotates to distribute water across dishes during wash cycles. Replace if cracked, broken, or worn from constant motion.

Top rack not cleaning? This water diverter directs wash water to the upper spray arm, restoring proper distribution and spray coverage for thorough cleaning.

Mounting clip that secures internal dishwasher components and trim panels in place. Replace if cracked, broken, or missing to restore proper fit.

Secure dishwasher mounting clip retainer holds components, brackets, and panels in place. Replace if broken, cracked, or missing to restore proper fit.
