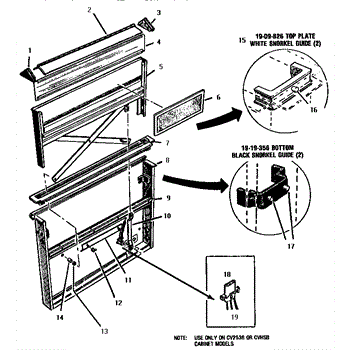

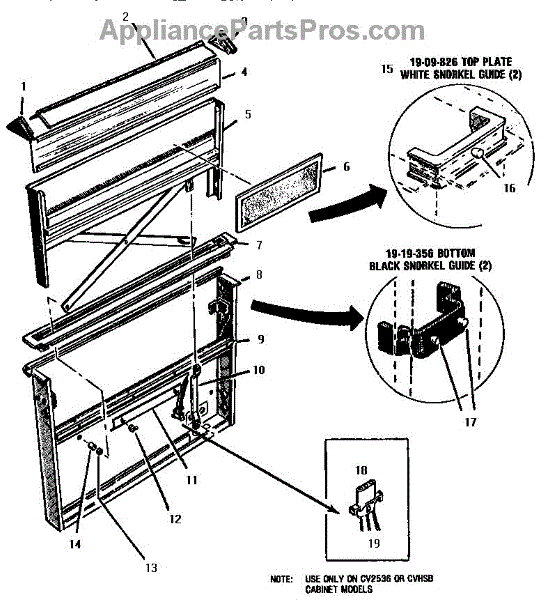

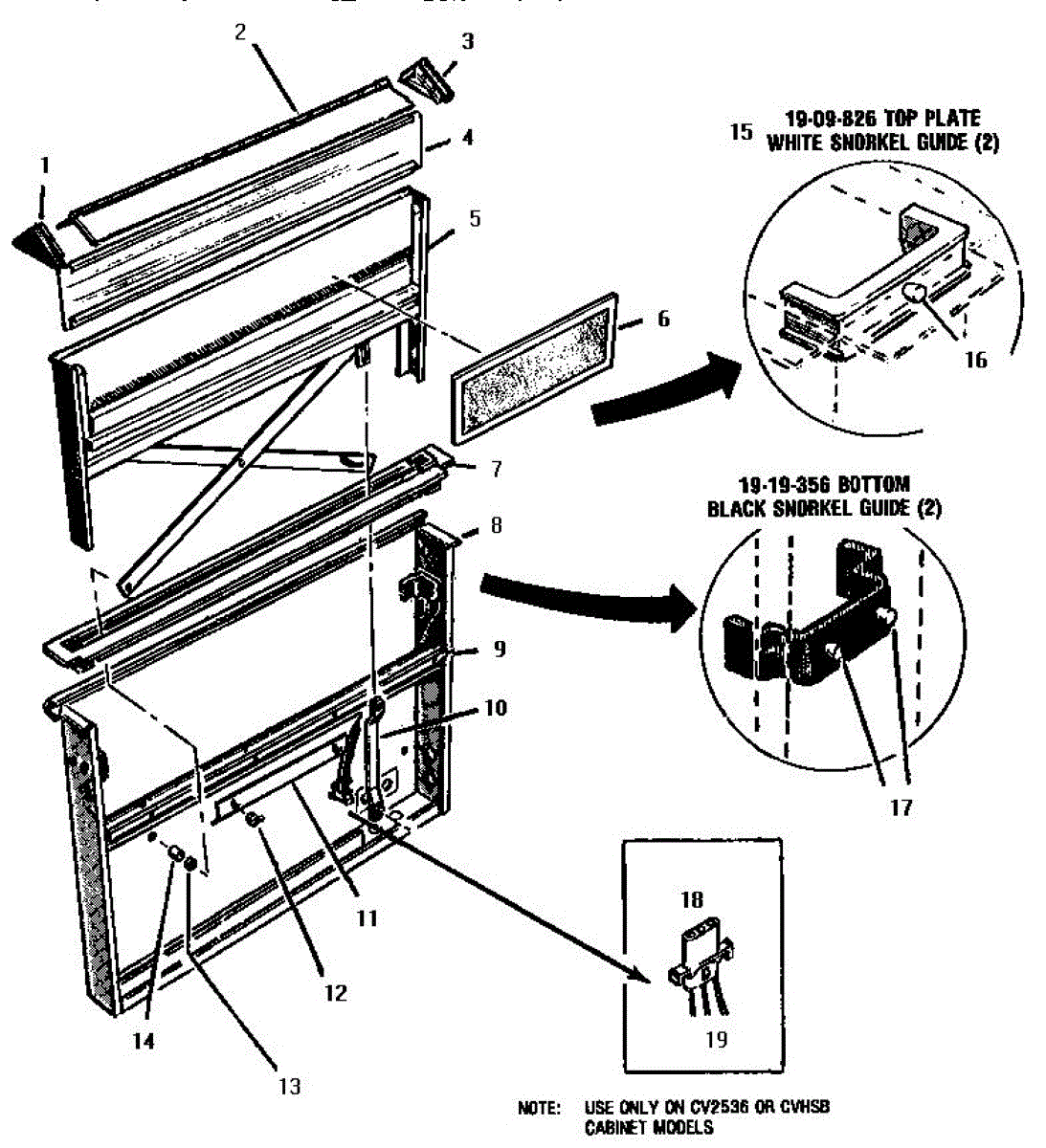

Parts for Thermador C30: Cv 2230 Ventilator Intake Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This is a #8-32 x 1/4-inch pan-head screw with red zinc finish used to secure appliance panels and small components. It replaces deteriorated or missing fasteners to restore proper fit and reduce rattling or loose parts. What it does:

• Fastens trim, panels, brackets, and small assemblies where a #8-32 x 1/4 pan-head screw is specified
• Provides corrosion-resistant holding with a red zinc finish for long-term fit
• Stops loose or vibrating panels and helps maintain proper alignment
• Matches OEM thread size and head style for correct seating in threaded holes

• Screw

• Disconnect power to the appliance before servicing to avoid electrical hazards
• Use a #1 Phillips driver sized to the screw head; apply steady pressure to prevent cam-out
• Tighten until snug—do not over-torque to avoid stripping threads or damaging parts
• If threads are damaged, replace the mating insert or stud per manufacturer guidance

This part has been discontinued by the manufacturer and is no longer available.

Flat steel washer for cooktop assembly. Installs between mounting hardware to prevent surface damage. Replace if missing, worn, or corroded.

Captures grease and cooking vapors to keep air fresh and prevent buildup. Replace when clogged or discolored. Verify fit by model number and dimensions.

This part has been discontinued by the manufacturer and is no longer available.

Snorkel guide for cooktop ventilation systems. Directs airflow through the downdraft vent assembly. Replace if cracked, broken, or missing.

Aluminum pop rivet for cooktop assembly. Secures panels and components. Replace if missing, stripped, or damaged during disassembly or maintenance.

This is a container or retainer component used in a range hood assembly. It holds or secures internal parts such as a grease collection cup or mounting hardware in the proper position. Replace this part if it is cracked, broken, or missing, which can cause loose components or improper fit of related hood parts.

Razor blade with cooktop cleaner

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
