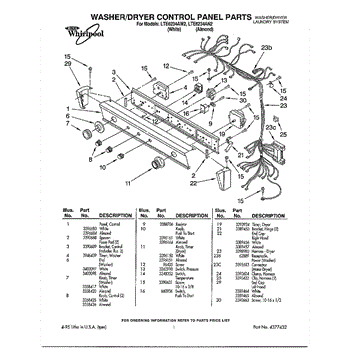

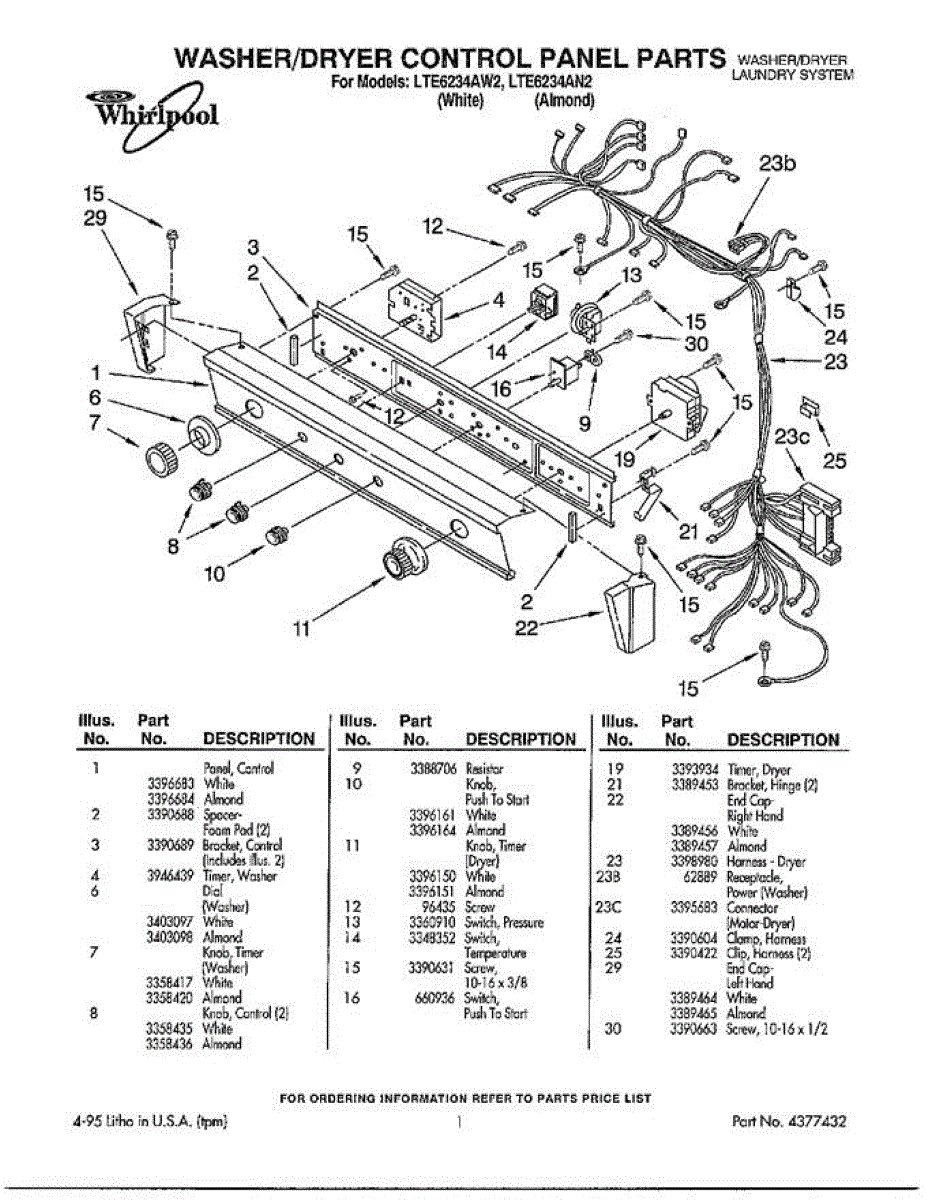

Parts for Whirlpool LTE6243AN2: Washer / Dryer Control Panel Parts

The Timer is an OEM replacement part for Whirlpool washers. This electronic part is essential for accurately tracking washing cycles and automatically shutting off the washer at the end of the selected time period.

Symptoms of a bad timer include:

• Cycles failing to complete fully and the washer not turning off automatically
• Inaccurate timekeeping causing under or over-washing of clothes
• The dial not rotating smoothly between settings or options

Causes of a bad timer can include normal wear over years of use. The internal timekeeping components can degrade or fail due to repeated power cycling of the washer.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This fixed-value resistor is an electrical component used in select dryers to limit current in a specific control circuit. It helps the timer or electronic control operate correctly by dropping voltage to safe, design-intended levels.

• Provides precise resistance to reduce voltage/current in the designated dryer circuit
• Supports proper operation of the timer, control board, or end-of-cycle signal (varies by model)
• Failure may present as a timer that won't advance, an inoperative signal/buzzer, or irregular cycle behavior
• Replace if visibly burned/damaged or if testing shows an open or shorted condition

• Disconnect power to the appliance before servicing
• Access the console/wiring harness and note original wire routing
• Make secure, insulated connections and route the resistor/leads exactly as original to avoid heat or chafing
• After installation, run a test cycle to ensure proper operation of the affected function

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

10 - 16 x 1/2

The Timer is an OEM part for Whirlpool dryers. This component is crucial for controlling the various cycles of the dryer, such as drying time and heat settings. It ensures that the dryer operates according to the selected cycle, providing efficient and effective drying performance.

Causes of a bad timer can include electrical issues, worn-out internal mechanisms, or exposure to high heat over extended periods. Additionally, repeated use can lead to the degradation of the timer's components.

Symptoms of a bad timer include:

• The dryer not advancing through cycles
• The timer not keeping accurate time
• The dryer stopping mid-cycle
• Unusual noises coming from the timer mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hinge bracket secures a refrigerator door hinge to the cabinet, restoring proper door alignment and support so the door seals and closes reliably. Designed to replace a worn, bent, or broken hinge mounting bracket. What it does:

• Provides a stable mounting point for the door hinge assembly to prevent sagging or drooping
• Restores correct door alignment to improve sealing and reduce cold air loss
• Stops excess movement or rattling at the hinge area
• Helps eliminate door-binding or uneven gaps that keep the door from closing fully

• Unplug the appliance and remove food/items from the door before starting
• Support the door while removing/installing the bracket to avoid damage or injury
• Reuse or replace fasteners as required; tighten securely but avoid over-torquing
• After installation, check door alignment and gasket seal; make minor adjustments as needed

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Used for lid switch.

Specs: 10-16 x 1/2 inch.
