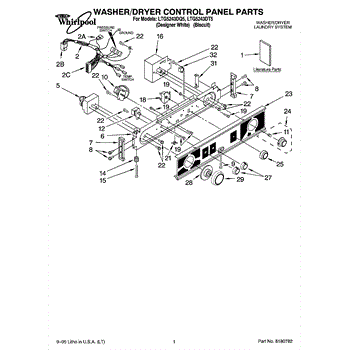

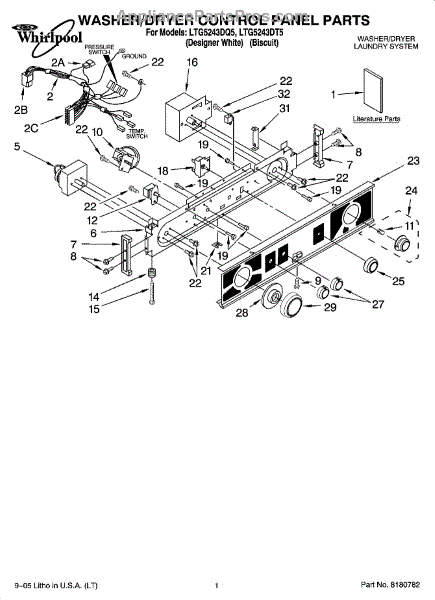

Parts for Whirlpool LTG5243DT5: 01 - Washer / Dryer Control Panel Parts

This console wire harness connects the control panel to the appliance's main wiring, restoring reliable signal and power paths so buttons, lights, and electronic controls work correctly. What it does:

• Supplies power and signal connections between the control console and the main harness
• Re-establishes button, display, and selector communication for normal operation
• Can resolve symptoms such as unresponsive buttons, intermittent control behavior, or a blank console
• Replaces damaged, frayed, or corroded wiring that causes erratic electronics

• One console wire harness

• Disconnect power to the appliance before starting any work
• Label or photo-document connector locations before removal to ensure correct reassembly
• Disconnect connectors by releasing locking tabs; avoid pulling on wires
• Route harness along original clips and channels; secure all connectors and strain reliefs

The Timer is an OEM replacement part for Whirlpool washers. It is an electronic component that controls the duration of each wash cycle. The timer is located behind the control panel of the washer.

Causes of a faulty timer can include stripped internal gears or disconnected wiring terminals from use over the years.

Symptoms of a bad timer include:

• Inability to start or stop cycles at the correct times
• Unexpected shutoff or prolonged run times
• Failure to load, wash, rinse, or spin functions

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 3/4 inch.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

This is the washer's water level pressure switch. It senses the tub's water level and tells the control when to start/stop filling and when to advance the cycle. Replacing a failing switch restores accurate fill levels and reliable cycle progression. What it does:

• Monitors tub water level via air pressure through the attached hose
• Opens/closes the inlet valve circuit to stop or start water fill
• Signals the timer/control to advance to wash, rinse, and spin at the correct level
• Common failure symptoms: overfilling or won't stop filling, won't fill, cycle won't advance, or won't agitate/spin

• 1 water level pressure switch

• Disconnect power and shut off water before servicing
• Lift/remove the control console to access the switch
• Label and transfer wires; move the pressure (air dome) hose to the new switch and ensure a snug, unkinked connection
• Inspect the hose for cracks, kinks, blockages, or water inside; reassemble and run a test fill to operation

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This water temperature selector switch lets the washer choose the correct fill temperature during cycles, restoring user control over cold, warm and hot fills. Use it to replace a worn or unresponsive temperature control switch. What it does:

• Selects the washer's water temperature setting so the machine fills with the requested temperature range.
• Sends the temperature-selection signal to the control and inlet valve system.
• Common symptom fix: temperature setting won't change or the washer always fills with the same temperature.
• Helps resolve erratic temperature selection or a loose/non-responsive temperature dial.

• Disconnect power and turn off water supply before starting work.
• Access requires removing the control console or selector knob—retain hardware for reassembly.
• Avoid touching electrical terminals; ensure connections are secure and oriented as removed.

This is the replacement spring used in the console lock assembly to restore proper tension and movement in the control lock mechanism. It helps the lock return to its resting position so the console control operates correctly. What it does:

• Provides tension for the console/keyboard lock mechanism so buttons and switches return properly
• Restores correct movement of the lock actuator to engage and release the console lock
• Can resolve symptoms such as a stuck or unresponsive console lock or buttons that don't spring back
• Small part that is part of the overall console lock assembly function

• One spring for the console lock assembly

• Disconnect power (unplug or trip breaker) before servicing the appliance
• Access requires removing the console or control panel—keep track of screws and orientation
• Handle carefully; small spring can be difficult to seat, consider using needle-nose pliers or a magnetic pickup tool

This console lock screw secures the appliance control console or console lock assembly to the cabinet, keeping controls fastened and aligned for reliable operation. Simple replacement for loose or missing console hardware. What it does:

• Fastens the console/console lock assembly to the appliance cabinet or control housing
• Restores a secure, rattle-free console and proper panel alignment
• Used when a screw is missing, stripped, or damaged and the console feels loose
• Small hardware solution that prevents further wear to console trim and components

• Disconnect power to the appliance before beginning any repair to avoid electrical shock
• Use the correct screwdriver or driver bit to avoid stripping the screw head
• Thread the screw in carefully and snug—do not over-tighten to prevent damage to threads or plastic parts
• Inspect the mounting hole and replace or repair as needed before installing

This 4-cycle dryer timer controls the sequence and duration of your drying programs. Replace it to restore proper cycle advance and automatic shut-off when the unit stalls mid-cycle or runs past the set time.

• Sequences power to the motor and heater based on the selected program
• Advances the cycle and turns the dryer off at the end of the set time
• Supports timed drying and cool-down functions
• Common symptoms of a failing timer: cycle won't advance, runs too long/short, or won't shut off at end

• Disconnect power; for gas models, shut off gas supply
• Access the control console; remove the knob and rear panel as needed
• Transfer wires one at a time to matching terminals;
• Secure the timer, reassemble the console, and test all cycles

The Push to Start Switch is an OEM part for Whirlpool dryers. It is responsible for initiating the drying cycle when pressed, sending an electrical signal to start the dryer.

You should replace this push to start switch if it becomes defective. Causes of a bad switch can include electrical failures, physical damage from repeated use, or internal wear over time.

Symptoms of a bad push to start switch include:

• The dryer not starting when the button is pressed
• The need to press the button multiple times to start the dryer
• No response or clicking sound when the button is pressed

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For square top push to start switch, use part number W10156101.

This console clip secures the appliance control console or control panel to the cabinet, restoring a snug, stable fit and stopping rattles or loose movement. Durable plastic clip designed to replace a broken or worn fastener. What it does:

• Holds the control console in place to prevent sagging or separation from the cabinet
• Stops rattling or vibration noise caused by a loose console
• Restores proper alignment for buttons and switches on the control panel
• Replaces a cracked, worn, or missing mounting clip

• One console mounting clip (1 each)

• Disconnect power before attempting any service to avoid shock or injury
• Remove the console or access panel per your model's service instructions to reach the clip
• Pry out the damaged clip carefully and snap the new clip into the factory mounting boss until it seats
• Handle plastic parts gently to avoid cracking; before reassembling

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This replacement timer knob and dial restores easy control of your appliance's timer and settings while matching biscotti/biscuit finishes. It provides a simple, direct way to replace a worn, broken or missing timer control. What it does:

• Replaces a cracked, stripped or missing timer knob and the attached dial for clear settings
• Restores positive engagement so the timer turns and clicks into set positions
• Improves legibility of timer markings for accurate selection
• Helps stop slipping or intermittent timer contacts caused by a damaged knob

• Disconnect power to the appliance before starting any repair
• Remove the old knob by pulling straight off the control shaft; inspect shaft splines for damage
• Align the dial and push the new knob onto the control shaft until fully seated—do not force or hammer

This replacement timer knob lets you set and turn the dryer's cycle timer smoothly and reliably, restoring easy selection of drying times and cycle settings. Designed as the correct white knob assembly for compatible Whirlpool dryers. What it does:

• Fits onto the dryer timer shaft so you can rotate and select drying cycles and times.
• Replaces a cracked, stripped, loose or missing timer knob that prevents proper control.
• Provides a secure, tactile grip for accurate setting changes.
• Matches the original White finish for a clean, factory look.

• Disconnect the dryer from power before servicing.
• Most knobs pull straight off the timer shaft; align splines and press the replacement fully into place.
• Inspect the shaft and any retained plastic insert; transfer insert if the replacement does not include it.
• If knob is difficult to remove, use steady, even force or a soft-padded puller to avoid damaging the control panel.

Color: White.

Color: White.

This push-to-start knob replaces a worn or broken control knob on compatible top-load washers and makes starting cycles simple again with a clean, color-matched finish. Restores tactile control for reliable cycle selection. What it does:

• Replaces a damaged or faded push-to-start knob so you can engage the washer's start function easily.
• Provides a secure grip and clear tactile feedback when pressing to start a cycle.
• Helps resolve symptoms such as a loose, cracked, or non-responsive start knob.
• Matches biscuit (light tan) control panels for a cohesive appearance.

• Disconnect power to the appliance before beginning any repair.
• Most installs are simple push-fit replacements; pull the old knob straight off and press the new knob onto the shaft until it seats.
• If knob removal is difficult, access any retaining clips or fasteners.

White

The Washer Timer Dial is an OEM replacement part for Whirlpool washers. Positioned just behind the washer timer knob, the timer dial has a gray indicator that helps the user select the appropriate cycle. It interacts with the timer to ensure the washer operates in the correct mode and duration according to the chosen cycle.

Over time, the timer dial may degrade due to regular use, excessive force during cycle selection, or accidental impact. This can lead to inaccurate cycle selection, making it hard to use the washer efficiently.

Color: White

Symptoms of a faulty Washer Timer Dial include:

• Misalignment or sticking when choosing cycles
• Difficulty accurately selecting the desired cycle
• Cracked or broken indicator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement timer knob for washers that lets you select and turn cycle settings with a secure grip. The biscuit-colored knob restores a clear pointer and firm engagement to worn, cracked, or missing controls. What it does:

• Replaces a damaged or missing timer knob so the control shaft responds when you turn the cycle selector; common symptom is a knob that spins freely or slips.
• Restores a visible pointer for accurate cycle selection when the original marker is faded or broken.
• Provides a push-on control surface that improves grip and tactile feedback for easier cycle changes.
• Matches biscuit-colored control panels for a clean, finished look.

• Disconnect power to the washer before starting any service.
• Remove the old knob by pulling it straight off the control shaft; align the replacement's index mark and push on until fully seated.

The Knob is an OEM part for Whirlpool washers. This part allows users to select and control the various wash cycles and settings by turning the knob to the desired position. It fits securely onto the washer's control shaft, providing an intuitive and reliable interface for managing the washing machine's functions.

Causes of a bad knob can include regular wear and tear, damage from repeated use, or breakage due to accidental impact.

Symptoms of a bad knob include:

• The knob not turning smoothly or becoming difficult to turn
• The knob slipping off or not staying securely on the control shaft
• Inaccurate or unresponsive cycle and setting adjustments
• Visible cracks, breaks, or wear on the knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This console lock secures the appliance control console and helps prevent accidental changes to settings. It replaces a worn or broken console latch so the control panel stays closed and functions as intended. What it does:

• Secures the control console or access panel to prevent unintended opening
• Restores a solid latch action when the existing lock is loose, broken, or missing
• Helps prevent accidental button presses or changes to selected cycles
• Fits into the control console area and engages with the console catch mechanism

• One console lock assembly

• Disconnect power to the appliance before attempting any repair
• Removal typically requires access to the control console—refer to your model-specific service manual
• Handle plastic tabs and clips carefully to avoid breakage during removal and installation

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling
