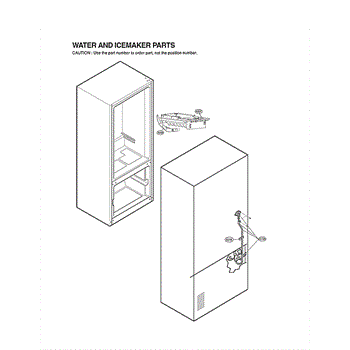

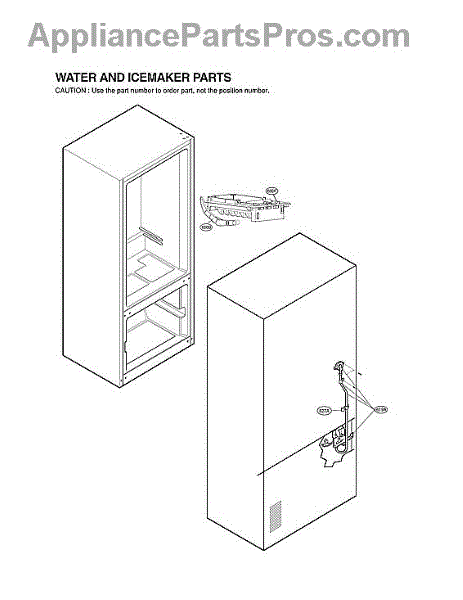

Parts for Lg LFC21776D/00: Water & Ice Maker Parts

This is a replacement screw designed to secure appliance components where the original customized fastener is required. It restores proper fit and stability for panels, brackets, or assemblies that use this specific fastener. What it does:

• Replaces a missing, stripped, or damaged customized screw to restore secure attachment of parts.
• Helps eliminate rattling, loose panels, or misaligned assemblies caused by a faulty fastener.
• Matches the OEM mounting point to maintain correct part alignment and function.
• Suitable where the appliance design calls for this specific customized screw type.

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the screw head; do not force.
• Keep track of small parts during disassembly and reassembly; work on a stable surface.
• If threads are damaged or the mounting hole is stripped, inspect the mating component for repair before installing the new screw.

This replacement customized screw secures internal panels and components to restore proper fit and reduce movement. A small but essential fastener for repairs that stop rattling and prevent loose parts from causing damage. What it does:

• Fastens panels, brackets, or trim so parts stay aligned and stable
• Stops vibration-related noise caused by loose fasteners
• Helps prevent parts from shifting or falling during operation
• Replaces stripped or missing screws to restore proper assembly

• Disconnect power before servicing the appliance to avoid shock or injury
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten until snug—do not overtighten, which can strip threads or crack components
• Inspect mating threads and replace if damaged; replace only with the exact OEM screw

A general-purpose replacement bolt used to secure appliance components and fasten panels. Restores proper fit and helps eliminate movement caused by loose or missing hardware for safer, quieter operation. What it does:

• Fastens panels, brackets, and assemblies to keep parts aligned and secure
• Stops rattling, vibration noise, and loose or shifting components
• Replaces corroded, stripped, or missing bolts that can cause misalignment
• Works where the OEM lists a generic "bolt" or common fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct driver or socket to avoid stripping the head
• Replace any associated washers or nuts if damaged; secure to proper tightness without over-torquing
• If threads are damaged, repair or replace the mating hardware to ensure a safe fit

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

Replacement drain tube assembly that directs wastewater from the appliance tub to the drain pump, restoring proper drainage and helping reduce leaks. Use when the original tube is cracked, kinked, clogged, or visibly leaking. What it does

• Channels wastewater from the tub to the drain/pump for normal draining.
• Maintains a sealed path to help prevent water leaks under or around the appliance.
• Replace when you see pooling water, slow or no drain, or visible damage to the tube.
• Works as the fluid conduit; does not include clamps or pump.

• Disconnect power and water supply before beginning any service.
• Route the tube along the original path and secure with existing clamps or the correct replacement fasteners.
• Avoid kinks, sharp bends, and contact with sharp edges to prevent leaks or premature wear.
• After installation, restore power/water and run a short drain cycle; check all connections for leaks.

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This multi duct directs airflow inside the appliance to maintain proper ventilation and operation. Replacing a damaged duct restores directed air movement and helps prevent exhaust leaks or reduced performance. What it does:

• Routes air between internal components to support heating, cooling, or venting systems
• Prevents exhaust or recirculation air from leaking into the cabinet
• Helps maintain consistent airflow for proper appliance operation
• Can reduce abnormal airflow noise when intact and correctly seated

• Disconnect power (and gas, if applicable) before beginning work
• Handle plastic/metal ducting carefully to avoid cracking or sharp edges
• Verify correct duct orientation and secure all clips or fasteners for an airtight fit

This ice bucket stores ice produced by the refrigerator's ice maker, keeping ice contained and easy to access. It replaces a cracked, missing, or damaged bin to restore proper ice storage and hygiene. What it does:

• Holds and contains ice produced by the appliance's ice maker.
• Replaces cracked, warped, or broken buckets that allow ice to spill or become contaminated.
• Useful when the ice bucket is missing, jammed, or no longer seats correctly in the freezer.
• Helps ensure clean, manageable ice for dispensing or manual access.

• Remove remaining ice and unplug the refrigerator or switch the ice maker off before replacing the bucket.
• Align the bucket with the bin guides or tracks and slide it into place until it seats securely.
• Wash the new bucket in warm, soapy water and rinse before first use; avoid abrasive cleaners or high heat.

Replacement drawer tray assembly that restores the bottom surface of a refrigerator drawer for organized storage and smooth operation. Use this part when a drawer bottom is cracked, warped, or not seating correctly to keep contents supported. What it does:

• Forms the bottom of a refrigerator drawer to support produce, packaged foods and other items.
• Replaces cracked, warped or otherwise damaged trays that can cause items to tip or spill.
• Helps drawers slide and seat properly by restoring the tray's fit and alignment.
• Restores a hygienic, easy-to-clean surface inside the drawer.

• Unplug the appliance or shut off power at the breaker before working on the refrigerator.
• Remove drawer contents and pull the drawer out; remove any retaining clips or fasteners holding the tray.
• Align the replacement tray with the drawer tracks/tabs and reattach any clips or screws; test drawer operation before returning contents.
• Use gloves to protect hands from sharp edges; for model-specific guidance.

This refrigerator shelf assembly replaces a cracked, missing or worn shelf to restore stable storage and organization inside the fresh-food compartment. The glass shelf provides a smooth, easy-to-clean surface for storing food and containers. What it does

• Supports food, containers and small appliances inside the refrigerator without sagging
• Restores proper spacing and storage after a damaged or missing shelf
• Helps contain spills on a single, wipeable surface for easier cleanup
• Fits into existing shelf tracks or supports to restore stable shelving

• One refrigerator shelf assembly

• Remove food and unplug the refrigerator or switch to a safe service mode before installing
• Support the shelf while removing or installing to avoid dropping the glass
• Follow OEM instructions for reinstalling into the shelf tracks or brackets; do not force into place
• If the shelf includes small clips or supports, keep them aligned and tightened to prevent movement

This tempered glass shelf replaces a cracked or missing interior shelf and restores stable storage space for food and containers. It provides a flat, easy-to-clean surface that sits on the refrigerator shelf supports. What it does:

• Replaces broken, chipped or missing interior refrigerator shelf glass
• Provides a stable, level surface for storing food, beverages and containers
• Helps contain spills for easier cleanup and prevents items from falling through
• Restores proper spacing and organization inside the fresh-food compartment

• Remove all food and loose items from the shelf area before installing
• Lift shelf into place, aligning the rear edge with the shelf supports and seating it gently
• Do not force the glass; check shelf supports for damage and replace supports if worn
• Handle with care—wear gloves and safety glasses when removing broken glass

This guide assembly is the sliding support that helps a drawer or rack move smoothly and stay aligned for reliable opening and closing. It restores proper travel and reduces sticking, rubbing, or uneven movement. What it does:

• Guides a drawer/rack along its track to ensure smooth, stable sliding motion
• Helps keep the drawer/rack aligned and prevents binding or skewing
• Reduces noise and rubbing caused by worn or damaged guides
• Restores proper fit and travel when original rail is cracked, bent, or worn

• Disconnect power and remove any stored items before starting work
• Remove the drawer/rack to access the rail; basic hand tools may be required
• Inspect mating slides and mounting clips; replace damaged fasteners for best fit
• Test travel after installation; adjust alignment if the drawer binds or skips

This fresh room tray assembly replaces the removable crisper tray that holds produce and deli items in the refrigerator's fresh room, helping contain spills and support proper storage. What it does:

• Provides a stable, removable surface for fruits, vegetables and deli items in the fresh room
• Helps contain small spills and crumbs for easier cleanup
• Restores proper fit and support for drawers or keep-fresh accessories that sit above or below the tray
• Useful when the original tray is cracked, warped or missing

• Tray assembly (single)

• No special tools typically required; tray drops into place or slides onto rails
• Remove food and drawers from the fresh room before installing to avoid spills or injury
• Inspect surrounding rails and seals for damage; replace if worn to ensure proper operation

This guide rail is the sliding track that supports and guides a freezer or refrigerator drawer for smooth opening and closing. Replacing a worn or damaged rail restores stable movement and proper drawer alignment. What it does:

• Provides a stable track for the drawer to slide in and out smoothly
• Prevents drawer sagging, sticking, or misalignment during use
• Reduces scraping, grinding, or noisy movement from a damaged rail
• Helps the drawer fully seat and latch properly when closed

• One guide rail as shown

• Disconnect power to the appliance before servicing to avoid shock
• Remove the drawer per the appliance manual to access the rail assembly
• Inspect mounting clips and screws; reuse only parts that are undamaged
• Align the rail fully and secure fasteners; test drawer motion before returning to service

This guide assembly supports and guides a sliding drawer or compartment for smooth, aligned movement. Replacing a worn or damaged guide restores proper opening and closing and reduces sticking or misalignment. What it does:

• Provides a stable track for drawer or compartment movement
• Keeps the drawer aligned to prevent sticking, scraping, or uneven travel
• Reduces noise and wobble during opening and closing
• Restores reliable operation when original guide is bent, cracked, or worn

• One guide assembly as shown

• Disconnect power and remove stored items from the drawer/compartment before starting
• Use basic hand tools; follow OEM instructions for any fastener removal and reattachment
• Inspect mating slides and mounting points; replace any damaged hardware for best fit

This lamp cover is the replacement light lens that protects and diffuses the refrigerator's interior lamp, restoring even illumination and preventing direct bulb contact. Fits the original mounting for a clean, finished appearance. What it does:

• Protects the interior lamp from spills, splashes, and incidental contact
• Diffuses light for more even interior illumination
• Helps prevent direct exposure to the lamp bulb
• Restores a damaged, cracked, or yellowed lens to improve visibility

• One lamp cover / light lens

• Turn off power or unplug the appliance before replacing the lamp cover to avoid electric shock
• Handle the cover carefully to avoid cracking; use a soft cloth to seat into mounting tabs
• Remove and retain any fasteners or clips from the old cover for reinstallation if applicable
• Replace the bulb before seating the new cover

This roller assembly supports the dryer drum and helps it turn smoothly for even drying and quieter operation. Replace worn rollers to restore steady drum rotation and reduce rubbing or thumping noises. What it does

• Supports and guides the dryer drum to keep it centered during rotation
• Reduces friction and wear on the drum shaft and cabinet
• Helps prevent loud squeaks, thumping, or uneven drum movement
• Works with the drive belt and other suspension parts for reliable drum operation

• Disconnect power before starting any repairs to avoid shock or injury
• Removing the dryer front or rear panel may be required for access
• Inspect other rollers, axle/bushings, and the drive belt while replacing this part

This guide assembly supports and guides freezer/refrigerator drawers for smooth opening and closing. It replaces worn or damaged rails to restore proper drawer alignment and reduce sticking or uneven movement. What it does:

• Guides the drawer along its track to keep it level and stable during use
• Restores smooth, consistent drawer travel when original rails are bent, cracked, or worn
• Helps prevent drawer binding, catching, or premature wear on slide components
• Works as a direct-fit replacement for the factory guide/rail on compatible units

• Keep power off and remove food from drawers before starting work
• Use basic hand tools; inspect surrounding slides and fasteners and replace any damaged hardware

A replacement rail guide assembly that restores smooth, aligned drawer movement and support. Fits the refrigerator drawer slide system to reduce sticking, sagging, or uneven operation for safer access and proper cycling. What it does:

• Guides and supports a refrigerator drawer along its slide track for stable opening and closing
• Helps prevent the drawer from binding, tilting, or falling out of alignment
• Reduces scraping, grinding, or noisy operation caused by a worn guide
• Restores proper drawer travel and load support for daily use

• Disconnect power to the appliance before inspection or repair to avoid electrical hazards.
• Basic tools are usually required; remove the drawer to access the rail guide assembly.
• Verify left/right orientation before fastening; do not force parts into place.
• If screws or mounting clips are damaged, replace them to ensure secure installation.

Restore a tight seal on your freezer by replacing a worn gasket. A fresh, pliable gasket keeps cold air in, limits frost and moisture around the door, and helps your freezer maintain stable, food-safe temperatures.

• Creates the air-tight seal between the freezer door and cabinet frame
• Helps maintain correct freezer temperature and energy efficiency
• Reduces frost/ice buildup and condensation near the door opening
• Symptoms include tears, warping, gaps, excessive frost, or the door not closing flush

• Disconnect power before servicing
• Warm the gasket in hot tap water or with low heat to improve flexibility
• Clean and dry the door channel; press the gasket fully into the retainer, starting at the corners
• Close the door and check the seal all around; adjust as needed and allow time for the gasket to conform

This Hinge Cover Assembly protects and conceals the door hinge area, restoring a clean appearance and preventing dirt or loose clothing from catching in the hinge. Fits where a cosmetic or protective hinge cover is needed. What it does:

• Covers the door hinge to shield moving hardware from debris and reduce pinching hazards
• Restores a finished look to a damaged or missing hinge area
• Helps keep lint, dust and small objects away from the hinge mechanism
• Can reduce noise caused by exposed hinge components when intact

• One Hinge Cover Assembly as shown

• Intended for drop-in replacement; follow your appliance's service manual for disassembly steps
• Disconnect power and water before starting any repair
• Handle plastic parts carefully to avoid cracking; use appropriate fasteners and torque per OEM guidance
• If hinge or mounting hardware is damaged, replace those components before installing the cover

This hinge cover is a cosmetic trim piece that protects and conceals the door hinge area, restoring a finished look and preventing debris buildup. It helps keep the hinge mechanism covered for safer operation and appearance. What it does:

• Covers and protects the door hinge assembly from dirt and accidental contact
• Restores the appliance's finished appearance when original cover is cracked or missing
• Helps reduce snagging on clothing or linens near the hinge area
• Commonly replaced when hinge cover is visibly broken, loose, or missing

• One hinge cover

• Disconnect power and follow manufacturer safety guidelines before starting any repair
• You may need to open or partially remove the door to access the hinge cover; support the door to avoid stress on the hinge
• Use appropriate hand tools (screwdriver, trim tools) and avoid forcing the cover into place
• If the hinge or mounting hardware is damaged, replace those parts separately; only the hinge cover is included

This handle assembly replaces a damaged or worn freezer door handle to restore secure opening and a finished exterior look. It provides the grip and mounting points needed for normal freezer door operation. What it does:

• Replaces the freezer door handle, restoring a secure, ergonomic grip
• Re-establishes correct mounting and alignment for smooth opening and closing
• Helps prevent further cabinet or door edge wear from a broken handle
• Suitable when the existing handle is cracked, loose, or missing mounting hardware

• One freezer door handle assembly

• Basic tools typically required
• Follow manufacturer instructions and support materials for safe removal/installation
• Disconnect power and empty door storage as needed to avoid damage or injury
• Keep small fasteners and clips organized during replacement to ensure proper reassembly

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

Left side

The Door Gasket Assembly is an OEM part for LG refrigerators. This part creates a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping.

Causes of a bad door gasket assembly can include regular wear and tear, damage from frequent door openings and closings, or exposure to temperature fluctuations that degrade the material.

Symptoms of a bad door gasket assembly include:

• Visible cracks, tears, or deformities in the gasket
• The refrigerator door not closing properly
• Increased condensation or frost buildup inside the refrigerator
• Higher energy bills due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with some Kenmore models.

The Mullion Flipper Assembly is an OEM part for LG refrigerators. This assembly, located between the refrigerator doors, helps seal the space between the doors when they are closed, improving energy efficiency by preventing cold air from escaping.

Causes of a bad mullion flipper assembly can include wear and tear over time, damage from frequent opening and closing of the doors, or issues with the hinges and connectors that secure it in place. A damaged or malfunctioning mullion flipper can lead to temperature inconsistencies and increased energy usage.

Symptoms of a bad mullion flipper assembly include:

• Visible damage or wear on the assembly
• Cold air escaping from between the refrigerator doors
• Increased frost buildup inside the refrigerator
• Higher energy bills due to the appliance working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

Replacement drawer tray assembly that restores the bottom surface of a refrigerator drawer for organized storage and smooth operation. Use this part when a drawer bottom is cracked, warped, or not seating correctly to keep contents supported. What it does:

• Forms the bottom of a refrigerator drawer to support produce, packaged foods and other items.
• Replaces cracked, warped or otherwise damaged trays that can cause items to tip or spill.
• Helps drawers slide and seat properly by restoring the tray's fit and alignment.
• Restores a hygienic, easy-to-clean surface inside the drawer.

• Unplug the appliance or shut off power at the breaker before working on the refrigerator.
• Remove drawer contents and pull the drawer out; remove any retaining clips or fasteners holding the tray.
• Align the replacement tray with the drawer tracks/tabs and reattach any clips or screws; test drawer operation before returning contents.
• Use gloves to protect hands from sharp edges; for model-specific guidance.

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

The Refrigerator Door Shelf is an OEM component for LG refrigerators. It provides useful storage space directly on the refrigerator door. This shelf's wire construction allows for versatile item organization while occupying minimal space.

Causes of a bad door shelf can include warping or cracks due to temperature fluctuations over time. Improper cleaning can also damage shelf surfaces.

Symptoms of a failed door shelf include:

• Gaps or separation where the shelf meets the door
• Loss of integrity making the shelf unable to securely hold items

This genuine LG shelf  is compatible with LG and Kenmore French door, side-by-side, and bottom-freezer refrigerator models utilizing a similar door shelf design.

The Refrigerator Door Shelf is an OEM part for LG refrigerators. This component is designed to fit snugly into the door of the refrigerator, providing convenient storage space for frequently accessed items such as drinks, condiments, and snacks. The shelf measures about 15 inches wide, 3 inches high, and 8 inches deep, providing plenty of storage space.

Symptoms of a failing Refrigerator Door Shelf include:

• The shelf becoming loose or failing to hold items securely
• Cracks or breaks in the shelf, which compromise its load-bearing capacity
• Sagging or bending of the shelf, particularly when loaded with heavier items
• Difficulty in fitting the shelf into its designated slots on the refrigerator door

Causes of a bad door shelf can include overloading beyond its weight capacity, frequent adjustment or removal of the shelf, or material fatigue from regular use and exposure to temperature variations within the refrigerator.

This OEM LG part is also compatible with Sears/Kenmore models.

This stopper assembly cushions and limits the door travel to prevent slamming and ensure correct door alignment. It restores smooth, controlled closing and helps reduce noise and wear on the door hinge area. What it does:

• Absorbs door impact to prevent hard slams and reduce noise
• Keeps the door from overtravel for consistent alignment
• Helps protect hinge and cabinet edges from damage
• Restores proper door closing feel when worn or broken

• One stopper assembly as shown

• Disconnect power and empty door area before starting repairs
• Access may require removing door trim or inner panel
• Use basic hand tools; avoid forcing the part into place to prevent damage

This hinge cam fits the door hinge and provides the lift/settle action that helps the door open and close smoothly. Replacing a worn cam can reduce clicking and restore consistent door movement and alignment.

• Provides cam action at the hinge for smooth door travel
• Helps the door seat closed and maintain alignment
• Common symptoms include clicking/knocking at the hinge, rough or uneven door movement, or slight door sag
• Visual wear such as flat spots or grooves on the cam is a typical failure sign

• Disconnect power to the appliance before servicing
• Support the door to prevent injury; remove hinge cover and hardware as needed
• Note the cam's orientation and any washers/spacers and transfer them to the new part
• After installation, verify door operation and gasket alignment; adjust hinge if needed

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

This refrigerator door handle restores a secure, comfortable grip and a clean, factory look. Replace a loose, cracked, or broken handle to improve daily usability and keep the door operating smoothly.

• Provides the handhold to open and close the refrigerator door
• Attaches to the door's factory mounting studs/brackets for a solid feel
• Helps maintain exterior appearance and ergonomics
• Common symptoms: handle feels loose or wobbly, cracks, breaks, or goes missing

• Unplug the refrigerator before servicing
• Protect the door finish with tape or a cloth around mounting points
• Align the handle on existing studs/brackets and tighten fasteners per your model's instructions; do not overtighten
• Confirm the handle is secure and the door closes and seals properly

This slide rail replaces a damaged or worn drawer support to restore smooth opening and closing of the appliance drawer. It provides a stable guide that helps the drawer track properly and reduces sticking or uneven movement. What it does:

• Guides the drawer along its track for smooth, controlled motion
• Prevents drawer sagging and binding caused by worn or bent rails
• Helps maintain proper alignment so the drawer opens and closes evenly
• Commonly replaced when drawers feel loose, jam, or pull unevenly

• One replacement slide rail

• Turn off power and remove contents from the drawer before starting work
• Remove the drawer per the appliance service instructions to access the rail
• Compare the new rail to the old part to ensure correct orientation and fit
• Use proper hand tools; avoid forcing parts to prevent damage to surrounding components

This connector assembly is the factory-style electrical connector used to restore a secure plug-and-socket connection inside the appliance, helping eliminate intermittent power or signal issues and return reliable operation. What it does

• Replaces a damaged or corroded electrical connector to restore a solid connection
• Carries power and/or control signals between components so circuits can operate normally
• Helps resolve symptoms such as intermittent operation, components not powering on, or error codes tied to poor connections
• Works where a worn, broken, or loose connector is identified as the failure point

• Unplug the appliance and disconnect power before beginning any work
• Match connector shape and pin count before disconnecting; gently release locking tabs to avoid damage
• Inspect mating terminals and wiring for damage; repair or replace damaged wiring as needed

This replacement slide rail restores smooth movement and stable support for a dishwasher rack, helping the rack glide in and out without binding. It addresses worn or broken rack guides that can cause noisy or uneven rack movement. What it does

• Guides and supports the dishwasher rack for consistent, level sliding
• Replaces a cracked, bent, or worn rail that causes the rack to stick or derail
• Reduces noise and friction during rack travel for easier loading and unloading
• Helps maintain proper rack alignment so dishes load and wash evenly

• Basic hand tools typically required; disconnect power and water to the appliance before starting
• Remove the affected rack and any clips or stops to access the old rail
• Compare the new rail to the old part for orientation and mounting locations before installing
• If fasteners or clips look damaged, replace them as needed; test rack movement after installation

The Cap Cover is an OEM part for LG refrigerators. This cover is designed to protect and secure various components within the refrigerator, such as the water filter or other internal mechanisms. Its role is to ensure that these components are shielded from debris, moisture, and potential damage, maintaining the overall efficiency and cleanliness of the appliance.

Causes of a bad cap cover can include wear and tear over time, cracks or breaks from accidental impacts, or warping due to exposure to temperature fluctuations. Misalignment or improper installation can also contribute to the cap cover becoming damaged or ineffective.

Symptoms of a bad cap cover include:

• Loose or missing cover
• Visible cracks or damage on the cover
• Debris or moisture accumulating in areas meant to be protected
• Misalignment or difficulty in securing the cover properly

This OEM LG part is also compatible with Sears/Kenmore.

The Freezer Drawer Gear is an OEM part for LG refrigerators. It facilitates the smooth operation of the freezer drawer, allowing it to slide in and out effortlessly.

You should replace this gear if it becomes worn or damaged. Causes of a bad freezer drawer gear can include regular wear and tear, damage from overloading the drawer, or mechanical issues due to improper alignment or installation.

Symptoms of a bad freezer drawer gear include:

• Difficulty in opening or closing the freezer drawer
• The drawer not staying aligned or level
• Unusual noises when operating the drawer

This OEM LG part is also compatible with Sears/Kenmore.

This is a service spanner designed for appliance maintenance, giving a secure grip for loosening and tightening service fittings and retaining nuts. It helps access and remove service components safely and efficiently. What it does

• Provides the correct fit and leverage for specific appliance service fittings and retaining nuts.
• Helps free seized or over-tightened fittings that cause vibration or poor connections.
• Allows safe removal and reinstallation of components during repairs or routine maintenance.
• Reduces risk of damaging fasteners compared with improper or makeshift tools.

• Disconnect power and gas before servicing the appliance.
• Use proper hand protection and eye protection; hold the tool securely and apply steady force.
• Refer to the appliance service manual for the correct access points and torque specifications.
• Do not use as a substitute for other specialty tools unless specified by the manufacturer.

The Flapper Door Spring is an OEM part for LG refrigerators, designed for the ice dispenser's flapper door mechanism. This spring plays a role in ensuring the flapper door opens and closes properly, providing a tight seal when the ice dispenser is not in use.

Over time, the flapper door spring can lose tension or break due to fatigue or corrosion, leading to issues with the flapper door's operation.

Symptoms of a bad Flapper Door Spring include:

• The flapper door on the ice dispenser fails to close completely
• Ice or frost buildup around the dispenser area
• Difficulty dispensing ice
• Increased energy consumption as the refrigerator works harder to maintain its set temperature

This OEM LG part is also compatible with some Kenmore models.

Left side upper hinge.

Right side upper hinge.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This overload protector is a compressor safety device that helps stop compressor damage by interrupting power during electrical overload or overheating. It restores normal operation once conditions return to safe levels. What it does:

• Detects electrical overloads or excess heat at the compressor and temporarily cuts power to prevent motor damage
• Common symptom: compressor runs briefly then stops, or refrigerator cools intermittently
• Works with the compressor start system to protect against burnout and electrical faults
• Passive mechanical/electrical device—no user controls

• Disconnect power to the appliance before accessing the compressor or electrical components
• Handle terminals and mounting carefully to avoid bending or damaging connections

A PTC thermistor assembly that senses temperature and provides the control board with accurate temperature feedback to help regulate heating and cycling. Replacing a faulty thermistor restores reliable temperature monitoring for safe, consistent operation. What it does:

• Monitors temperature and sends a signal to the appliance control so heating and cycles can be adjusted.
• Helps prevent overheating by enabling proper control of the heating system.
• Common symptoms of a failing thermistor: incorrect or inconsistent temperatures, heating that won't start or won't stop, extended cycle times, or temperature-related error codes.
• Works as the OEM-designated temperature sensing/feedback component for compatible LG units.

• Disconnect power to the appliance before starting any repair.
• Handle the assembly carefully; avoid pulling on wires or connectors—replace in the same orientation.
• May require basic hand tools and access panels.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This tray assembly collects and channels defrost and condensation water to the drain, helping prevent leaks and water buildup under the appliance. Designed to fit into the drain path and route moisture away safely. What it does:

• Catches defrost and condensation runoff and directs it toward the drain
• Helps prevent pooling and water damage inside the lower cabinet area
• Supports proper evaporator/drain operation by maintaining the drain path
• Can reduce dripping or puddling symptoms when the original tray is cracked or clogged

• 1 tray assembly

• Inspect surrounding seals and drain lines before installing; replace any damaged components
• Clean drain channel and remove debris to ensure proper flow prior to installation
• Handle gently to avoid cracking plastic tabs; use basic hand tools for removal/installation
• Disconnect power to the appliance before accessing internal components to avoid injury

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This condenser assembly replaces the condenser wiring and support used in compatible refrigerators to restore proper condenser connections and airflow. It helps re-establish electrical routing and secure mounting so the cooling system can run reliably. What it does:

• Replaces damaged or corroded condenser wiring and associated mounting hardware
• Restores electrical connection between condenser components and the control circuitry
• Helps resolve symptoms such as cooling loss, intermittent compressor operation, or visible wiring damage
• Maintains proper condenser positioning for adequate airflow and heat dissipation

• Disconnect power and unplug the appliance before starting work
• Inspect surrounding components (fan, compressor, terminals) for related damage
• Use manufacturer-recommended torque and routing to avoid pinched wires

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

This magnet-activated switch is a small sensor that tells the appliance when a door or lid is open or closed. Replacing a faulty switch restores proper lighting, door-ajar alerts, and safety interlocks for normal operation.

• Senses a nearby magnet to report door/lid open/closed status to the control
• Helps control interior lights, alarms, fans, and dispenser/ice interlocks on applicable units
• Failure symptoms can include lights staying on or off, false door-ajar beeps, or dispenser/ice disabled
• Common causes: moisture intrusion, damaged leads, or stuck internal contacts

• Disconnect power before servicing
• Access the switch at the door opening (behind trim/control housing or liner, location varies by model)
• Release locking tabs/fasteners, move wiring carefully, and install the new switch in the same orientation
• Restore power and verify operation by bringing a magnet near the switch to toggle

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

Motor Bracket secures the motor assembly, keeping it aligned and reducing vibration for reliable operation. Replacing a damaged bracket restores stable motor mounting and helps reduce noise and premature motor wear. What it does:

• Secures and supports the motor to maintain correct alignment and stable operation.
• Reduces motor vibration and operational noise when properly installed.
• A cracked, bent, or broken bracket can cause increased noise, vibration, or motor misalignment.
• Use when the existing bracket is bent, damaged, or failing to hold the motor securely.

• Disconnect power to the appliance before starting any repair.
• Access may require removing the cabinet or an access panel; keep track of fasteners.
• Installation typically requires basic hand tools; avoid forcing parts into position.

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement mounting bracket that secures internal appliance components to the cabinet frame, restoring proper alignment and support for moving parts. It helps reduce vibration and prevents loose or sagging assemblies. What it does:

• Provides a stable mounting point for internal components to maintain correct positioning
• Helps stop rattling, knocking, or vibration caused by loose fittings
• Restores support for panels, assemblies, or mechanical linkages that rely on the bracket
• Useful when original bracket is bent, cracked, or otherwise damaged

• Follow manufacturer service manual for correct placement and fastener torque
• Use proper tools and retain all screws/fasteners; replace damaged fasteners as needed
• Disconnect power before accessing internal components to avoid shock or injury

The Heater Sheath is an OEM replacement part for LG refrigerators. This component is responsible for defrosting the evaporator coils, preventing frost buildup that can impair the refrigerator's cooling efficiency. The heater sheath ensures that the defrost cycle runs effectively, maintaining optimal performance and energy efficiency of the refrigerator.

Causes of a bad heater sheath can include electrical malfunctions, wear and tear over time, or damage to the heating element itself. These issues can result in the heater sheath failing to activate, leading to frost accumulation.

Symptoms of a bad Heater Sheath include:

• Frost or ice buildup on the evaporator coils
• The refrigerator or freezer section not cooling properly
• Longer defrost cycles or the refrigerator running continuously
• Water leaks inside the refrigerator from excess frost melting

This OEM LG part is also compatible with Sears/Kenmore models.

Keep your refrigerator interior bright and protected with this lamp cover — a clear/diffusing lens that shields the bulb while spreading light evenly for better visibility of stored food. What it does

• Protects the interior light bulb from contact, splashes, and accidental breakage
• Diffuses and softens the light for more even illumination inside the fridge
• Replaces cracked, yellowed, or missing lens that can cause glare or uneven lighting
• Fits the OEM mounting points for a secure, stable installation

• Disconnect power to the appliance before attempting any replacement
• Often removes by hand or with a fingertip push; have a screwdriver nearby if necessary
• Handle carefully to avoid scratching or cracking the lens during installation
• If glass fragments are present, clean out the area and wear gloves/eye protection

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

Power cord assembly that restores the appliance's connection to household mains. Replaces a damaged or worn cord to help stop power loss, sparking, or intermittent operation and restore a safe power feed. What it does:

• Provides the main electrical connection from the wall outlet to the appliance so internal components receive line voltage.
• Replaces cords with visible damage, frayed insulation, exposed wires, or broken plug prongs.
• Can resolve symptoms such as no power, intermittent power, sparks at the plug, or breaker trips caused by a faulty cord.
• Restores the original style of power connection and strain-relief routing for a secure fit.

• Always disconnect power at the wall before attempting service.
• Basic hand tools may be required; secure the cord firmly with the appliance's strain relief and tighten screws.

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

This is the main PCB power control board assembly that manages power distribution and electronic control functions for the appliance. Replacing a faulty board restores proper control operation and resolves related electronic faults. What it does

• Routes and regulates power to the appliance's control circuits and major components.
• Interprets user inputs and controls functions such as cycles, timing, and display responses.
• Common symptoms of a failing board: appliance won't power on, display is blank or shows errors, controls are unresponsive, or operation is erratic.
• May cause intermittent operation or failure to start if connectors or board components are damaged.

• Disconnect power to the appliance before removing or installing the board to avoid shock or damage.
• Handle the board by its edges and avoid touching components; use anti-static precautions where possible.
• Note connector locations and orientation before disconnecting; take photos to aid reassembly.

This lamp cover assembly protects and diffuses the interior light so the appliance illuminates evenly while shielding the bulb from spills and impact. It restores a finished look and helps keep the light working safely. What it does:

• Shields the interior light bulb from food, moisture, and accidental contact
• Diffuses light for more even illumination inside the compartment
• Prevents direct bulb exposure that can cause glare or damage
• Replaces cracked, yellowed, or missing lens that reduces light output

• Disconnect power to the appliance before servicing to avoid shock
• Handle the lens carefully to avoid scratches or cracking during install
• Typically secures with simple clips or screws; have a screwdriver handy
• Avoid touching the bulb with bare hands

This cover assembly protects and diffuses the interior lamp so the appliance is evenly lit while keeping the bulb shielded from food and debris. It restores proper lighting visibility inside the compartment. What it does:

• Protects the interior lamp from spills, impacts, and contaminants
• Diffuses light for more even illumination of the compartment
• Helps prevent direct contact with the bulb for safer operation
• Commonly replaces cracked, discolored, or missing lamp covers that reduce light output

• Disconnect power to the appliance before servicing to avoid shock
• Remove and replace the cover gently; avoid excessive force that can crack the lens
• Handle and dispose of any broken plastic safely; inspect the lamp/bulb for damage
• After installation, restore power and verify the lamp operates and the cover sits securely

This ice maker lever is the mechanical arm that controls ice production by interacting with the ice maker's on/off and level-sensing mechanism. Replacing a broken or missing lever restores proper operation and helps prevent overfilling or no-ice conditions.

• Acts as the ice maker's shut-off arm to regulate ice production
• Lowers to allow ice making; raises to stop when the bin is full
• Common symptoms: ice maker won't stop making ice, no ice when arm is stuck up, broken/missing lever, lever won't stay in position
• Helps ensure consistent, reliable ice production control

• Disconnect power and shut off water before service
• Remove the ice bin to access the ice maker; gently release the lever from its pivots/linkage
• Note lever orientation; transfer and reuse any original springs, clips, or fasteners
• Reinstall components, restore power, and verify free up/down movement of the arm

The Ice Maker Assembly is an OEM replacement part for LG refrigerators. It contains the complete ice-maker.

Causes of a bad Ice Maker Assembly can include issues with proper ice ejection, ice cube size or shape inconsistencies, decreased ice production over time, mineral or sediment buildup affecting performance, or wear and tear from extended use.

Symptoms include:

• Incomplete or inconsistent ice filling of the ice tray
• Cracked, pitted, or misshapen ice cubes
• Ice cubes not ejecting from the tray properly
• Slowed or ceased ice production

This OEM LG ice maker assembly is also compatible with some Kenmore refrigerator models.

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

This water valve assembly controls water flow into the appliance, restoring proper fill and water shutoff for reliable operation. Replaces a worn or leaking valve to help stop unwanted filling or leaking during cycles. What it does:

• Opens and closes to allow incoming water when the appliance calls for a fill
• Stops water flow when fill is complete to prevent overfilling and leaks
• Can fail in ways that cause no fill, continuous filling, slow fill, or visible leaks
• Works with the appliance's control system and inlet hoses to regulate hot/cold flow

• One water valve assembly

• Turn off power and shut off both hot and cold water supplies before starting
• Drain residual water from hoses and disconnect inlet lines carefully to avoid spills
• Replace with the same valve orientation and secure all hose fittings and electrical connectors
• After installation, restore water and power, then run a short fill cycle and check for leaks
