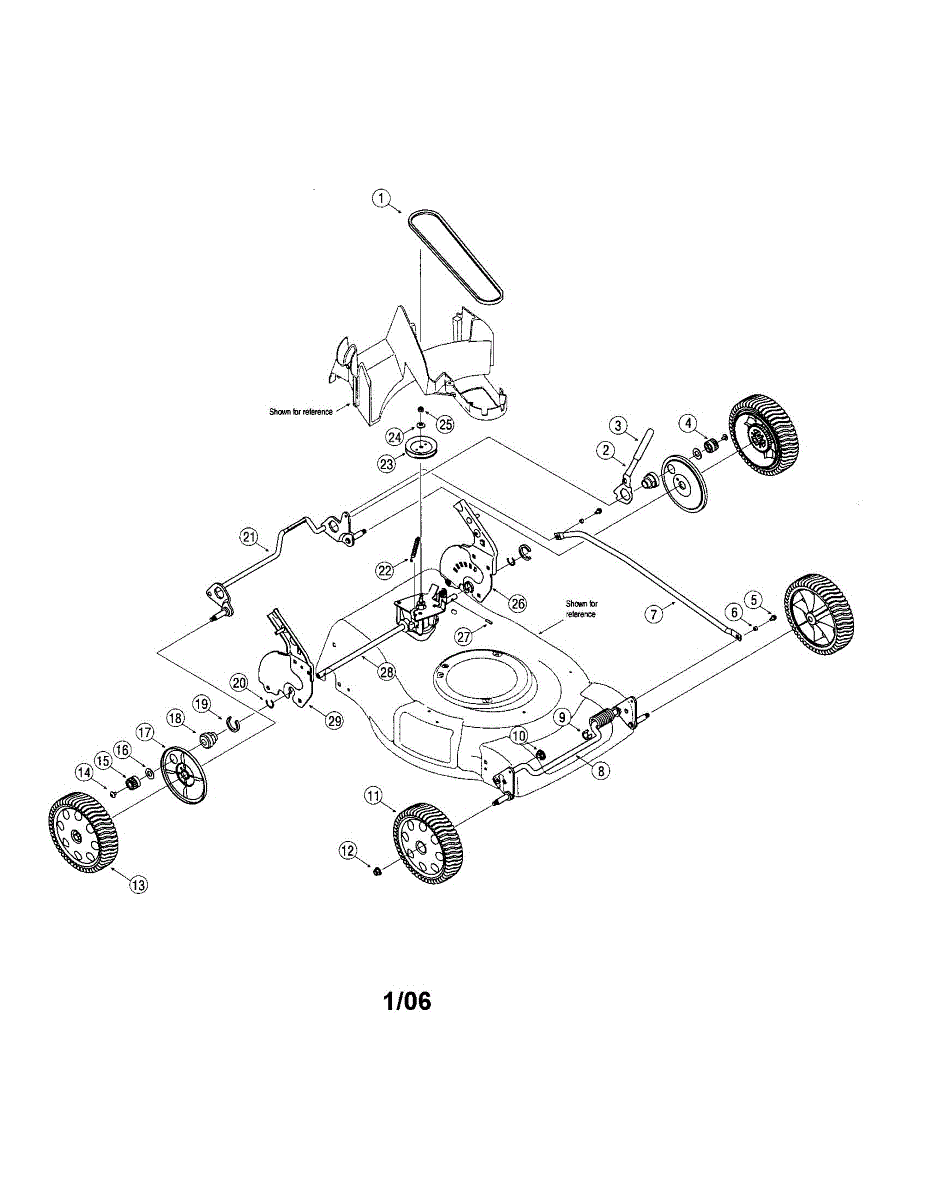

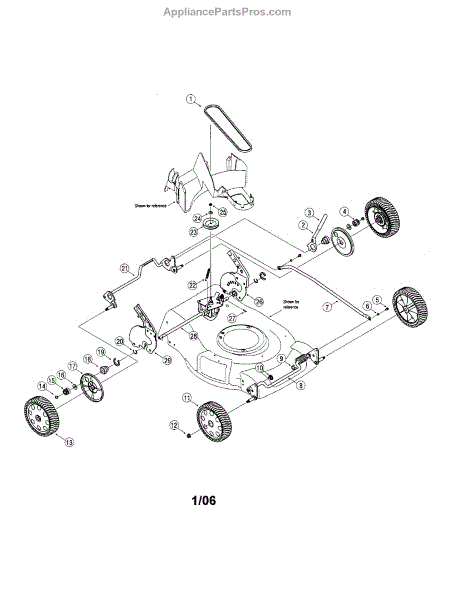

Parts for Troy-Bilt 834: Wheel Assembly Parts

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This is an authentic OEM replacement flat washer that has been sourced directly from the manufacturer. It is used with bolts and screws for fastening components on various lawn and garden equipment parts. Flat washers spread the load of the bolt or screw or are used if the hole for the fastener is larger than necessary. The washer fills in the gap, making it more secure. Washers may also be used to prevent the bolt or screw from coming in contact with the component and creating heat or friction that could damage the part. Flat washers are found underneath the head of the bolt or screw, between the fastener and the connected component. Washers may rust or break over time. These changes are visible, and a replacement washer should be installed when necessary.The tools required to remove the bolt or screw depend on what type it is. Wear work gloves when removing and replacing parts. Broken or frayed metal edges can cut. Use the appropriate tool to loosen and remove the fastener. Slide the washer off and place the new one on. Reinstall the bolt or screw and tighten. The flat washer is made of durable metal and sold as an individual component. The flat washer is compatible with chippers, shredders, lawnmowers, tractors, blowers, and other lawn and garden tools manufactured by Craftsman, Bolens, Yard Machines, Troy-Bilt, MTD, Yard-Man, and more.

A C-clip is a retaining ring with open ends that snap into place. It is commonly fitted onto a pin, shaft, or other similar components to allow for rotation but prevents the component from moving from side to side. A C-clip fits into a machined groove and acts as a shoulder that holds the part in place snugly. On a lawn mower, a C-clip retaining ring can be found on the wheel axle. It will fit into a narrow groove on the axle to prevent the washer and the wheel from moving.With repeated use, a C-clip can become worn and need replacement. Replacing a C-clip requires removing the old one and installing a new one. While replacing a C-clip is typically a quick process, it must be done with care. Their spring action can launch them when they are being removed or installed, and they are notorious for getting lost. This C-clip is an OEM part sourced directly from the manufacturer and it is sold individually. It is compatible with lawn mowers made by Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Bolens, and Yard-Man.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This dowel pin is a genuine MTD part, sold individually. This dowel pin can be used as a replacement part for a lawn mower, a tiller, or a wood chipper. The purpose of a dowel pin in one of these tools is to serve as a fastening component that affixes two different components to one another by fitting into the cylindrical hole of the dowel pin.The dowel pin can be easily lost or misplaced as it is a small component. The dowel pin can also become stripped. If this occurs, the component should be immediately replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. The operator of the appliance should be aware that this component is a genuine OEM replacement part, sourced directly from the manufacturer. It is sold individually. This dowel pin is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Bolens, MasterCut, and Yard Man.

This transmission assembly is a genuine MTD part, sold individually. This transmission assembly can be used as a replacement part for a lawn mower. The purpose of the transmission assembly is to function within the mechanism that controls the power and rotation of the wheels of the lawn mower; the drive belt powers the transmission, which in turn facilitates the rotation of the wheels.The transmission might have to be replaced if it shows clear signs of damage, either visibly or in the operation of the appliance. If the pulley is turning within the drive belt mechanism but the wheels are not rotating, it is likely that the transmission has suffered damage and will have to be replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This transmission assembly is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, and Yard-Man.
