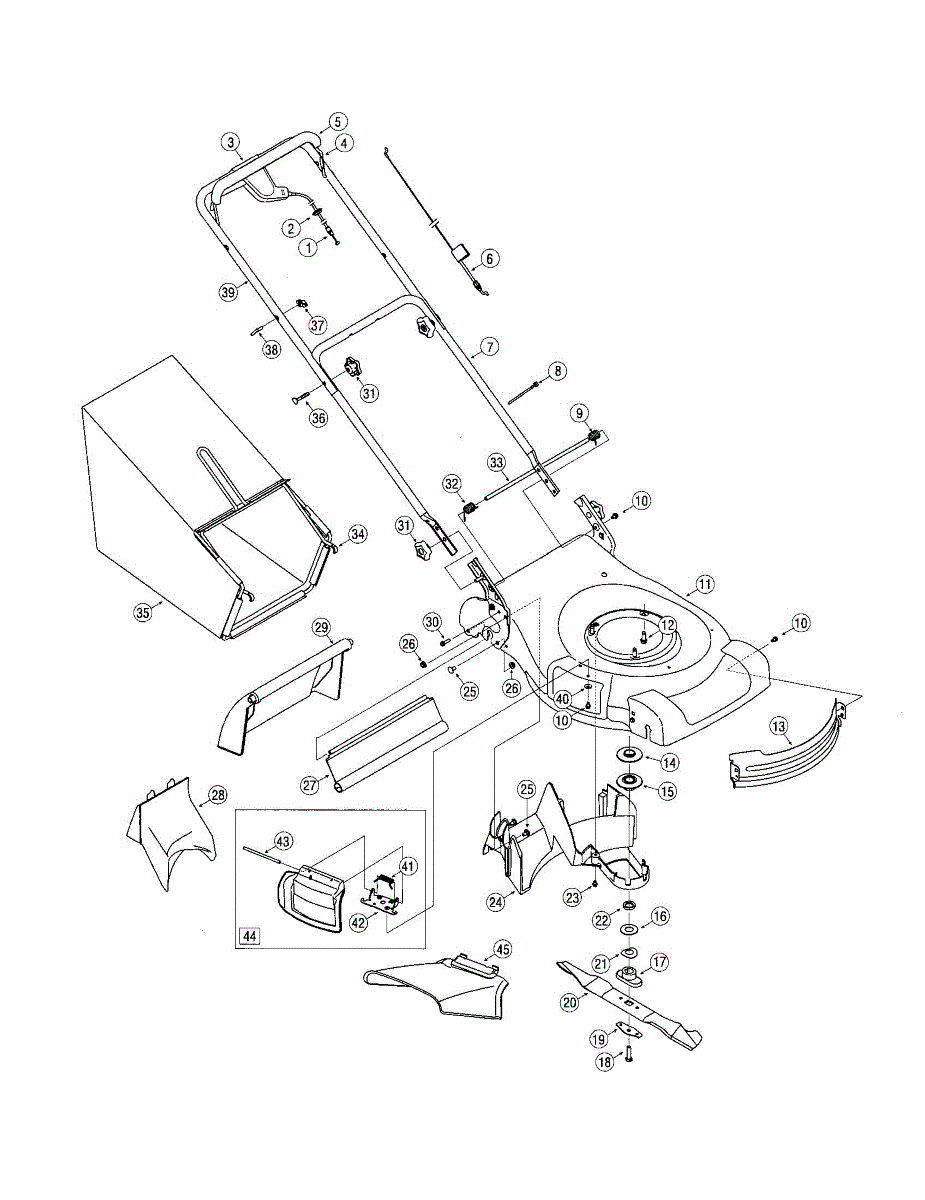

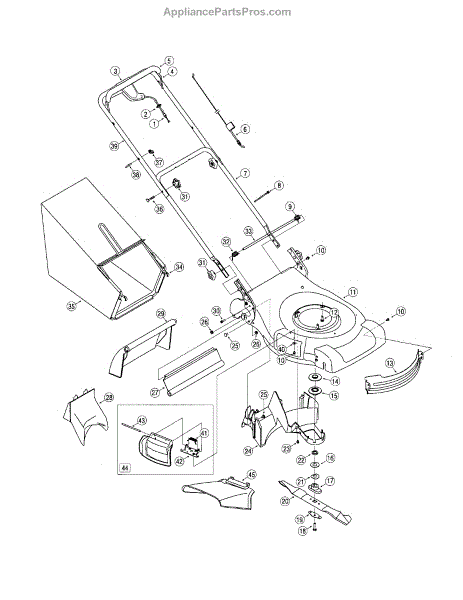

Parts for Troy-Bilt 834: Deck / Drive Control / Grass Catcher Parts

This control handle is designed specifically as a replacement for use on select walk-behind lawn mowers. The control handle is the safety that is engaged to allow the engine to run. When holding the control handle in, the pull start can be activated and the engine will run. Once the control handle is released, the engine will stop. In the event that the control handle becomes damaged or fails, it will need to be replaced so that the mower can continue to be used. This handle can provide a genuine replacement for compatible models. This control handle is manufactured to exact standards by MTD and provides an exact fit. It is compatible with hundreds of models, including select models from RYOBI, Yard Machines, Troy-Bilt, Yard-Man, Husky, Bolens, and Cub Cadet. This part is also known as the control bar, control handle, engine stop handle, bail control, or mower bail. It is made of durable metal and sold individually. No tools are required for the installation of this part. To replace the handle, simply squeeze the existing control handle to remove it from the outer handle, and then align the new handle and slide it into place. When properly installed, the pressure will hold it in place and allow for proper operation.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This blade adapter is made to attach a lawn mower cutting blade to the drive shaft of a push mower. Though it is made of sturdy metal and is tightly fastened to the mower's drive, the adapter and blade may wear and loosen over time. This can present a dangerous situation as well as poor cutting performance for the blade. Also, each adapter has a small insert tab that fits into the blade attachment. This tab, called a “key,” is actually a shear pin. Should the blade strike a solid object, the key will sheer off, preventing the blade from coming loose or suffering irreparable damage. The solution to either of these problems is to replace the blade adapter. The blade itself should be closely examined to make sure it fits the new adapter with no wobble or slack. To replace the blade adapter, turn the mower on its side with the air filter on top. Use a ratchet to remove the bolt that attaches the blade and adapter to the drive shaft. Make certain to fit the new adapter key into the keyway on the shaft. Always use a replacement part like this one, that is OEM certified to be identical to the original. This blade adapter is compatible with Ryobi, Yard Machines, Yard Man, Huskee, Cub Cadet, Troy-Bilt, MTD, and Bolens mowers.

This replacement part is a hex bolt. It is a genuine replacement part made by MTD. Hex bolts are named because they are shaped like a hexagon and are different from the regular circle-shaped bolts. These parts are able to hold other parts secure and in place so that everything can operate as needed. A new hex bolt might be needed if the current ones are damaged in any way. It is possible that these bolts become stripped or lodged in place over time due to normal wear and tear and should be replaced. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous part is stuck. Be sure the engine is completely powered down before beginning this repair. This bolt is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM replacement part sourced directly from the manufacturer.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This screw is a hex wash head screw. It is a genuine MTD part. It is a replacement part for various makes and models of lawn mowers, snowblowers, edgers, and other equipment. A screw is a type of fastener, and as such, there are many screws on these appliances.Screws may become worn over time through normal wear and tear. In addition, screws can become stripped when making another repair, so it is a good idea to have compatible screws on hand in case. This hex wash head screw is made of durable metal.This screw is a genuine OEM part that is sourced directly from the manufacturer. It is sold individually, though there are many screws located on these types of equipment. It is made to be compatible with equipment manufactured by MTD, Yard Machines, Bolen, Troy-Bilt, Craftsman, Husky, Cub Cadet, and many others.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

This is a replacement grass bag. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a ripped or defective grass bag on a variety of lawnmower models. The grass bag catches grass clippings as they are expelled from the lawnmower, making them easier to dispose of or preventing clippings from making a mess. No special tools are needed to install this grass bag. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this grass bag, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this grass bag is suitable for use on several different models of walk behind lawnmowers manufactured by MTD and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This replacement part is an upper handle, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. The upper handle of a lawn mower is an important part that aids in the performance of the device. The handle allows the user to steer and maneuver the device from the standing position and is also able to control different settings during use. A new upper handle might be needed if the current one is damaged in any way including being cracked or dented. If the upper handle is unable to be used, the capabilities of the lawn mower itself will most likely be compromised. Be sure the engine is powered off before attempting to repair this device. This upper handle is sold individually, and it is intended for different lawn mowers. This is an OEM replacement part and is sourced directly from the manufacturer.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This 21-inch deck chute is an OEM-authorized part that is designed for use with select walk-behind push lawn mowers. The deck chute directs the grass clippings that are expelled by the mower blade as they are discharged from the deck. The mower deck cover should be removed and replaced with the chute, as they will not both fit on the hinge at the same time. This chute sees a lot of use and is subject to potential impact with the ground and various obstacles, which makes it prone to damage over time. It can even become detached and need a full replacement. This genuine OEM chute will provide the perfect fit for compatible mowers. This deck chute is manufactured to specific standards by MTD and can work with over 150 machines from RYOBI, Yard-Man, Yard Machines, Troy-Bilt, MTD, Bolens, Husky, and Cub Cadet. Refer to the parts diagram and owner's manual to confirm part number compatibility and location of the chute. This part is made of durable plastic material and is sold as a single unit. Hardware is not included with this part and will require an additional purchase. Always disable the engine before working near the mower blade for safety.
