Whirlpool WP8268874 Lower Spray Arm Assembly (With Shield) OEM Part

Manufacturer's Part Number: WP8268874
Genuine Whirlpool part
Appliance Compatibility Tool
$70.76
IN STOCK - SHIPS TODAY
Compare At:
$84.91
You Save:
$14.15

Secure and trusted checkout with

IN STOCK Less than 100 left
Ships Today Guaranteed

Order now and we'll ship it out Today

Over 94% of our orders are delivered in 2 days or less

Call us 1-877-477-7278
Need Help? Chat with a Pro

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others. See all items in Dishwasher Spray Arm & Related.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WP8268874 replaces AP6012274, 8268874, 3379363, 8051258, 8268875, 830913, 9744234, PS11745481.

Description

This lower spray arm assembly circulates wash water from the pump to clean dishes on the lower rack. The integrated shield helps direct water flow and protect the arm from debris, restoring consistent wash coverage.
  • Distributes high-pressure water across the lower rack for effective cleaning
  • Shield design helps prevent debris intrusion and improves spray pattern
  • Common failure signs: poor lower-rack cleaning, noisy or restricted rotation, cracked or warped arm, clogged spray holes
  • Also addresses leaking or splashing caused by a damaged or misaligned arm/shield
What's included: One lower spray arm with attached shield Install notes:
  • Disconnect power and turn off water supply before servicing
  • Remove lower rack; lift off old arm assembly per model design
  • Clear any debris from pump outlet and sump before installing
  • Ensure the new arm spins freely and is fully seated; test for smooth rotation

Frequently Bought Together

This item

Product photo

Whirlpool WP8268874 Lower Spray Arm Assembly (With Shield) OEM Part

Total price:

$36.47

Have a Repair Question? AppliancePartsPros has your Answer!

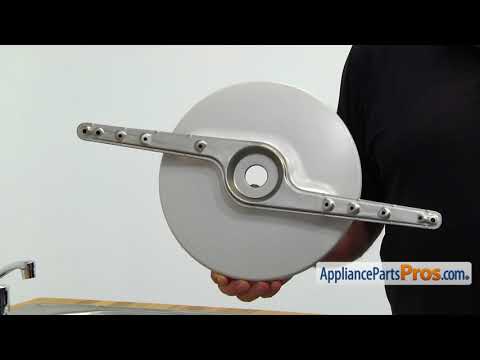

How to Replace Whirlpool WP8268874 Lower Spray Arm Assembly (With Shield) OEM Part #WP8268874

Step by step instructions on how to replace a Whirlpool WP8268874 Lower Spray Arm Assembly (With Shield) OEM Part #WP8268874 for Dishwasher. Note: This video is intended to give you the general idea of the part replacement procedure. Your appliance may differ depending on the manufacturer and model.

Do-It-Yourself Stories from Customers like You

Total Satisfaction Rating
5.0
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Do-It-Yourself Rating
Very Easy
Less than 15 minutes

Have questions? Ask our pros!

Contact us in a way that is convenient for you

Call us 1-877-477-7278
Need Help? Chat with a Pro
Or ask a question by filling in the form

Share your thoughts with other customers

Ask a Question

Cross Reference Information

Whirlpool WP8268874 Lower Spray Arm Assembly (With Shield) OEM Part

Part Number:
OEM18036831
Manufacturer's Part Number:
WP8268874
