Product Details
Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
See all items in Dishwasher Control Board.
Whirlpool also makes various appliance models for Sears / Kenmore.
Cross Reference Information
Part Number W10486463 replaces AP5607137, 2312798, AH3633161, EA3633161, PS3633161, W10352589.
Description
Restore reliable cycle control with this electronic control board. It serves as the dishwasher's brain, coordinating wash, drain, and dry functions so the machine starts, runs, and completes cycles as expected.
- Orchestrates cycle timing and interprets sensor inputs
- Distributes power to components such as the wash motor, drain pump, and water inlet valve
- Communicates with the user interface to execute cycle selections
- Typical failure symptoms include: won't start or power up, cycles won't advance, stops mid-cycle, won't fill or drain, or control-related error codes
What's included: 1 electronic control board Install notes:
- Disconnect power at the breaker and turn off water supply before servicing
- Use ESD protection and handle the board by its edges only

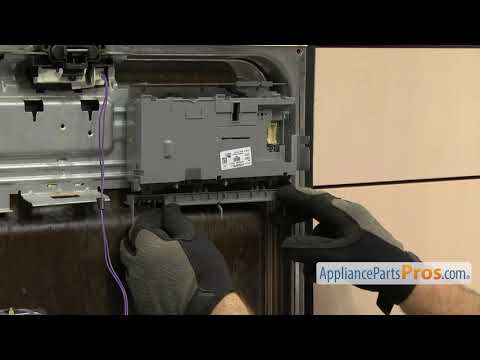

- Access the control area, move wire connectors one at a time to the new board, and secure it in the original mounting
- Restore power and, if available, run the unit's diagnostic/service cycle to verify operation
