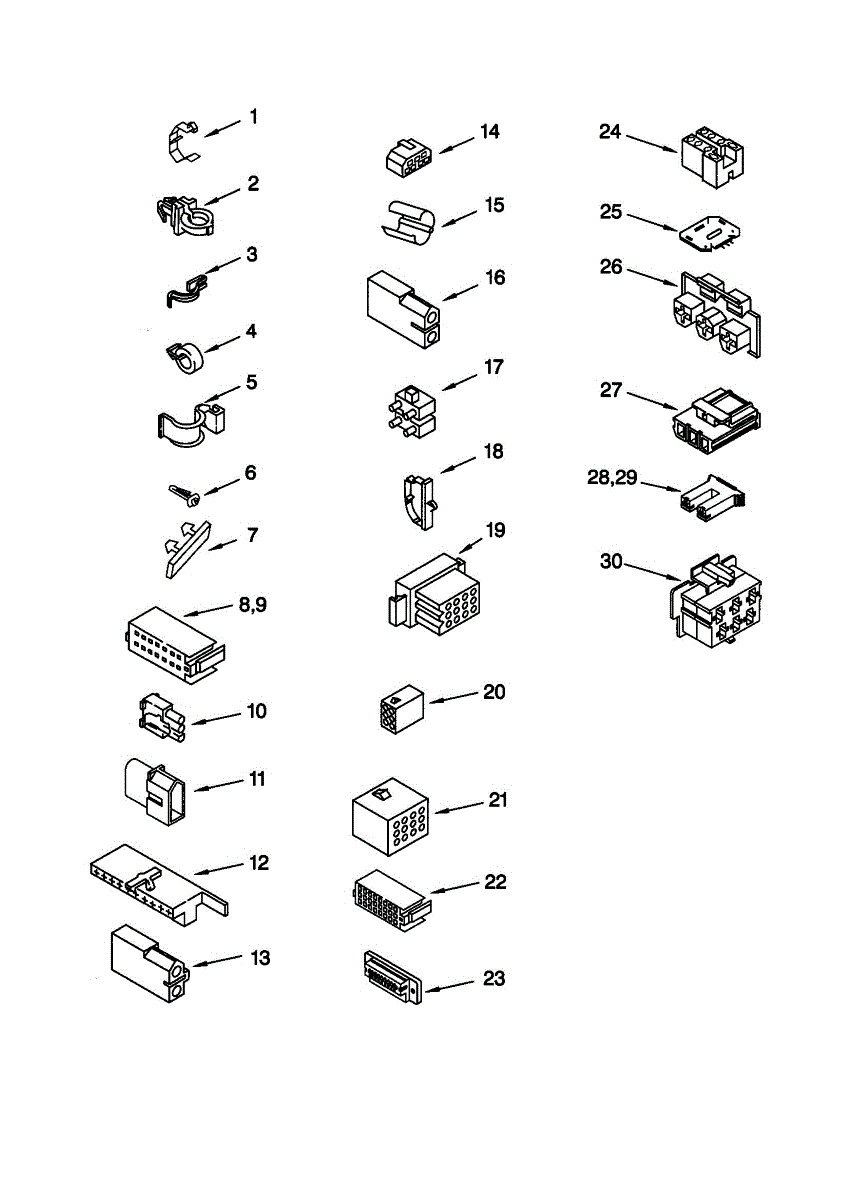

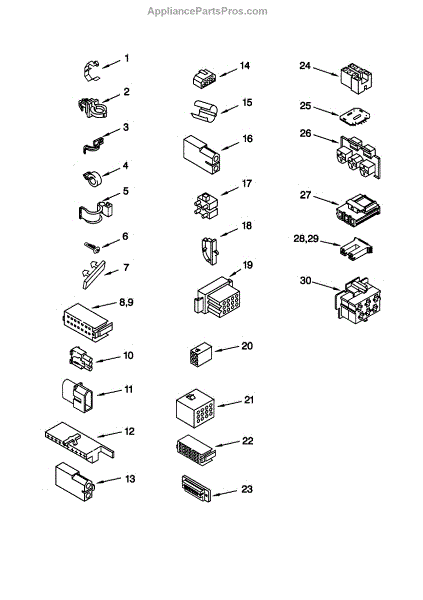

Parts for Kenmore 110.20052991 (11020052991, 110 20052991): Wiring Harness Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Used from harness to top.

Harness retainer secures wiring harnesses inside your washer cabinet. Replace if cracked, broken, or missing to properly route and protect wires.

Wire connector block for washers. Transfers electrical connections between wiring harnesses. Replace if connector housing is cracked or melted.

Used for lid switch.

For mating plug use 691707.

This 10-circuit connector housing provides a secure plug-style connection for the appliance wiring harness, restoring reliable electrical contact where the original plastic connector is cracked or melted. It helps ensure circuits stay seated and insulated. What it does:

• Replaces a damaged or cracked 10-circuit plastic connector housing to restore a proper plug connection
• Secures wiring harness terminals to prevent intermittent power or signal loss
• Keeps electrical contacts insulated from vibration and moisture
• Useful when the mating connector body is broken, burned, or otherwise unusable

• One 10-circuit connector housing

• Disconnect power to the appliance before starting any repairs
• Verify terminal pin type and wiring orientation before removing the old housing; take a photo for reference
• This listing is for the housing only; transfer existing terminals/pins or replace pins with exact matches as needed

Push-in.

For terminal use WP596797.

For terminal use WP596797.

For terminal use 689173.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This three-circuit connector housing organizes and protects terminals in an appliance wiring harness. It provides a secure, insulated plug connection to help prevent loose contacts, heat damage, and intermittent operation when the original housing is cracked or melted. What it does:

• Holds three wiring terminals in the correct orientation for a mating connector
• Insulates and locks terminals to reduce arcing and overheating at the plug
• Replaces cracked, brittle, or heat-damaged connector housings
• Symptoms can include intermittent power, burnt odor near the connector, discoloration/melting, or a plug that won't stay latched

• 1 three-circuit connector housing

• Disconnect power before servicing the appliance
• Note wire/terminal positions and transfer them one at a time into the new housing
• Inspect terminals; replace any that are discolored, loose, or damaged. Use the correct crimp tool/terminals specified for your model
• Fully seat each terminal until it locks and the connector latch engages securely

Used for the pressure switch.

Used for the temperature switch.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

Connects drain hose sections to prevent leaks and restore proper wastewater drainage. Replace if coupling cracks or connection leaks during draining.

Graphite spray paint for appliance touch-ups. Covers chips, scratches, and scuffs on dryer drums, washer panels, and exterior surfaces. Restore finish.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Gasket sealer adhesive for dryers and laundry appliances. Bonds and seals gaskets during installation or repair. Replace when worn or missing.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Lubricates transmission gears for smooth wash and spin cycles. Replace when degraded or after transmission repairs. Verify compatibility with your model.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
