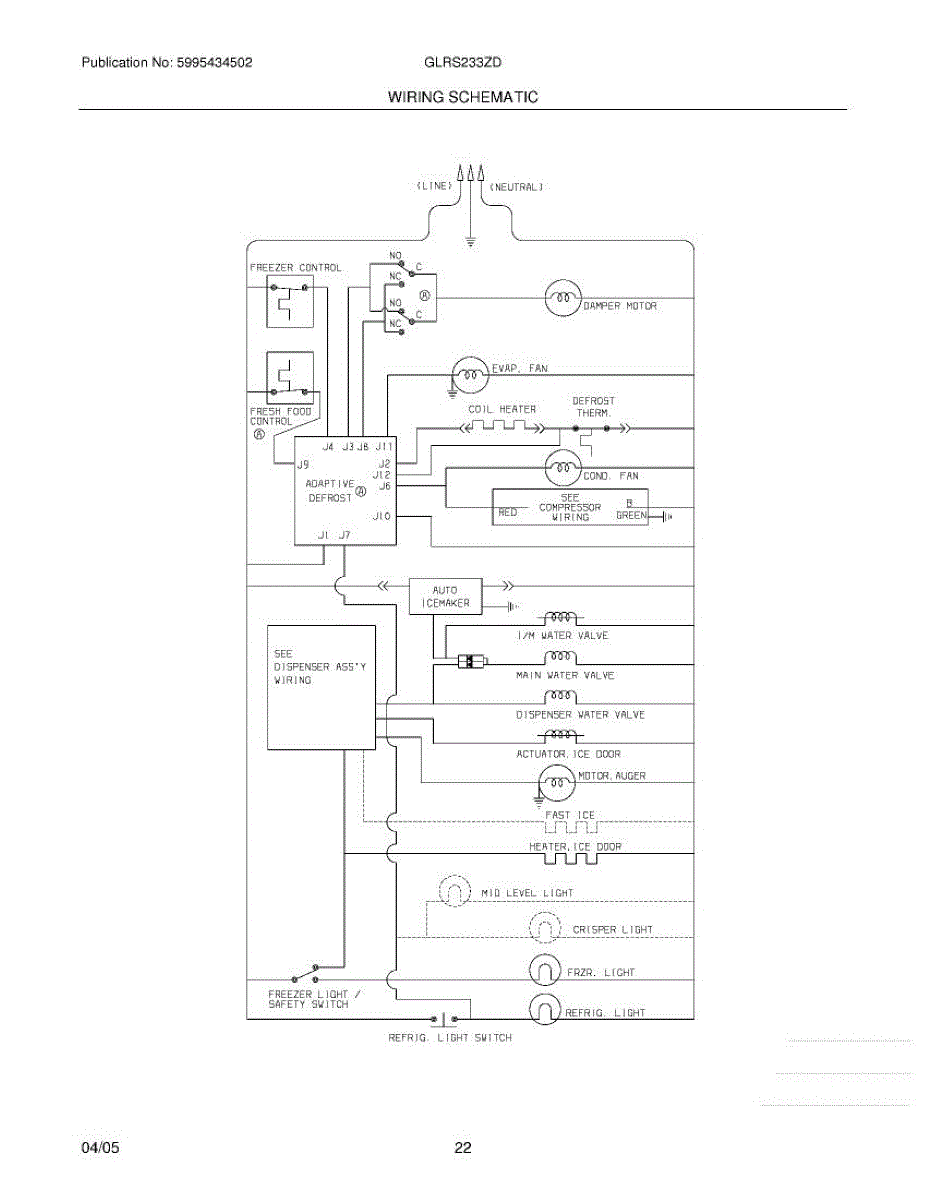

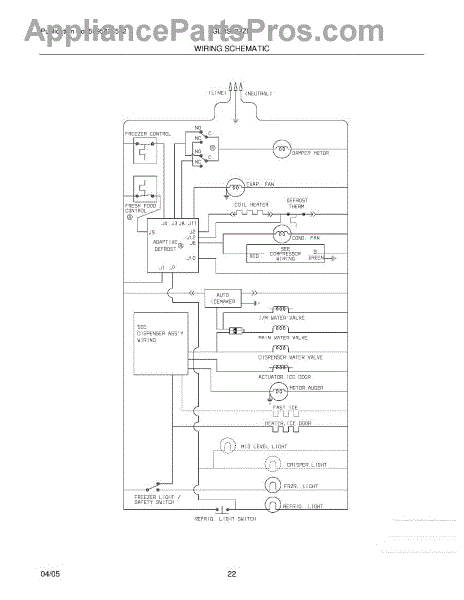

Parts for Frigidaire GLRS233ZDB4: 22 - Wiring Schematic Parts

Reduces chlorine taste and odor while filtering sediment from your refrigerator's water and ice. Replace every 6 months for best performance. Verify fit.

This Use & Care booklet provides the appliance owner's guide and basic operating, care, and safety information so you can use the appliance correctly and reference important maintenance and safety advice over the product life. What it does:

• Explains basic controls, features, and normal operation in plain language
• Lists care and cleaning recommendations to help maintain performance
• Summarizes safety warnings and proper usage to reduce risk of damage or injury
• Offers basic troubleshooting tips and guidance for common user questions

• No installation required — this is a printed owner's guide for reference
• Read all safety and operation sections before using the appliance
• Keep the booklet with the appliance records for future reference or service
• Replace if lost or badly damaged; dispose of old manuals according to local recycling rules

Service data sheet for your refrigerator. Provides technical specifications, wiring diagrams, and service information. Replace if lost or damaged.

Refrigerator not cooling properly? This heat exchanger kit improves cooling efficiency in the sealed system. Moderate difficulty repair for side-by-side models.

This fitting connects water supply tubes within the refrigerator's water system. Located behind the refrigerator or inside access panels, it ensures secure water line connections. Replace if you notice water leaks, reduced water flow to the dispenser, or if the fitting appears cracked or corroded.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

Fix frozen water dispenser issues with this dispenser heater kit. Prevents ice buildup in the fill tube and restores water flow to your refrigerator.

Secures refrigerator grille or trim to cabinet, preventing rattles and gaps. Replace when broken or missing to restore proper panel alignment. Verify fit with your model number before ordering.

The Wiring Harness is an OEM part for Frigidaire refrigerators. It connects various electrical parts within the refrigerator, ensuring proper communication and voltage.

A bad wiring harness can be caused by wear and tear, damage, or electrical issues. Signs of a faulty wire harness include malfunctioning or non-functional parts, intermittent electrical problems, or loose connections.

Symptoms of a bad wiring harness can include:

• Intermittent electrical issues or power loss
• Burnt or melted wires
• Visible damage or wear on the wire harness

Replace your worn or damaged wiring harness with this genuine OEM part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

Color: White

Connects sections of water tubing inside your refrigerator. Replace this adapter if cracked, leaking, or popping off to stop drips and water damage.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Ice won't dispense or only comes out crushed? Your ice bin and auger assembly may be broken. This stores ice and drives it out for dispensing. 5-min fix.

This complete ice making unit produces fresh ice cubes automatically in your freezer compartment. It fills with water, freezes it into uniform cubes, and dispenses them into the storage bin below. Install this assembly when your current ice maker fails to produce ice or operates erratically.
