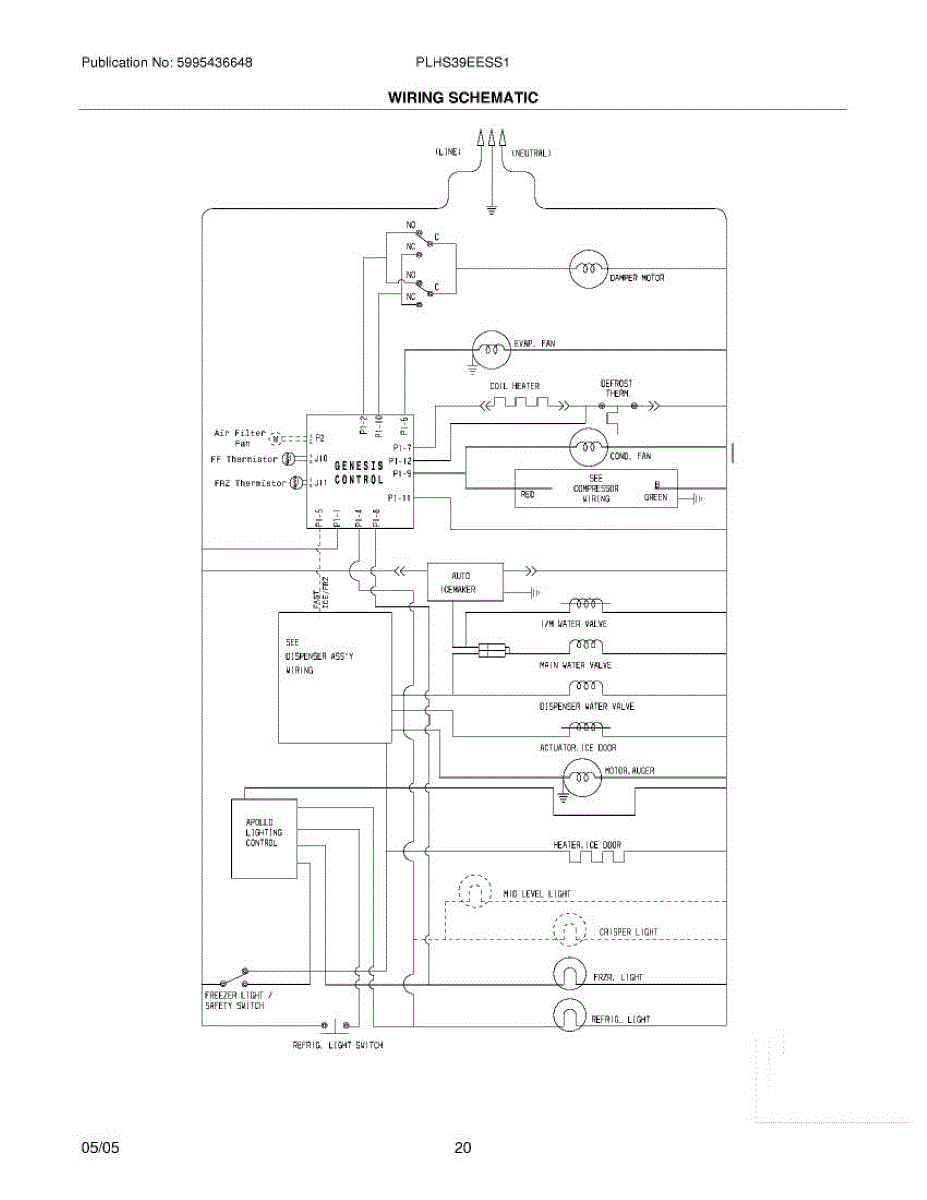

Parts for Frigidaire PLHS39EESS1: 20 - Wiring Schematic Parts

Reduces chlorine taste and odor while filtering sediment from your refrigerator's water and ice. Replace every 6 months for best performance. Verify fit.

This is an energy guide label — the adhesive information sticker that lists estimated energy use and efficiency info for the appliance. It replaces a missing, damaged, or unreadable factory label so specs remain visible. What it does:

• Provides the official energy-use and efficiency information typically displayed on the appliance
• Restores a missing or worn label so estimated energy details are visible for owners
• Helps meet visible labeling expectations during resale or service inspections
• Serves as a direct replacement for a factory-applied information sticker

• One adhesive energy guide label as shown

• Clean and dry the mounting surface before applying; remove any residue or old adhesive
• Peel backing and firmly press label onto a smooth, flat area; avoid curved or textured surfaces for best adhesion
• Do not stretch or fold the label when applying
• No electrical or disassembly steps are required; if label is behind a trim piece that must be removed, follow manufacturer service instructions

Replacement insulation foam block for refrigerators. Installs inside cabinet walls to maintain temperature efficiency. Order when original is missing, damaged, or compressed from wear.

This fitting connects water supply tubes within the refrigerator's water system. Located behind the refrigerator or inside access panels, it ensures secure water line connections. Replace if you notice water leaks, reduced water flow to the dispenser, or if the fitting appears cracked or corroded.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

Fix frozen water dispenser issues with this dispenser heater kit. Prevents ice buildup in the fill tube and restores water flow to your refrigerator.

Refrigerator not cooling properly? This heat exchanger kit improves cooling efficiency in the sealed system. Moderate difficulty repair for side-by-side models.

Color: White

Connects sections of water tubing inside your refrigerator. Replace this adapter if cracked, leaking, or popping off to stop drips and water damage.

Ice won't dispense or only comes out crushed? Your ice bin and auger assembly may be broken. This stores ice and drives it out for dispensing. 5-min fix.

This complete ice making unit produces fresh ice cubes automatically in your freezer compartment. It fills with water, freezes it into uniform cubes, and dispenses them into the storage bin below. Install this assembly when your current ice maker fails to produce ice or operates erratically.
