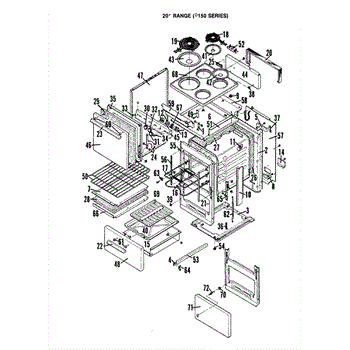

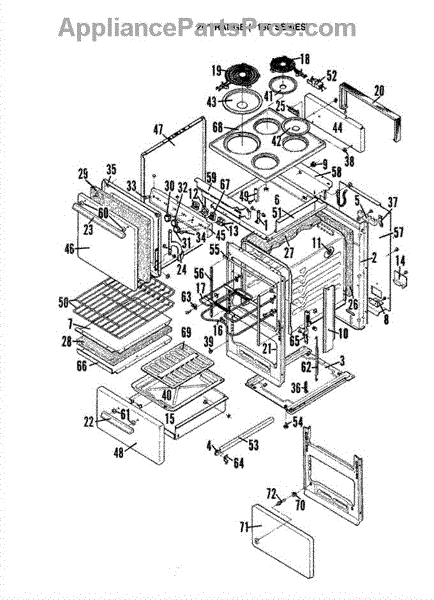

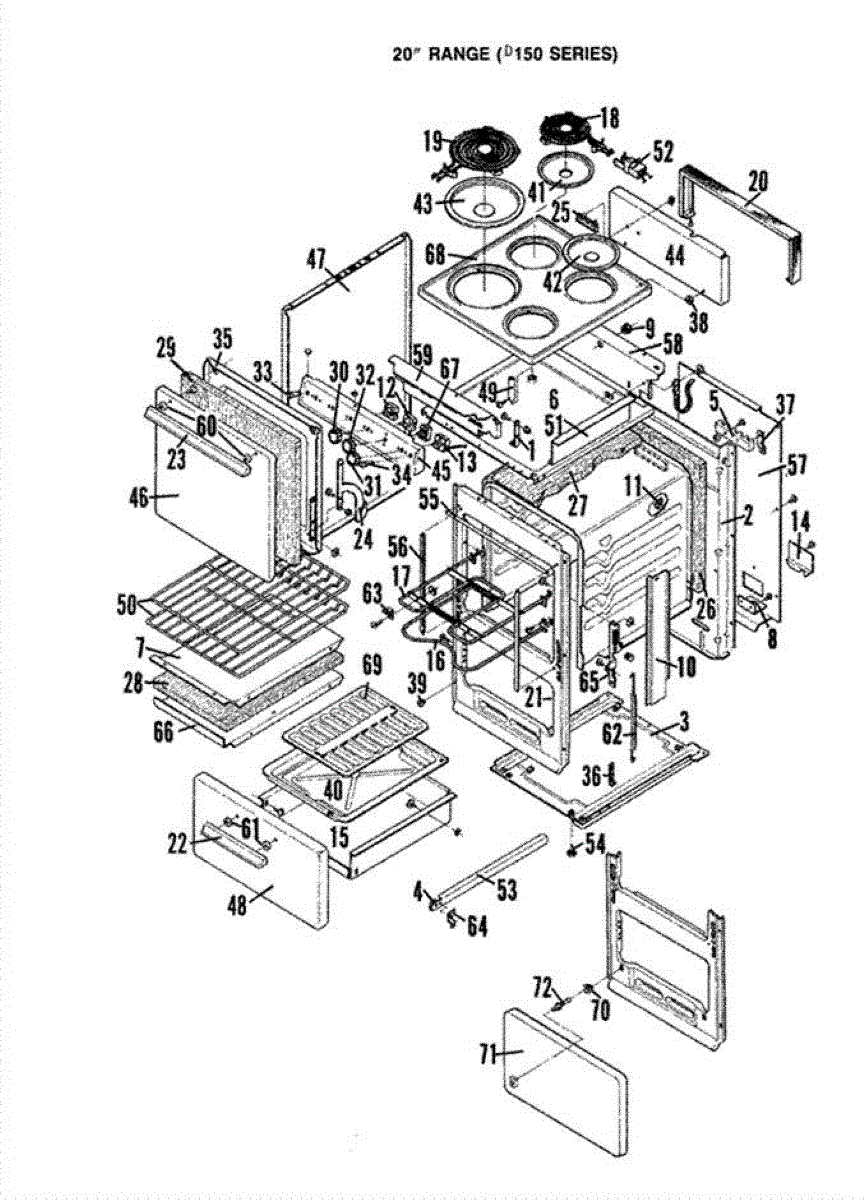

Parts for Hardwick D-150: 01 - Body Parts

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bake element supplies the lower-oven heat your range or wall oven needs for baking and roasting. Replace it when the oven won't heat properly in Bake or the element shows visible damage.

• Provides primary heat from the bottom of the oven during Bake cycles
• Helps maintain even, consistent oven temperature
• Common failure symptoms: no heat in Bake, slow preheat, uneven or undercooked results
• Visual signs of failure: element is blistered, cracked, or broken

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove mounting screws, pull the element forward, and move the two wire leads to the new element one at a time
• Support wires so they don't slip behind the liner; ensure snug terminal connections
• Restore power and run a short Bake cycle to verify operation

This 8-inch surface burner element delivers heat on an electric cooktop or range. Replacing a worn or open element restores even heating on the burner zone and reliable response to temperature settings.

• Heats the 8-inch cooking zone when the surface control is turned on
• Helps maintain consistent pan temperature for boiling, simmering, and frying
• Common symptoms: burner won't heat, heats unevenly or intermittently, visible blistering/breaks in the coil, or scorch marks at the terminals
• Replacing a damaged element can prevent further damage to the receptacle/terminal block

• Disconnect power at the breaker and allow the unit to cool completely
• Handle the element by the bracket; avoid bending the coil
• For plug-in setups, pull the old element straight out and firmly seat the new one; for wired connections, move wires one at a time to the matching terminals and secure properly
• Inspect the receptacle/terminal block and wiring; replace if burnt or loose before restoring power

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This side door gasket forms the sealing edge for the appliance door to restore a tight seal and reduce leaks, drafts, or moisture build-up. Replacing a worn or torn side gasket helps the door sit flush and improves overall performance. What it does

• Seals the door side edge to stop air, moisture or heat from escaping
• Common symptom of a failing gasket: visible gaps, drafts, water or steam leaks
• Can reduce rattling or uneven door closure caused by a warped or compressed seal
• Restores proper contact between door and frame for consistent operation

• Disconnect power and allow the appliance to cool before starting
• Remove the old gasket carefully; retain any clips or screws if re-used per manufacturer guidance
• Press the new gasket into the channel evenly; check for full seating along the entire side edge
• After installation, close the door and inspect for uniform contact; adjust door alignment if needed
