Parts for Magic Chef 3523XRW: 01 - Body Parts

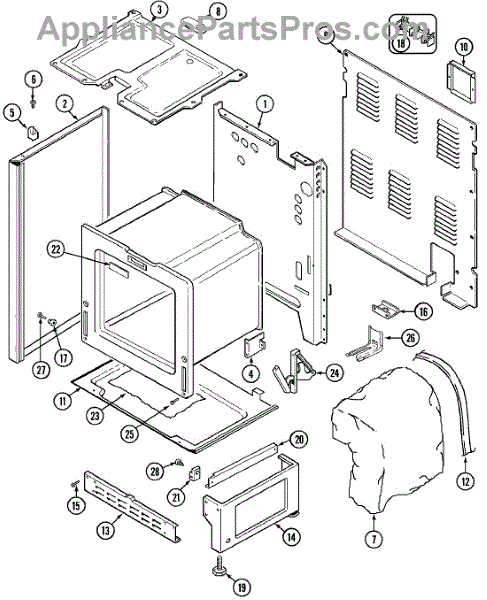

Left hand side

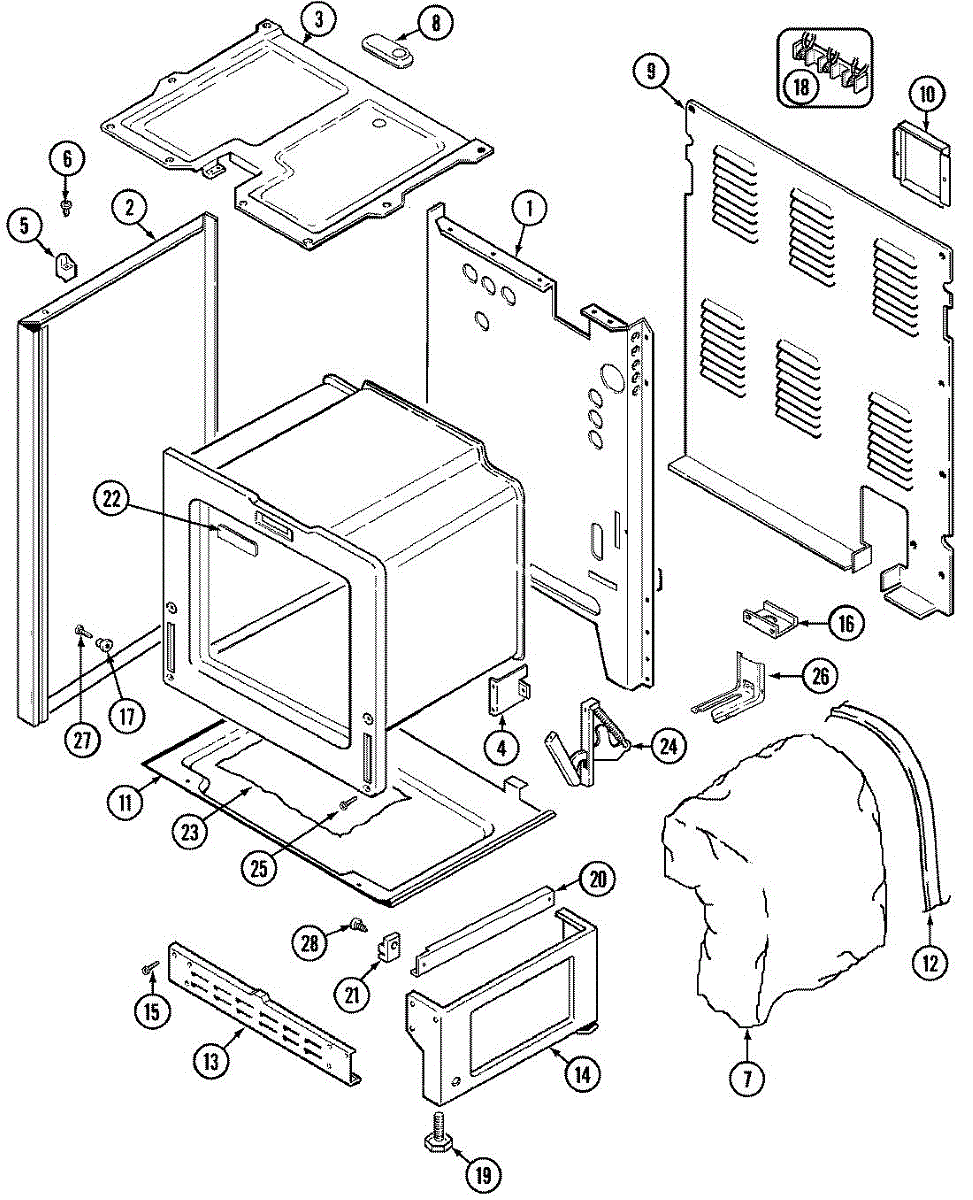

Right hand side

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This spacer secures and maintains proper spacing between adjacent appliance components to prevent rubbing and misalignment, helping restore smooth, stable operation after wear or replacement. What it does:

• Positions and cushions parts to prevent metal-on-metal contact and reduce noise or vibration
• Keeps components aligned for proper fit and function after panel or assembly reinstallation
• Helps maintain clearance for moving parts to avoid abrasion and premature wear
• Useful when replacing worn fasteners, clips, or assemblies that rely on precise spacing

• Disconnect power (unplug or switch off circuit breaker) before beginning any repair
• Handle small parts carefully and retain any associated fasteners; compare new part to old for orientation
• Use basic hand tools as required; avoid forcing parts into place to prevent damage

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Front broiler drawer support.

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

This is a replacement refrigerator door hinge that restores proper door alignment and smooth opening. It helps stop sagging, rubbing, and uneven sealing so the door closes correctly and the appliance maintains temperature. What it does:

• Supports and pivots the refrigerator door for smooth opening and closing
• Restores correct door alignment to prevent gaps and uneven seals
• Stops door sag, rubbing, or binding that can cause unusual wear or noise
• Helps maintain proper door contact to preserve internal temperature

• One door hinge

• Disconnect power (and water supply if applicable) before starting repairs
• Support the door while removing and installing the hinge to prevent damage or injury
• Use basic hand tools; follow manufacturer instructions for torque and alignment

Size: 10-24X5/16-NI

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

For screws order: WP7101P485-60.

A genuine replacement screw used to secure components on compatible Whirlpool appliances. This small fastener restores proper assembly and helps stop loose panels, trim, or internal parts from rattling or shifting during operation. What it does:

• Secures panels, brackets, or components to restore proper fit and reduce vibration noise
• Replaces missing or stripped fasteners that cause parts to sit unevenly or move during cycles
• Helps maintain safe, stable appliance operation by keeping components fastened

• Use the matching screwdriver or bit to avoid stripping the head; do not force a damaged screw
• Hand-start threads before using a driver to prevent cross-threading
• Replace any additional corroded or damaged screws with matching fasteners for best fit
• Disconnect power and follow appliance-specific safety steps before accessing internal parts

Size: No. 8
