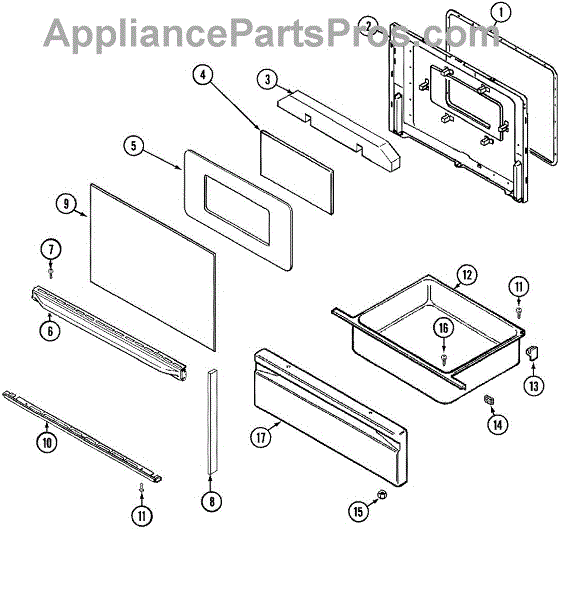

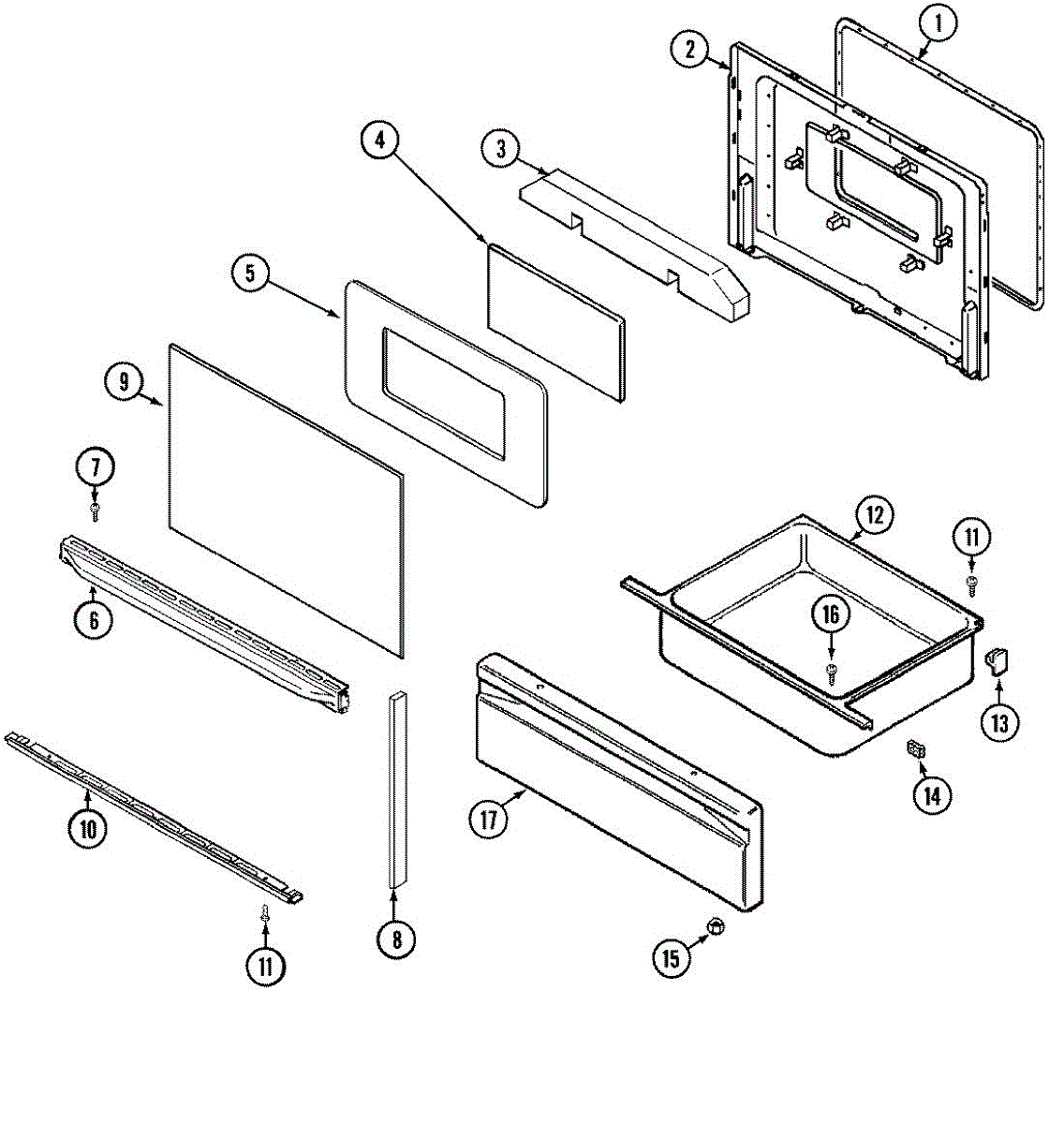

Parts for Magic Chef 3523XRW: 03 - Door / Drawer (Series 45 ``X`` Door) Parts

The Oven Door Seal is an OEM part for Whirlpool ovens. This seal is crucial for maintaining the oven’s efficiency by creating an airtight seal around the door, preventing heat from escaping during cooking. It helps ensure that the oven maintains the correct temperature, which is essential for even cooking and energy efficiency.

Common causes of a bad oven door seal include wear and tear from regular use, exposure to high temperatures, and damage from cleaning or handling.

Symptoms of a bad oven door seal include:

• Heat escaping from around the oven door
• Longer cooking times or uneven cooking
• The oven door not closing properly
• Visible cracks, tears, or deformation in the seal

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Includes two brackets part WP3801F813-51 to mount front panel to drawer. Front panel not included

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

Rear broiler drawer support.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

A 10-24 lock nut used to secure threaded fasteners and prevent loosening from vibration. Simple, durable replacement that restores proper fastening where the original nut has worn or failed. What it does:

• Secures shafts, studs, or bolts with 10-24 threads and resists loosening under normal appliance vibration.
• Restores proper tension where a stripped or loose nut causes rattling or parts shifting.
• Helps maintain alignment of panels, brackets, or components that rely on a locked fastener.
• Small hardware solution for common fastening failures—no special part modifications required.

• Disconnect appliance power and water before beginning repairs.
• Use the correct 10-24 threaded fastener and a properly sized wrench or socket to avoid rounding the nut.
• Tighten to a snug fit—do not overtighten or force onto damaged threads.
• Inspect mating threads and replace the bolt/stud if threads are stripped or damaged.
