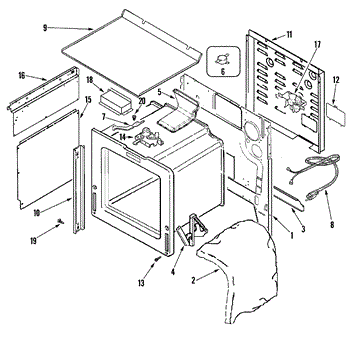

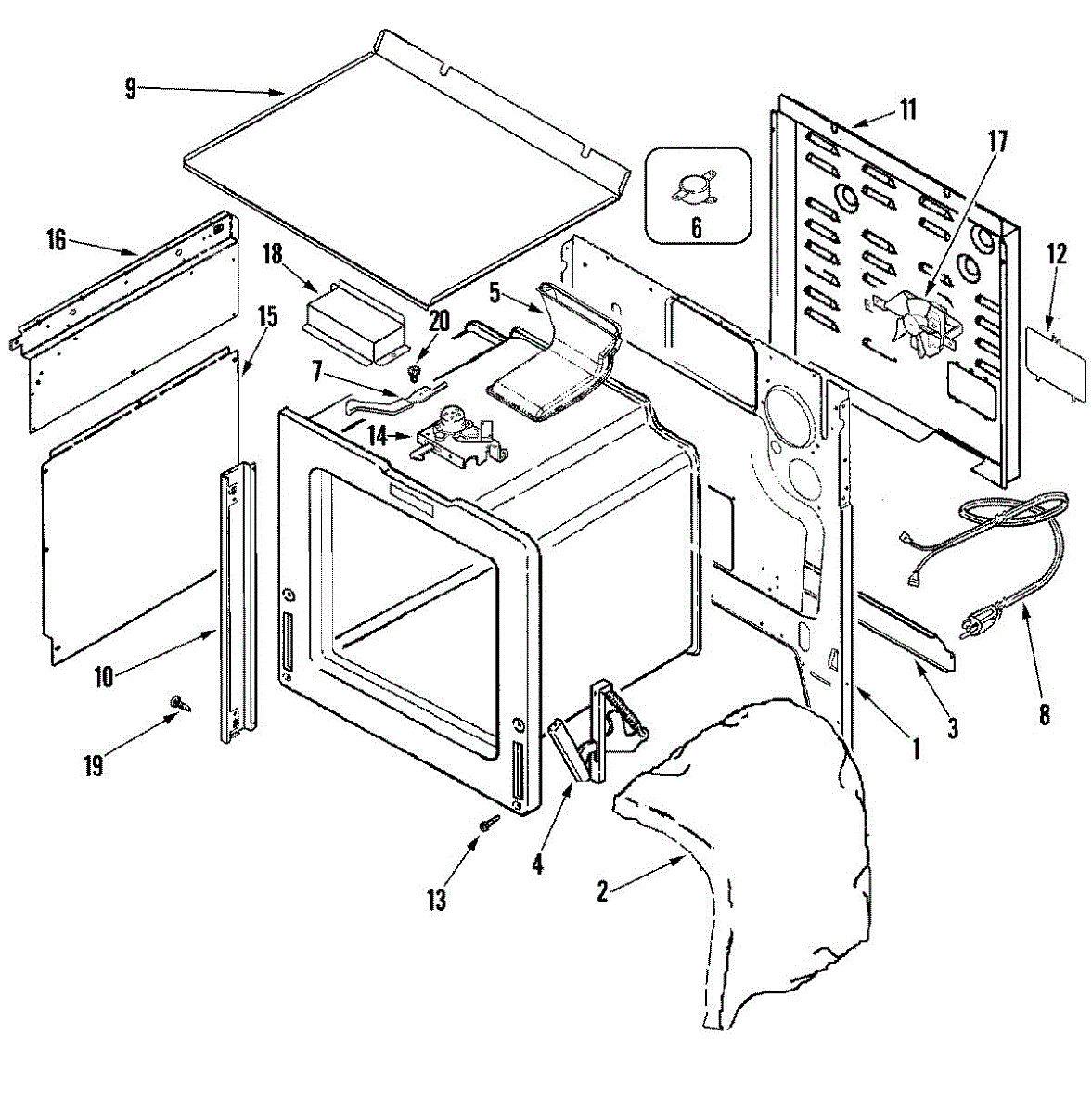

Parts for Maytag PGS3759BDB: 01 - Body Parts

This left-side oven door hinge supports the door and controls its spring-loaded movement so it opens smoothly and closes firmly, helping maintain a tight seal and consistent cooking performance.

• Provides spring tension and a pivot point for controlled opening and closing
• Aligns and pulls the door fully closed against the gasket
• Restores smooth, even door movement
• Common symptoms of a worn hinge: door won't close fully or sags; slams/falls open; feels loose or stiff; heat escaping or oven light staying on

• Disconnect power and let the oven cool completely before servicing
• Support the door; engage hinge locks or remove the door at the stop position per your model
• Springs are under tension—use gloves and caution
• After installation, verify alignment and that the door closes and seals properly

This temperature limiter switch stops heat buildup by opening the circuit when temperature exceeds safe limits. It restores proper thermal protection for the appliance's heating system and helps prevent overheating-related damage. What it does:

• Opens the heating circuit if internal temperature rises above the thermostat's limit to prevent overheating.
• Commonly used as a safety cutoff for dryers, ovens or other appliance heating systems.
• Symptoms of a failing limiter: no heat, intermittent heating, or an appliance that won't start its heating cycle.
• Works with the appliance's control and heating elements to maintain safe operating temperatures.

• Disconnect power before inspecting or replacing this part to avoid shock or injury.
• Replace with the exact part number to maintain proper temperature protection.
• If the limiter has tripped, inspect heating element, venting and related components for root causes before reassembly.

Size: 10-24X5/16-NI

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Size: 8abx3/8 - blk)
