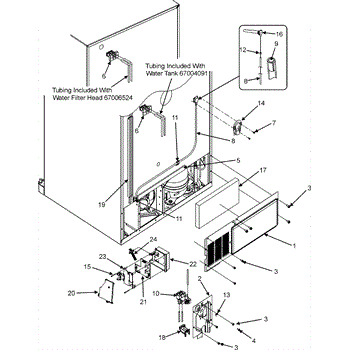

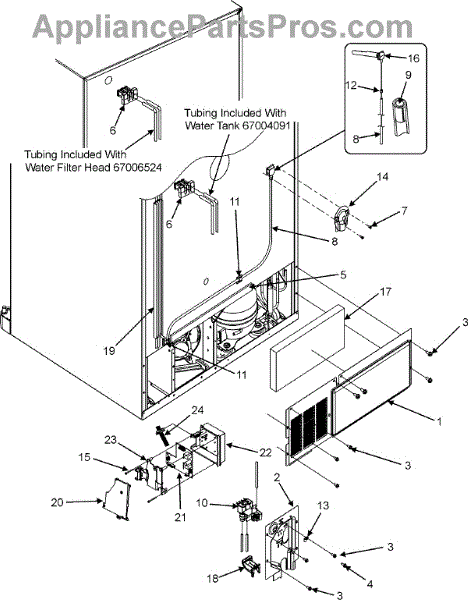

Parts for Dacor EF36BNDFSS: 01 - Cabinet Back Parts

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Screw: 8-16 x 3/8 inch.

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Ice maker water line: 1/4x 8ft.

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks

The Dual Water Inlet Valve is an OEM part for Whirlpool refrigerators. This valve controls the flow of water into the refrigerator's ice maker and water dispenser, ensuring the proper functioning of both features.

Causes of a bad dual water inlet valve can include mineral buildup from hard water, electrical malfunctions, or wear and tear from regular use. Physical damage or leaks can also compromise the valve's performance.

Symptoms of a bad dual water inlet valve include:

• No water flow to the ice maker or water dispenser
• Slow filling or low water pressure in the dispenser
• Leaking water around the valve area
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

This replacement cover protects water-related components on select Whirlpool washers, helping keep valves and hoses shielded from debris and incidental contact for reliable water flow management. What it does

• Protects water valves, inlet hoses, and nearby fittings from dirt and accidental contact
• Helps maintain proper water routing by keeping components covered and positioned
• Commonly replaced if cracked, broken, warped, or missing after impact or wear
• Can prevent debris buildup that interferes with valve operation or connections

• One replacement cover as pictured

• Disconnect power and shut off the water supply before starting any repair
• Secure with existing screws or clips
• Do not force the cover into place; inspect surrounding fittings and hoses for damage while installing
• If you see leaks after installation, recheck hose connections and valve seating; replace defective parts as needed

The Icemaker Fill Tube is an OEM replacement part for Whirlpool refrigerators. It delivers water to the icemaker, allowing it to produce ice cubes. It is responsible for directing water from the water inlet valve to the icemaker tray, where it freezes into ice cubes.

A bad fill tube can occur due to wear and tear, blockages, or damage. If you notice symptoms such as no ice production, leaking water, or ice cubes with an unusual shape or size, it may be time to replace the fill tube.

Symptoms of a bad fill tube include:

• No ice production or limited ice output
• Leaking water around the icemaker area
• Irregularly shaped or oversized ice cubes

Repair your refrigerator by replacing the faulty or damaged fill tube with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This Clamp-Tube secures small appliance tubing and helps maintain a watertight connection so hoses stay in place and reduce leaks or movement. Durable metal construction designed to hold tubing firmly at fittings. What it does:

• Secures water or drain tubing to fittings to prevent disconnection and leaks
• Reduces hose movement and vibration that can cause wear or chafing
• Helps maintain consistent water flow by keeping connections tight
• Common symptom: loose or leaking tubing, rattling or intermittent water flow

• One tube clamp

• Disconnect power and shut off water supply before starting any repair
• Slide clamp over tubing then position at fitting and tighten with pliers; avoid over-tightening
• Inspect tubing and fittings for damage and replace if cracked or worn

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

Replacement power cord that restores the electrical connection so your appliance receives safe, consistent power. Use this cord to replace frayed, damaged, or non-functioning cords and help return reliable operation to the appliance. What it does:

• Restores the appliance's main power connection so it can turn on and operate.
• Commonly used when a cord shows frayed insulation, exposed wires, scorch marks, or intermittent power.
• Can address issues where the appliance does not power on due to a broken or damaged cord.
• Replaces cords with loose or damaged plug/terminal connections that may cause sparking or overheating.

• Always disconnect power at the breaker or unplug the appliance before inspecting or replacing the cord.
• Verify the cord configuration (3-prong vs. 4-prong) and terminal type match your appliance and local electrical code before installation.
• Use proper strain relief and routing to prevent pinching; secure all connections and replace any damaged terminal hardware.
