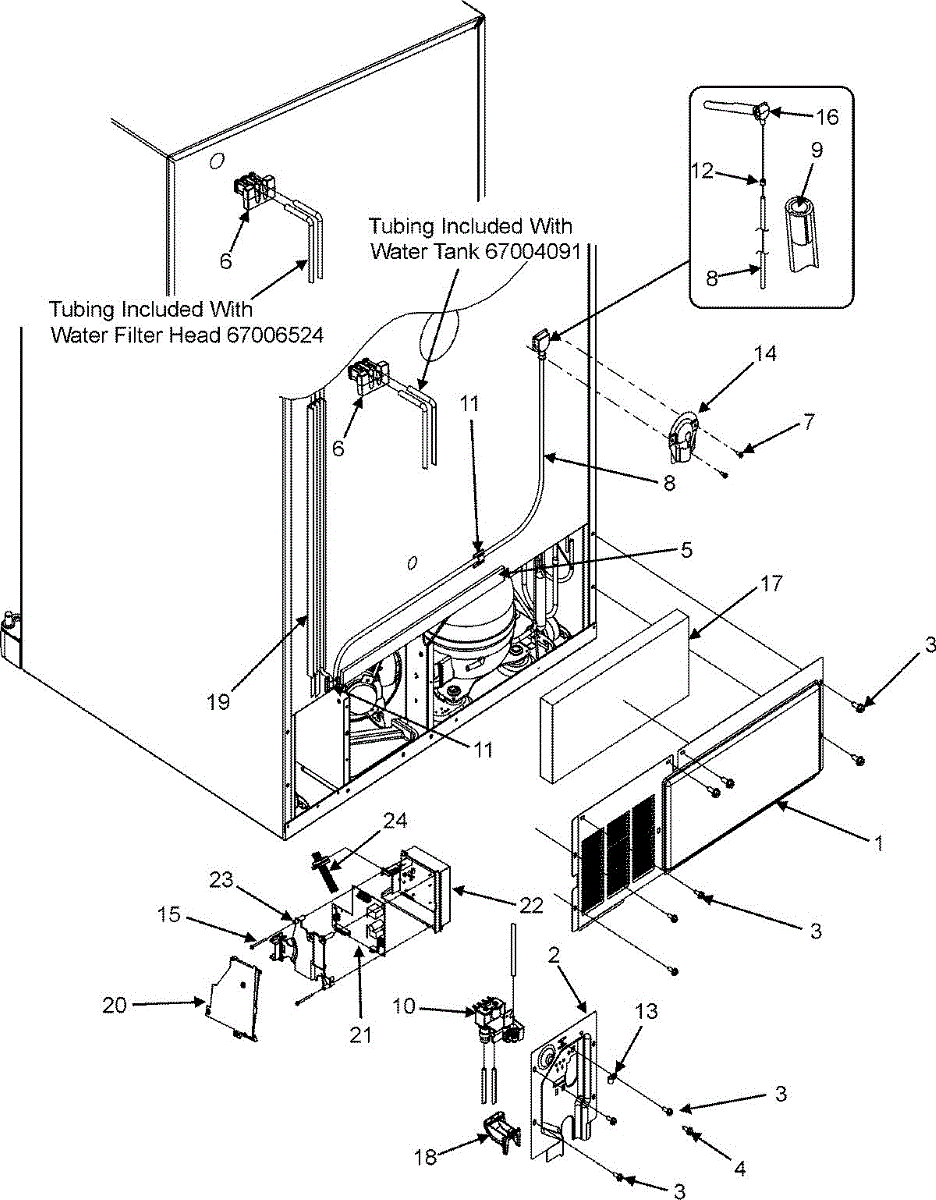

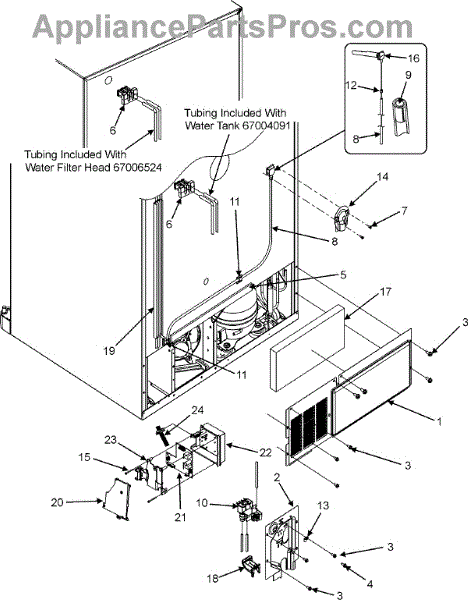

Parts for Dacor IF36INDFSF: 01 - Cabinet Back Parts

Plastic cover panel that mounts on the back of the machine compartment. Replace if cracked, broken, or insulation pad is damaged or missing.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Screw: 8-16 x 3/8 inch.

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Ice maker water line: 1/4x 8ft.

Fix water leaks in your refrigerator's ice maker or water line. This tube insert reinforces plastic tubing for leak-resistant compression fittings.

Fix water leaking from your refrigerator or a non-working dispenser with a dual water inlet valve replacement. DIY repair takes 15-45 minutes.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

Protective cover for water valves and inlet hoses. Replace if cracked, broken, or missing to shield components from debris and accidental contact.

Replacement icemaker fill tube that directs water from the valve to the ice tray. Replace if cracked, leaking, or causing water to freeze in the freezer.

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This Clamp-Tube secures small appliance tubing and helps maintain a watertight connection so hoses stay in place and reduce leaks or movement. Durable metal construction designed to hold tubing firmly at fittings. What it does:

• Secures water or drain tubing to fittings to prevent disconnection and leaks
• Reduces hose movement and vibration that can cause wear or chafing
• Helps maintain consistent water flow by keeping connections tight
• Common symptom: loose or leaking tubing, rattling or intermittent water flow

• One tube clamp

• Disconnect power and shut off water supply before starting any repair
• Slide clamp over tubing then position at fitting and tighten with pliers; avoid over-tightening
• Inspect tubing and fittings for damage and replace if cracked or worn

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

Replacement power cord for refrigerators. Restores electrical connection when the original cord is frayed, damaged, cracked, or has broken prongs.
