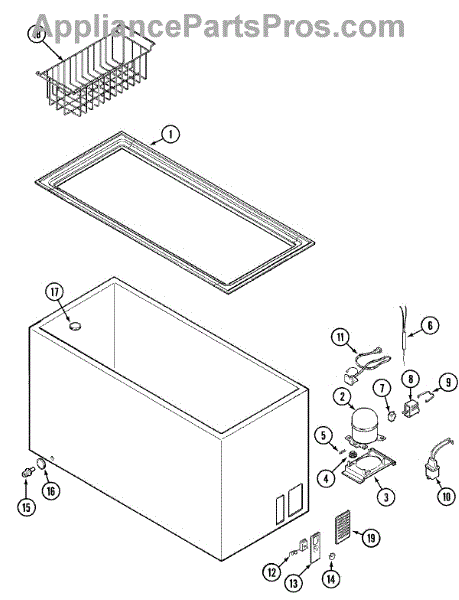

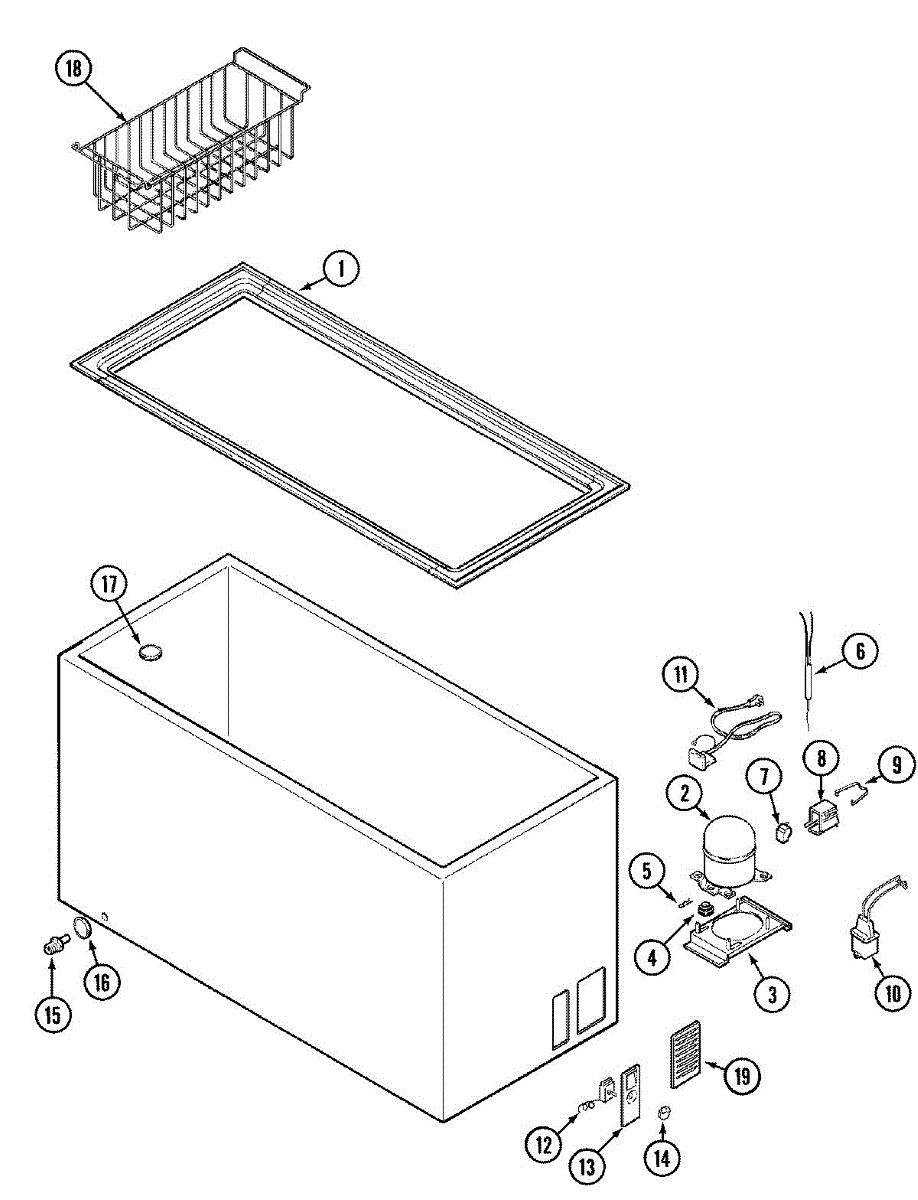

Parts for Maytag CFC1036GRW: 01 - Cabinet Parts

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This mechanical thermostat is the appliance's temperature control. It senses internal temperature and opens or closes its electrical contacts to cycle the system, helping the unit reach and maintain the setting you select for consistent performance.

• Regulates temperature by switching power to the cooling or heating circuit as needed
• Helps prevent overcooling/overheating and unstable temperatures
• Common symptoms: runs constantly or won't start, temperature too warm or too cold, short-cycling, no response to knob/setting changes
• Visual damage, burnt terminals, or a thermostat that fails continuity tests indicate replacement

• Disconnect power before servicing
• Document wire locations; transfer wires one at a time and secure all connections
• If your unit uses a sensing bulb/capillary, route and secure it exactly as original; do not kink or sharply bend it
• Verify correct mounting and smooth knob/shaft movement, then restore power and test

This is a replacement machine screw used to secure interior and exterior appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for reliable operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain correct alignment of control panels and trim pieces
• Works as a direct replacement when the original screw is lost or damaged

• One screw

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten to firm hand pressure; do not overtighten to prevent thread or part damage
• Disconnect power to the appliance before accessing internal components
• If fasteners or mounting holes are damaged, replace with the appropriate hardware.

This defrost drain adapter funnels melted defrost water from the evaporator area into the refrigerator's drain channel, helping prevent water pooling and evaporator-area leaks. A simple replacement to restore proper drain flow. What it does:

• Directs defrost meltwater into the cabinet drain to prevent pooling under the evaporator.
• Helps stop water from leaking into the refrigerator or freezer compartment.
• Can reduce odor and residue caused by standing water in the drain area.
• Fits the drain/chest drain opening and mates to the cabinet drain tubing.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover—keep screws and fasteners organized.
• Clean the drain channel and line of any ice or debris before installing the adapter to ensure proper flow.
• Reconnect power and test by pouring a small amount of warm water into the evaporator area to ensure the drain is routing properly.

This interior storage basket restores organized storage inside the appliance so food and containers stay contained and easy to access. It replaces a cracked, bent or missing basket to help keep shelves tidy. What it does

• Provides a removable container to organize and contain items inside the appliance.
• Keeps smaller items from shifting or falling through vents or shelf gaps.
• Replaces a warped, cracked or broken basket that can snag or allow spills.
• Helps maintain usable storage space and improves access to stored items.

• One interior storage basket

• Most baskets simply lift out and lift back in; check the cabinet rails or support tabs for proper seating.
• If screws or clips secure the basket, use the correct size driver and keep parts organized during removal.
• Disconnect power before servicing if working near electrical components or lights.
• Wear gloves to protect hands from sharp edges and support the basket during removal to avoid drops.
