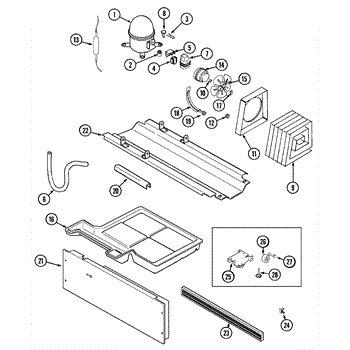

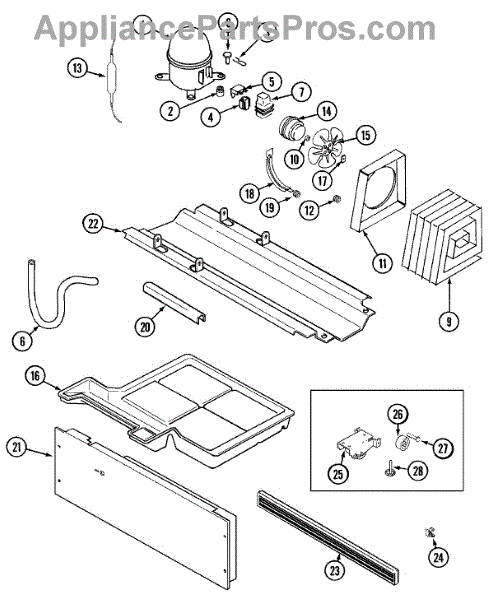

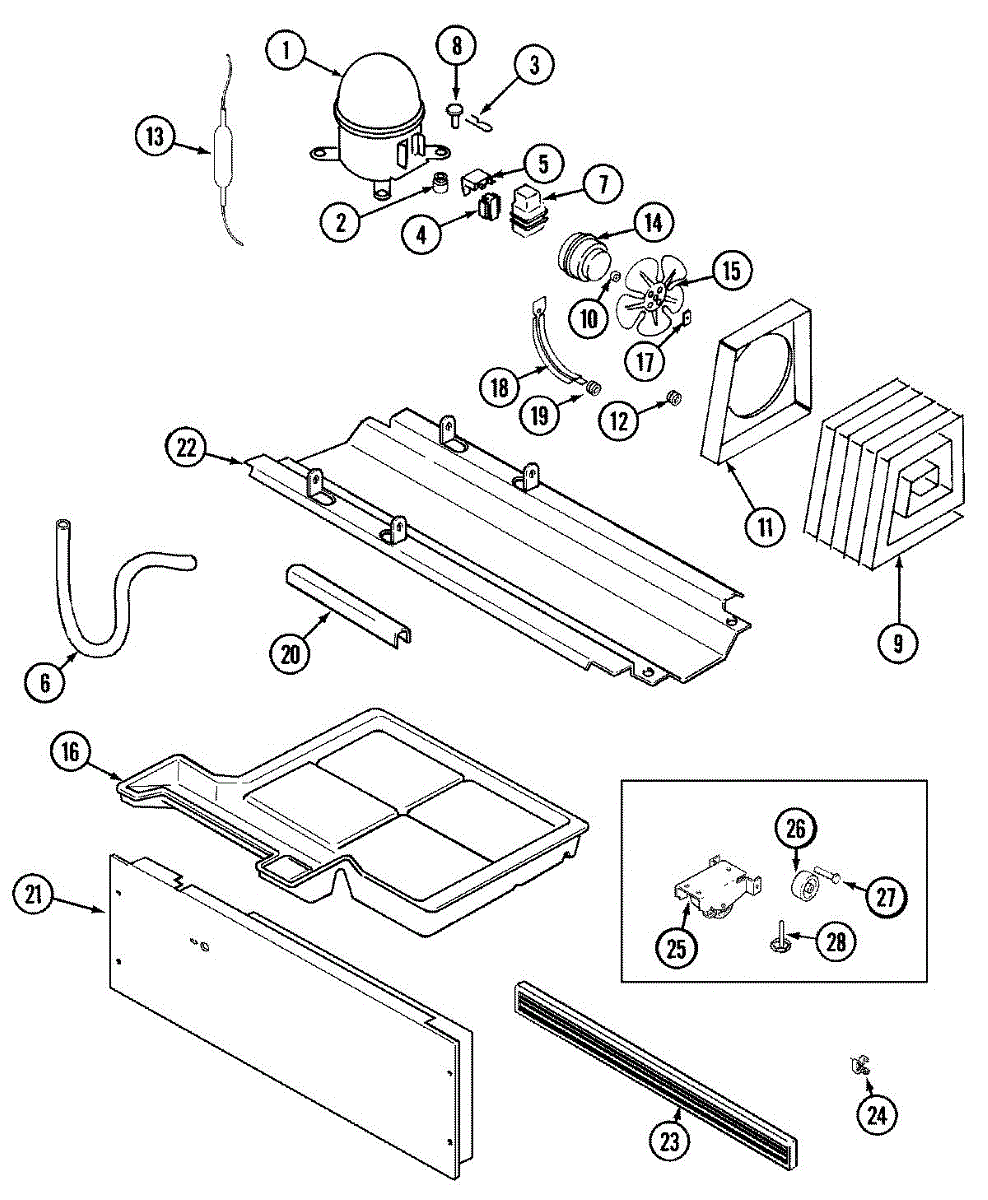

Parts for Admiral GT1510PXCA: 01 - Compressor Parts

Fix a refrigerator that won't cool or clicks repeatedly. This compressor start relay powers the start winding to help your compressor run. DIY repair.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

Size: 8-32 x .312 inch.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Refrigerator runs warm or freezer not cooling properly? The condenser fan motor circulates air over the coils. DIY repair takes 15-60 minutes with basic tools.

Fix a refrigerator that's not cooling properly with a new condenser fan blade. Restores airflow across condenser coils for consistent temperatures.

Replacement mounting screw for securing freezer panels, brackets, and components. Restores proper fastening where original screw is missing, stripped, or damaged.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Cushions refrigerator components at mounting points to reduce vibration and rattling. Replace if worn, cracked, or missing to restore quiet operation.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Panel fastener screw for refrigerators and freezers. Secures cabinet panels, trim, and components. Replace if missing, stripped, or damaged.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a small roller wheel designed to support and allow smooth movement of components inside a refrigerator cabinet. It typically mounts on a bracket to help drawers, shelves, or other sliding parts glide easily. Replace this roller if a drawer or shelf is difficult to slide, makes scraping noises, or the wheel is cracked, flat-spotted, or no longer turns freely.

This is a replacement pin wheel that secures and guides a mating linkage or small shaft in the appliance, restoring proper alignment and smooth movement. A direct-fit replacement when the original wheel is cracked, worn, or missing. What it does

• Holds and stabilizes a small rotating shaft or linkage to maintain proper component alignment
• Allows smooth transfer of motion between mating parts to prevent skipping or binding
• Worn or broken pin wheel can cause noise, intermittent movement, or improper function of the associated mechanism
• Small, inexpensive part that prevents further wear to adjoining components when replaced promptly

• One pin wheel

• Disconnect power to the appliance before starting any repair
• Access and removal often require removing a panel or nearby components; keep fasteners organized
• Inspect the mating shaft/clip and replace any damaged hardware for reliable operation
• Tighten and test moving parts by hand before restoring power; follow OEM service manual steps
