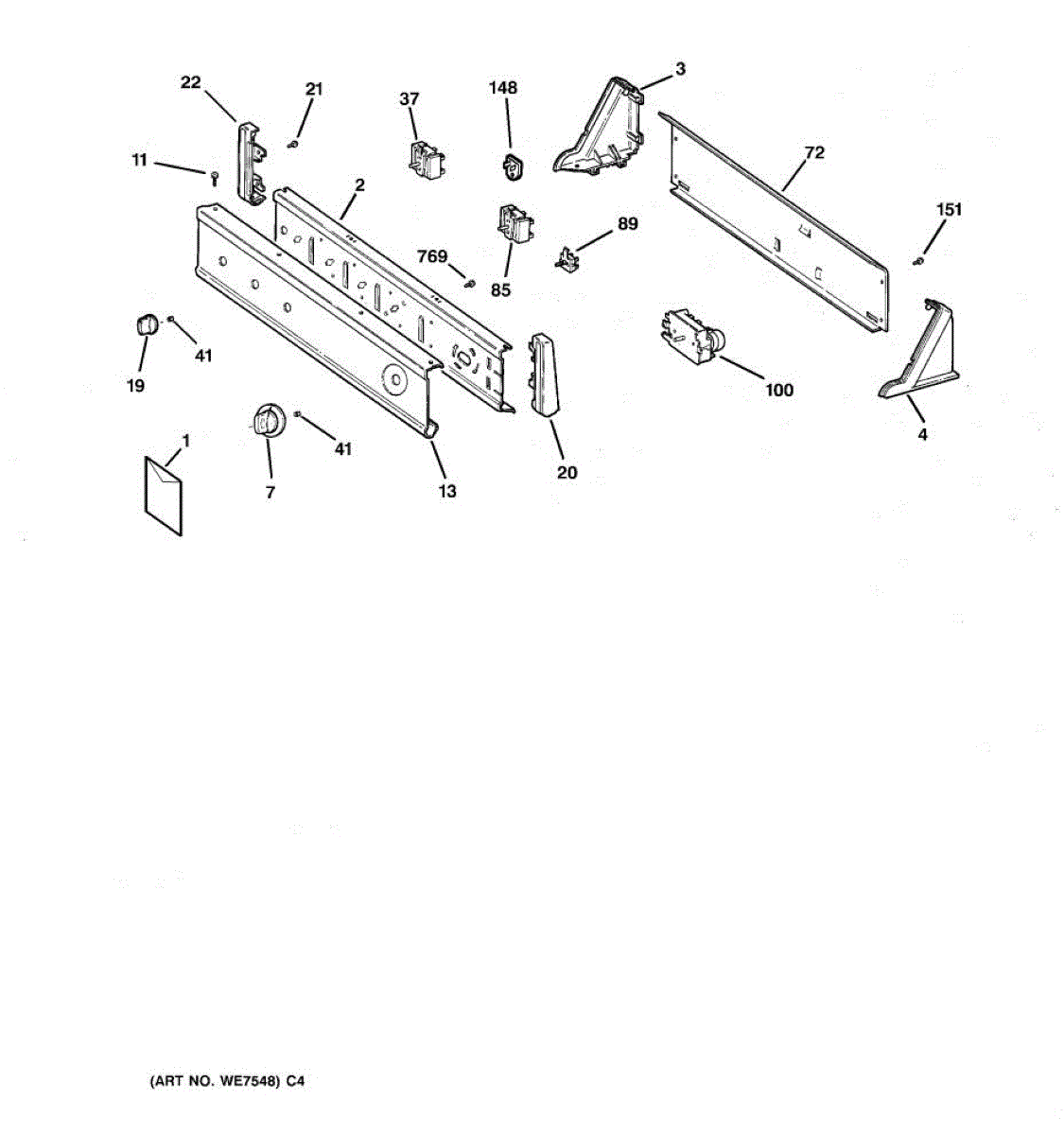

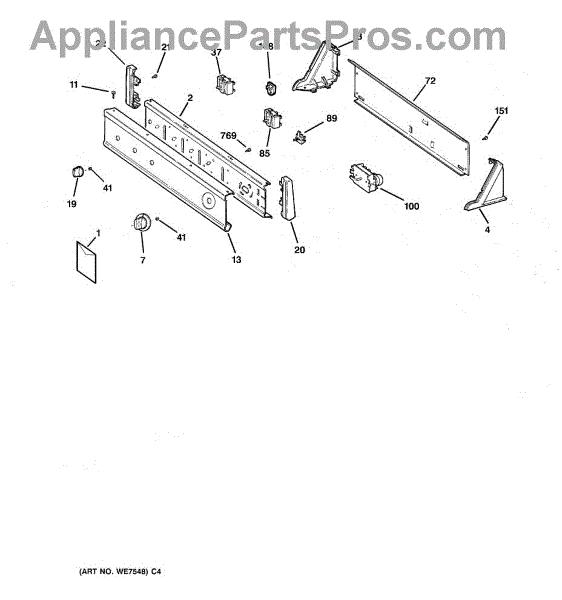

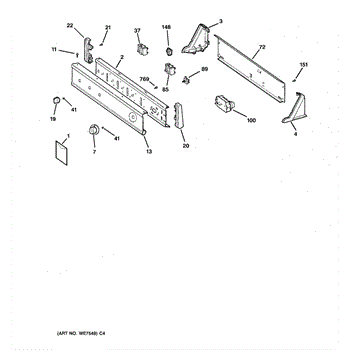

Parts for Ge NVLR333EV0AA: 01 - Control Assembly Parts

Color: Almond. This is the left side end cap. For right side use WE19X1003.

Color: Almond. This is the right side end cap. For left side use WE19X1002.

Size: 8-18 AB FLT 5/8.

This Rotary Start Switch is an OEM replacement part for GE dryers It is responsible for initiating the dryer's operation when the user turns the knob to the desired cycle and presses the start button. The rotary start switch is typically located on the control panel of the dryer, where the user interacts with the various settings and functions.
The GE dryer rotary start switch can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This part fixes the following symptoms:

• The dryer not starting or responding when the start button is pressed
• The start button feeling loose or not engaging properly
• The dryer starts intermittently or only when the start button is held down
• The dryer starts but immediately stops once the start button is released
• The start switch becomes unresponsive or difficult to turn
• The dryer not cycling through the different drying modes or settings

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dryer timer controls the length of the drying cycle and directs power to key circuits. Replacing a worn timer restores reliable cycle advance and proper shutoff so the dryer doesn't run too long or stall.

• Advances the dryer through the selected timed cycle and turns it off at the end of the set time
• Routes power to the drive motor and heating circuit through internal switch contacts
• Coordinates cycle selection via the control knob attached to the timer shaft
• Failure symptoms include: cycle not advancing, running continuously, won't start on certain settings, or intermittent/no heat

• Disconnect power before servicing; if gas, also shut off the gas supply
• Access the control panel and remove the rear cover to reach the timer
• Photograph/label wires and transfer them one by one to matching terminals on the new timer
• Mount the timer securely, align the shaft, reinstall the knob/dial, and test all cycle positions

The Timer Resistor is an OEM part for GE dryers. It works in conjunction with the dryer's timer to regulate the duration of the drying cycle, ensuring that clothes are dried for the appropriate amount of time.

Causes of a bad timer resistor can include electrical surges, prolonged exposure to high temperatures, or general wear over time. These factors can result in the resistor losing its effectiveness or failing completely.

Symptoms of a bad timer resistor include:

• The dryer running for too long or too short a time
• Inconsistent drying times
• The timer not advancing or getting stuck
• The dryer not starting or shutting off prematurely

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
