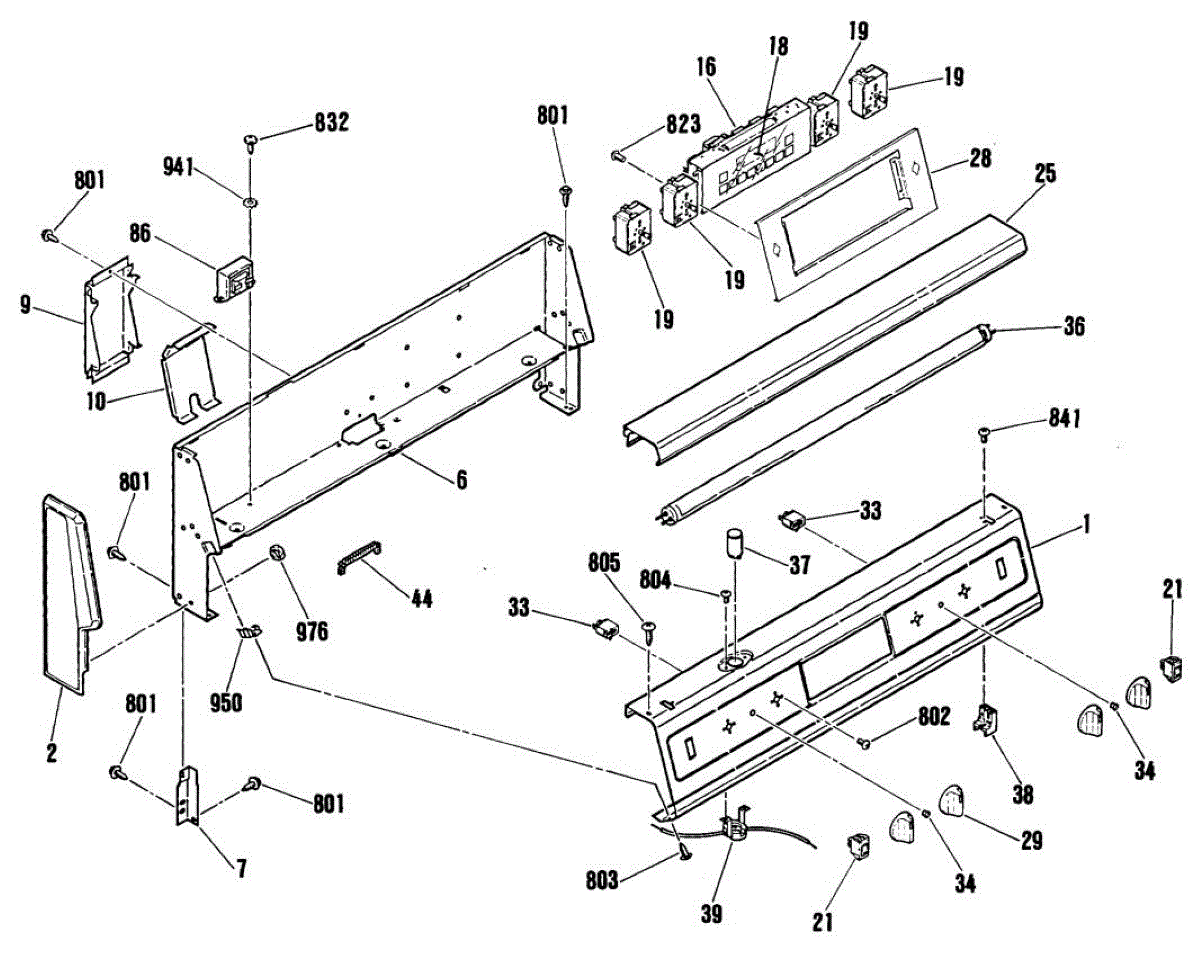

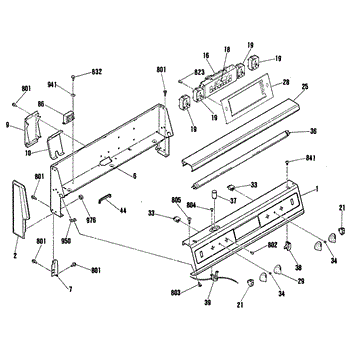

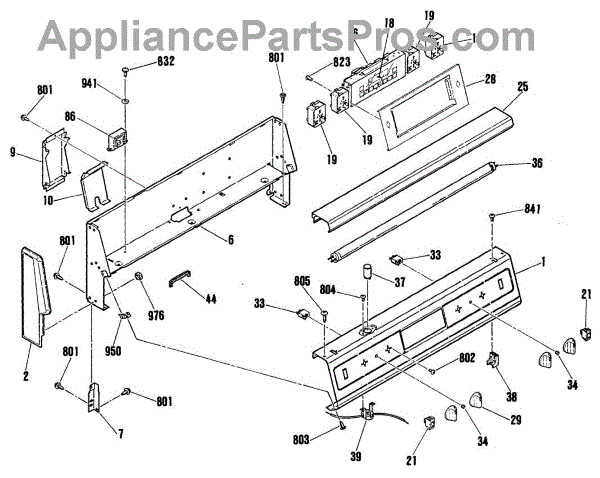

Parts for Ge RB767GN3: 01 - Section1 Parts

Old switch 0321211.

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

Spacer bumper for electric ranges. Installs to provide proper spacing and cushioning between components. Replace if cracked, broken, or missing.

ST10-16 X 7/16"

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Nickel

Nickel

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

This wire harness connects the appliance's door lock switch to the main control, restoring the electrical connection needed for the lock/switch to communicate with the control board. Replaces a damaged or frayed lock-switch lead for reliable operation. What it does

• Provides the electrical path between the door lock/latch switch and the control board.
• Restores proper signaling when a worn or broken harness causes lock faults or prevents cycle start.
• Helps stop intermittent door-lock errors caused by corroded or broken wires or terminals.
• Used when the door will not lock, the unit won't start, or the control reports a lock/switch fault.

• One lock switch wire harness.

• Disconnect power to the appliance before starting any repairs.
• Verify connectors match and seat fully; replace any damaged terminals or housings.
• Handle the lock assembly and connectors gently to avoid damaging the door latch or harness.
