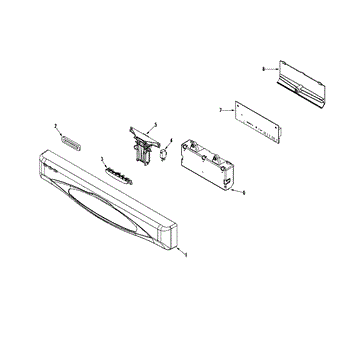

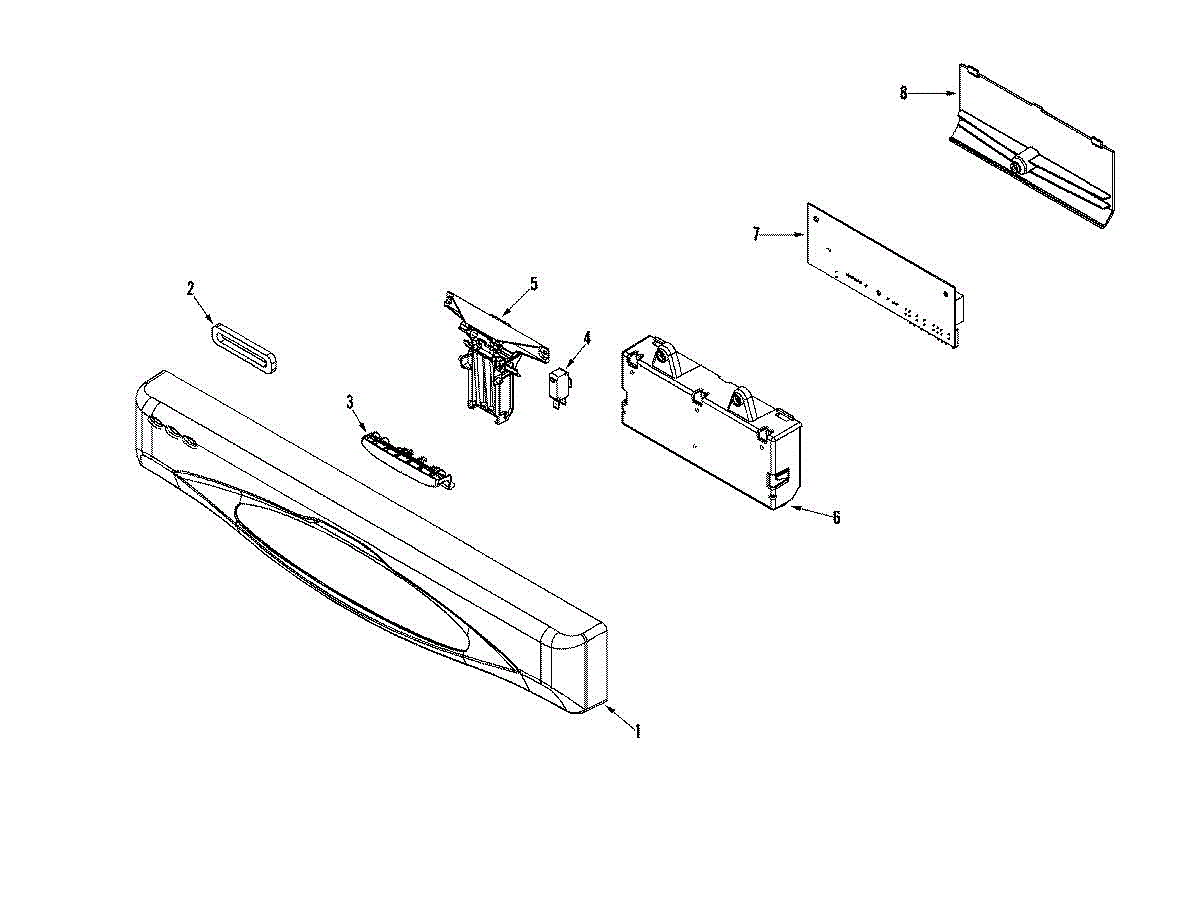

Parts for Maytag MDB4651AWQ: 01 - Control Panel Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: Bisque

Specs: No.8X1/2 HEX WASHER HEAD

Control buttons acting erratic or not responding? This dishwasher control panel vent seal blocks moisture and dust that cause button failure. Easy install.

Fix a broken or cracked dishwasher door handle that won't latch or close properly. This door latch assembly restores secure closure. DIY install in 15-30 min.

Door won't latch or stay closed? This dishwasher door latch assembly secures the door and activates the safety switch. DIY-friendly repair in 30 minutes.

This control board housing secures and protects the washer's electronic control board, keeping circuitry stable and shielded from moisture and debris for reliable operation. It fits into the console area and supports proper control panel alignment. What it does:

• Holds and protects the electronic control board inside the console from impact, dust and moisture.
• Keeps the control board properly positioned for reliable electrical connections.
• Helps prevent control panel wobble or misalignment that can cause button or dial issues.
• Commonly replaced when housing is cracked, broken mounting tabs fail, or board access is needed.

• 1 control board housing

• Disconnect power and water to the appliance before beginning any repair.
• Handle the control board and housing carefully to avoid damage to connectors or circuit components.
• Use appropriate tools to remove console components; replace damaged mounting tabs and secure all fasteners.
• Discharge any capacitors and follow the board manufacturer's ESD/safety recommendations.

Specs: No.8X1/2 HEX WASHER HEAD

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This electronic control board manages oven functions and user controls so your range heats and operates according to selected settings. It restores digital controls, timing, and display responsiveness when the control assembly fails. What it does:

• Receives input from the control panel and signals the oven's heating elements, broil, bake and other functions.
• Controls the oven's temperature regulation, timers and clock display.
• Common symptom: oven won't start or respond to button presses.
• Common symptom: display is blank, shows error codes, or timers don't work.

• One electronic control board

• Disconnect power at the breaker or unplug the appliance before servicing.
• Handle the board carefully and avoid touching components; use anti-static precautions if available.
• Reassemble panels and secure wiring before restoring power; test functions after reconnection.

Fix a dishwasher that won't start or respond to buttons. This electronic control board restores cycle selection and timing. Moderate DIY repair.
