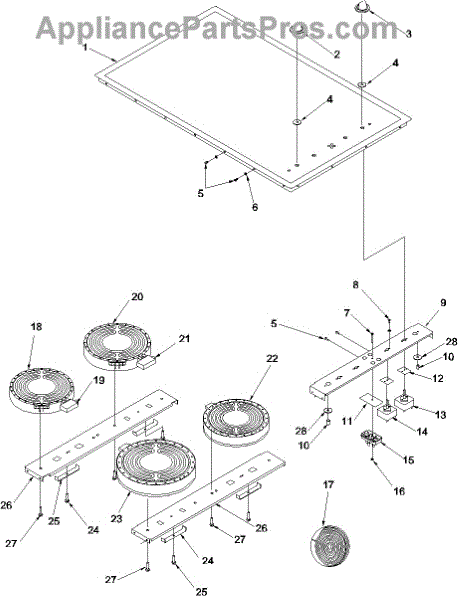

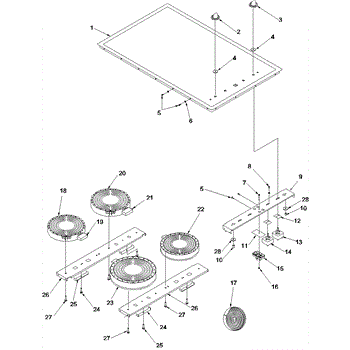

Parts for Amana AK2T36E4 / P1143708N E: 01 - Cooktop Assembly Parts

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

Size: 8-32 x 1/4 inch.

This surface burner infinite switch sits behind the knob and regulates power to the cooktop/range element. Replacing a failed switch restores accurate heat settings so the burner can turn on, modulate properly, and shut off as expected.

• Regulates on/off cycling of the surface element to achieve the selected heat level
• Sends power to the burner based on knob position
• Common failure symptoms: burner won't heat, only runs on high, won't shut off, or heats erratically
• Knob turns but the burner does not respond

• Disconnect power at the breaker before servicing; surface elements operate at high voltage
• Pull off the knob and remove the control panel/backguard as needed to access the switch
• Transfer wires one at a time from the old switch to the matching terminals on the new switch
• Align the shaft to fit your knob, reassemble the panel, restore power, and test operation

This dual infinite switch kit replaces the pair of infinite switches that control surface-burner heat on compatible electric ranges, restoring smooth, adjustable burner temperature and reliable heat response for proper cooking performance. What it does

• Replaces the infinite switches that regulate power to surface burners for precise heat control.
• Fixes symptoms like burners that won't heat, won't change temperature, or only operate on a single setting.
• Addresses intermittent or inconsistent burner output and erratic control behavior.
• Restores proper knob-response when the original switch fails or loses contact.

• Disconnect power at the breaker before accessing the range back or control panel to avoid shock.
• Handle wiring terminals carefully; match wires by color/position and secure connections firmly.
• Test burner operation after installation and reassemble panels per the service manual.

A small fastening nut that secures the top pilot assembly on gas ranges and ovens, keeping the pilot tube and components properly positioned for reliable ignition. Use when the original nut is stripped, loose, or missing. What it does:

• Secures the top pilot/pilot tube to the burner assembly so the pilot remains correctly aligned.
• Helps maintain a stable pilot flame by keeping components from shifting.
• Commonly replaced when the pilot assembly is loose, the pilot won't stay lit, or there is visible wear on the nut.
• Simple replacement part that restores proper mechanical fastening for the pilot.

• Turn off gas supply and power to the appliance before beginning any work.
• Use the correct-sized wrench or socket to avoid rounding the nut; tighten just until secure — do not overtighten.
• Inspect pilot tube and surrounding fittings for damage or leaks when replacing this nut.

This is a one inch piece of tape

Restore reliable, even heat to a single cooking zone with this surface heating element. It replaces a failed top burner element on an electric range or cooktop so pots and pans heat consistently for everyday cooking. What it does:

• Supplies controlled heat to one cooktop burner zone
• Helps resolve: burner won't heat, intermittent heating, or very slow heat-up
• Can address uneven heating or visible damage to the element
• Replaces an open/failed element to restore normal cooking performance

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model's service manual; support the cooktop if lifting a glass top
• Note wire locations and transfer connections one at a time to the new element
• Secure the element with existing brackets/clips as designed, then test operation before reassembly

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface heating element replaces a damaged or non-working top burner on compatible electric ranges, restoring even cooking performance and reliable heat for everyday pots and pans. What it does:

• Provides direct heat to cookware on the cooktop so burners reach cooking temperature
• Replaces a cracked, broken, or non-heating top burner element
• Fixes symptoms like a burner that stays cool, heats intermittently, or heats unevenly
• Works as a direct replacement for the listed part when the element is the failed component

• Disconnect power to the appliance at the breaker or unplug the range before starting any work
• Allow the cooktop and element to cool completely; handle carefully to avoid cuts from edges
• Reconnect wires to the matching terminals and secure the element in the appropriate retainer;
