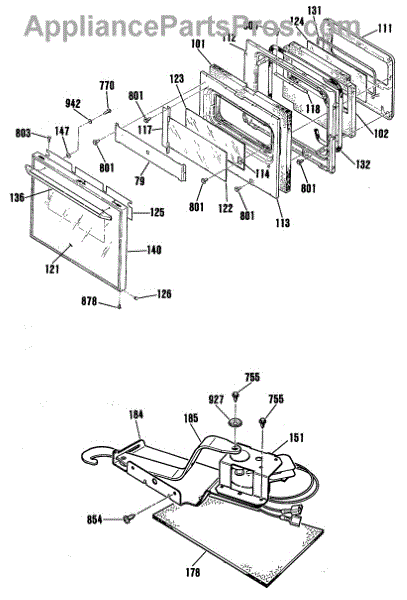

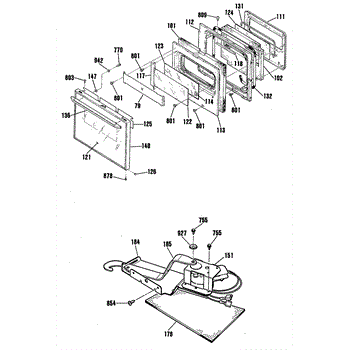

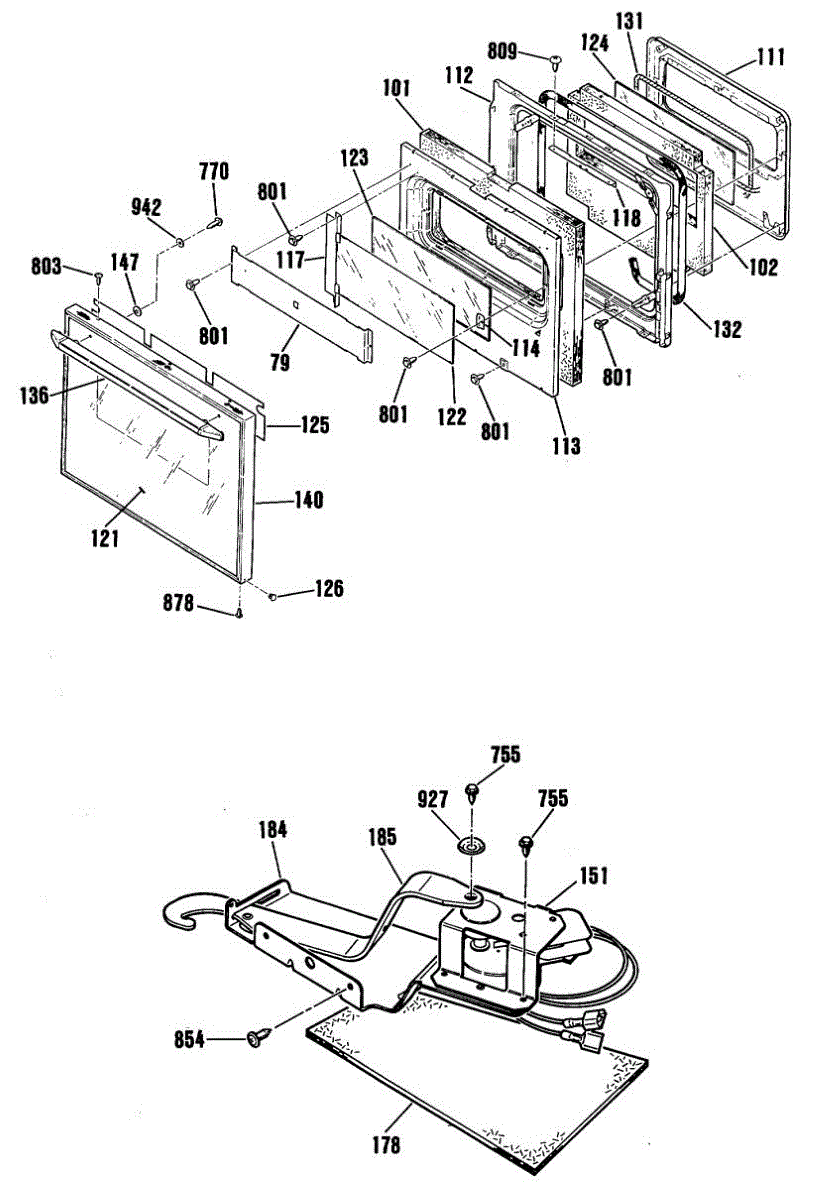

Parts for Ge RK736GP5BG: 01 - Section1 Parts

Replaces worn, damaged, or missing insulation inside your oven door. Installs between inner and outer door panels to maintain heat efficiency.

Inner door panel lining for ovens and ranges. Replaces cracked, warped, or damaged interior door trim. Restores door appearance and structure.

Retainer secures glass panel in oven door. Replace if cracked, broken, or missing to properly hold door glass in place and restore door integrity.

Structural support plate that reinforces the oven door lining. Replace if bent, cracked, or causing door misalignment. Installs inside door cavity.

Intermediate glass panel for oven doors. Installs between inner and outer door glass. Replace if cracked, shattered, or broken to restore appearance.

Seals and cushions the inner glass pane inside your oven door to contain heat and prevent rattling. Replace when cracked or flattened. Confirm fit.

Seals the oven door to retain heat and maintain even temperatures. Replace when torn, worn, or heat escapes. Confirm fit with your model number.

Plastic spacer that fits between range door panels to maintain proper spacing. Replace if cracked, broken, or missing to restore door alignment.

Oven door won't lock for self-clean cycle? This door latch assembly secures the door during cleaning and reports lock status. Moderate DIY repair.

Oven door won't close or latch stuck after self-clean cycle? This door lock plate secures the latch mechanism. Common DIY fix for stuck oven doors.

Replaces the latch arm that engages your oven door lock mechanism during self-clean cycles. Order a new lock lever if yours is broken or worn.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Mounting screw for gas ranges and ovens. Secures panels, components, or brackets during installation. Replace if missing, stripped, or damaged.

Includes 12 washers.

This washer secures components inside your range. Replace if the original is lost, stripped, corroded, or damaged during service or repair work.

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

• Routes power and signal between the control board and the door lock motor so the latch can engage and release.
• Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
• Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
• Helps restore proper oven or range door locking during self-clean or cook cycles.

• One lock motor wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
• Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.
