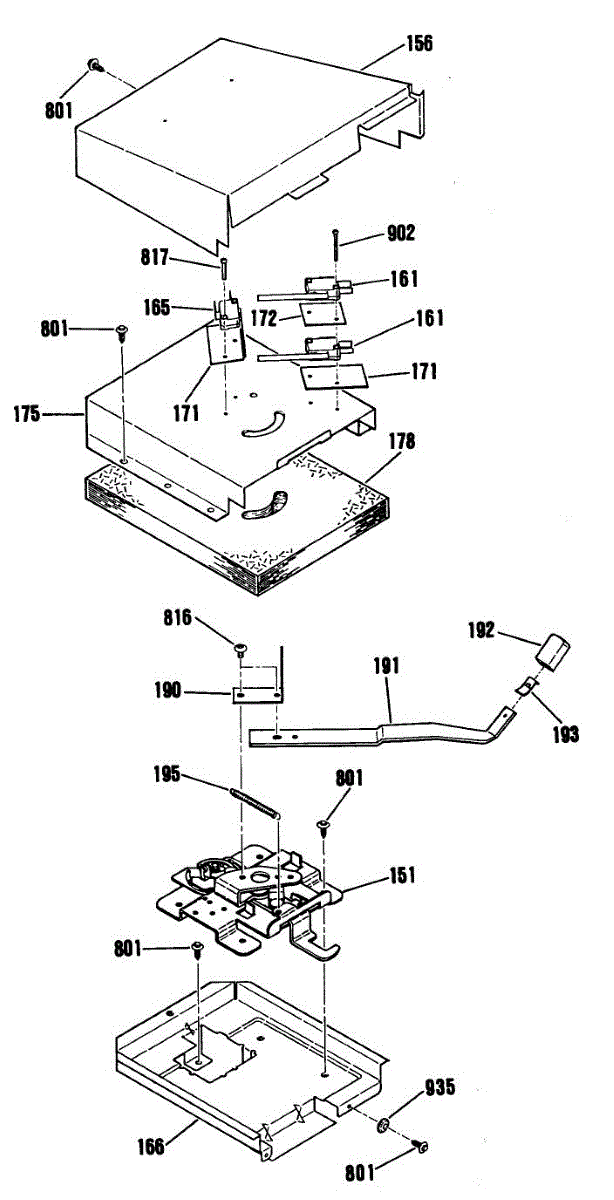

Parts for Ge JGBP19GEV1WH: 01 - Section1 Parts

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This spark module generates the high-voltage pulses that ignite the surface burners on your gas range or cooktop. Replacing a weak or failed module restores reliable clicking and ignition on the burners served by this 2-output (2+0) circuit. What it does:

• Generates high-voltage pulses to the surface-burner igniters when a control knob is turned to ignite
• Controls spark for two burners (2+0 configuration)
• Common failure symptoms: no clicking/spark on the affected burners, intermittent/weak spark, or needing a match to light

• 1 spark module

• Disconnect electrical power and shut off the gas supply before servicing
• Access the module (typically beneath the cooktop or behind the control panel) and label/photograph wiring for reference
• Transfer wires one at a time; ensure high-voltage leads are fully seated and the module is properly grounded
• Mount securely, reassemble, restore utilities, and test ignition on both burners

• "2+0" denotes a two-outlet surface-burner spark module; replace with the same configuration as the original

• A failed module typically affects all burners it serves; if only one burner won't spark, inspect that burner's igniter and switch first

ST10-16 X 7/16"

ST10-16 X 7/16"

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas
