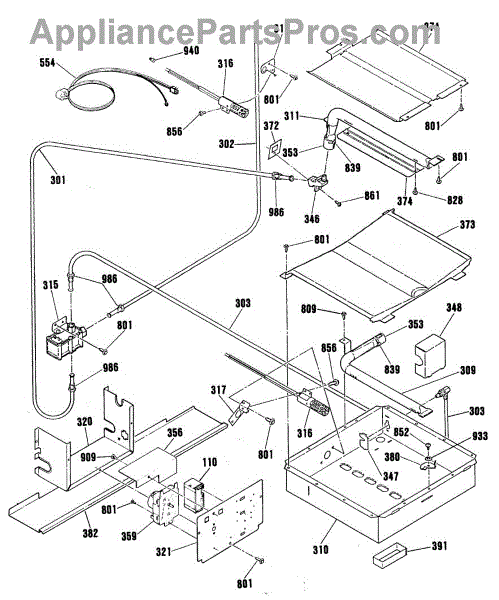

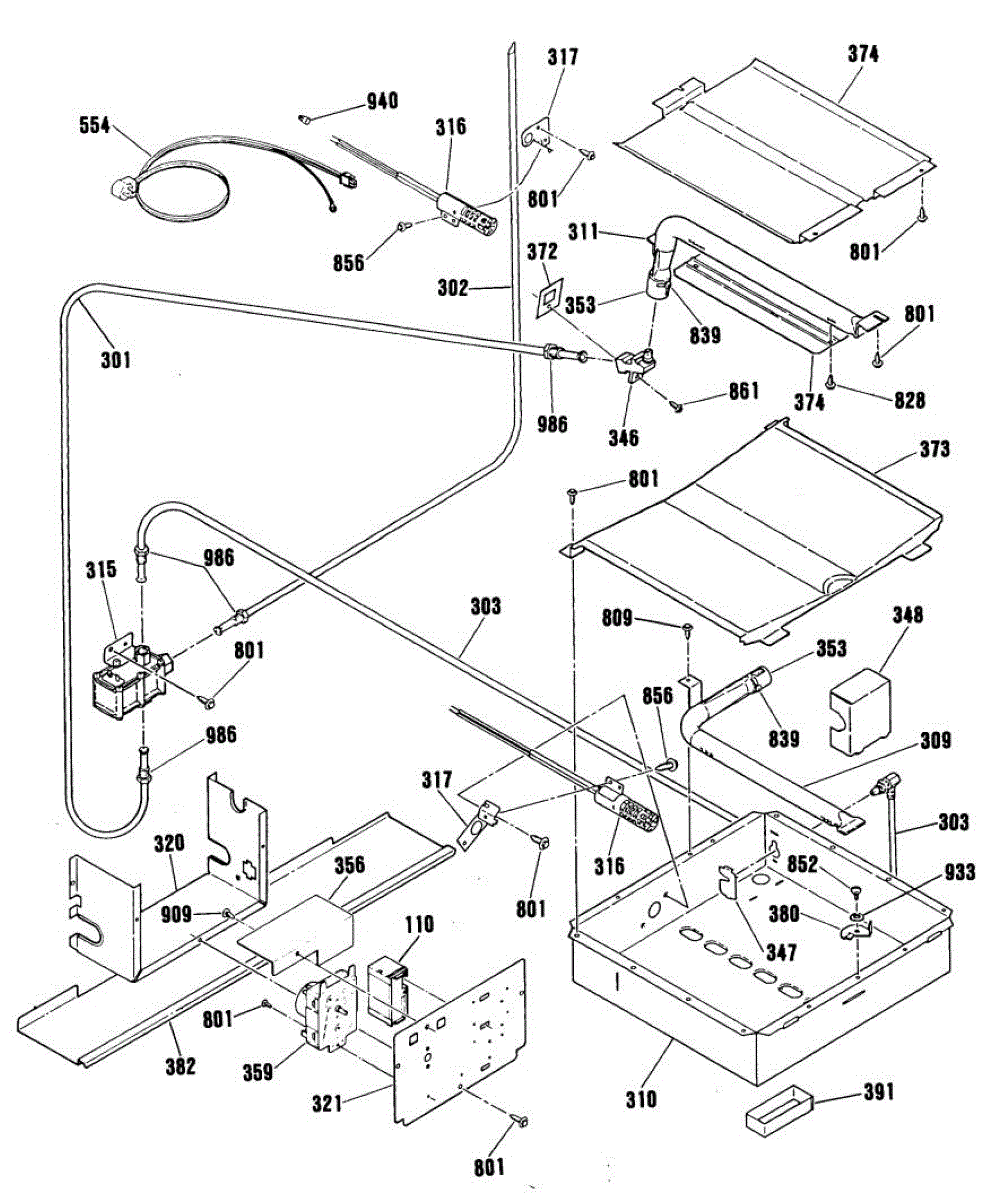

Parts for Ge JGBP19GEV1WH: 03 - Section3 Parts

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This mechanical oven timer replaces a worn or non-functioning control that manages bake/clean cycles and timed bake functions so the oven runs when you want it to. It restores reliable timing and manual cycle selection. What it does:

• Advances and times oven bake/clean or timed-bake cycles
• Engages/disengages oven operation based on timer setting
• Helps stop the oven at the end of a timed cooking cycle
• Commonly replaces units that won't advance, won't keep time, or have broken knobs

• One mechanical oven timer assembly

• Disconnect power before servicing to avoid shock or injury
• Access typically requires removing the oven control panel or back panel; handle glass and bezels carefully
• Verify knob alignment and timer calibration after installation

This broiler burner baffle directs heat and flames across the broiler chamber to promote even cooking and help protect the burner from drips and debris. It's a simple, durable sheet metal part used in gas broilers. What it does:

• Redirects and evens heat distribution under the broil pan for more uniform browning
• Shields the burner from food drips and grease to reduce flare-ups and clogging
• Helps maintain proper burner flame pattern for consistent broiling
• Can resolve uneven broiling, excessive flare-ups, or burner flame irregularities when worn or damaged

• Disconnect power to the appliance and shut off gas supply before servicing
• Allow the range to cool completely; use gloves to avoid sharp edges
• Remove broiler pan and any obstructions, then position the baffle so it seats over the burner supports as shown in your service literature

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

Nickel

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage

This is a package of twelve replacement nuts used to secure appliance panels and components. These genuine-style nuts restore fastener retention to reduce looseness and rattling and help keep parts aligned during operation. What it does:

• Secures panels, brackets, and fasteners to maintain proper component alignment
• Prevents vibration-related loosening that can cause noise or intermittent contact
• Replaces missing or damaged nuts that can allow parts to shift or fall off
• Used wherever the matching nut size and thread are required by the appliance

• Disconnect power (and gas, if applicable) before servicing the appliance.
• Verify the nut size and thread match the stud or bolt before installation.
• Hand-start threads, then tighten with the appropriate driver or wrench; avoid overtightening.
