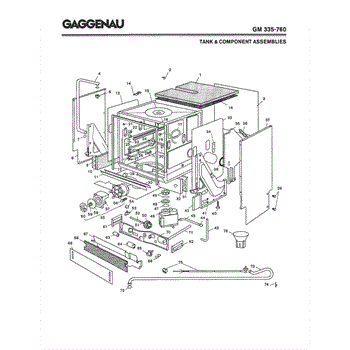

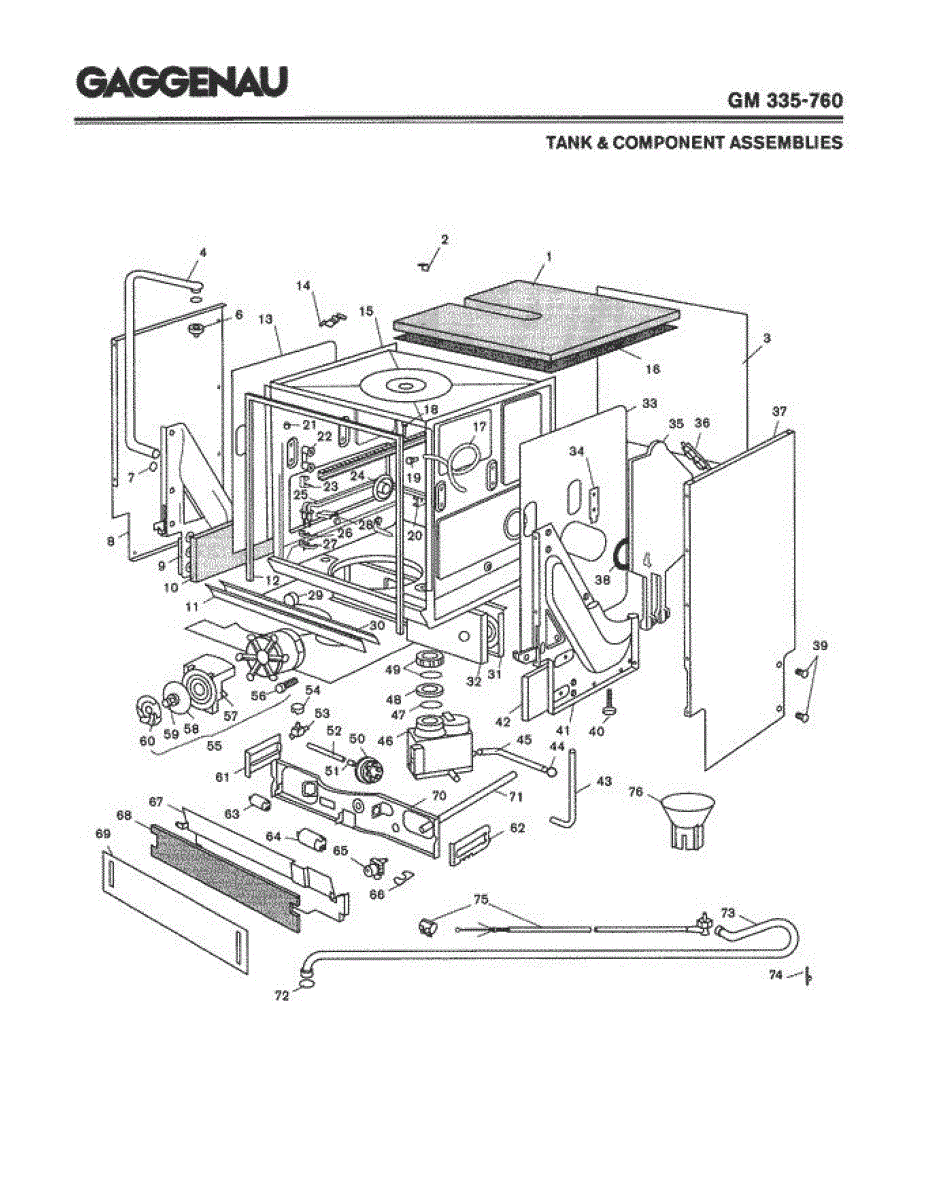

Parts for Gaggenau GM335-760: 01 - Tank & Component Assemblies Parts

This is a flexible rubber gasket that fits around the perimeter of the dishwasher door to create a watertight seal when the door is closed. It prevents water from leaking out of the tub during wash and rinse cycles. Replace this seal if you notice water pooling on the floor beneath the door, visible cracks or tears in the rubber, or if the gasket has become hardened and no longer conforms to the door opening.

This is a small black replacement pin used to secure internal components on compatible Bosch appliances. It restores proper alignment and movement where the factory pin has worn or broken. What it does:

• Secures and aligns moving parts or assemblies that rely on a press-fit or pivot pin
• Stops slop or misalignment caused by a worn or missing pin
• Helps restore normal operation of the affected mechanism without replacing larger assemblies
• Commonly used where a compact, non-corroding pin is needed

• Disconnect power to the appliance before starting any repair
• Handle small parts carefully; keep track of orientation and retainers for reassembly
• Use appropriate hand tools or pliers; avoid excessive force that could damage surrounding components

Rack support rail that mounts inside the appliance cavity to hold and guide racks. Replace if cracked, bent, or broken to restore proper rack support.

This cap seals a component in the closed position to help maintain proper operation and prevent leaks or unintended flow. It's a small replacement part that restores the original closure function. What it does

• Covers and seals the closed position of the associated valve or actuator, helping prevent leaks.
• Restores proper stopped/closed operation when a worn or damaged cap allows movement or leakage.
• Commonly replaced when the cap is cracked, missing, or no longer seats securely.
• Helps reduce symptoms such as visible drips, inability to maintain a closed seal, or loose-fitting closure pieces.

• Disconnect power and turn off water/gas before servicing the appliance.
• Remove any surrounding trim or retaining clips to access the old cap; note orientation for correct reassembly.
• Press or snap the new cap into place until fully seated; secure any clips or fasteners removed earlier.

This replacement cover is a protective housing designed to shield internal components and help maintain proper assembly alignment. It restores the original enclosure to keep parts secure and reduce exposure to debris. What it does:

• Covers and protects internal components from dirt and accidental contact
• Helps maintain proper alignment of the underlying assembly
• Reduces the chance of loose parts rubbing or causing noise
• Replaces cracked, broken, or missing covers that expose components

• One replacement cover

• Disconnect power and water before starting any repair
• Remove only the fasteners required to access the cover; keep hardware for reinstallation
• Align cover carefully and secure all mounting points to ensure a snug fit
• If any surrounding seals, gaskets, or clips are damaged, replace them to ensure proper fit and function

This mounting plate secures internal components to the appliance chassis for stable operation and alignment. It's a simple, durable replacement part when an original plate is bent, cracked, or missing. What it does:

• Provides a flat, secure surface to fasten components and brackets
• Maintains proper alignment to prevent rubbing, vibration, or misfit
• Restores original mounting points after damage or corrosion
• Helps ensure connected parts operate quietly and reliably

• One mounting plate

• Disconnect power before beginning any repair to avoid shock
• Inspect matching fasteners and replace any that are damaged or missing
• Use basic hand tools; avoid overtightening to prevent warping the plate

Gasket creates an airtight seal to prevent leaks. Replace if cracked, brittle, or causing leaks. Verify fit with your model number before ordering.

This ring nut secures the water softener connection on compatible Bosch appliances, holding the softener valve or housing in place to help maintain a tight, leak-resistant seal. It's a simple replacement to restore proper fit and function. What it does:

• Threads onto the water softener housing or valve to hold components securely in position
• Helps compress the sealing surfaces and O-ring for a water-tight connection
• Common repair for leaks or loose softener fittings
• Restores proper alignment of the softener assembly after disassembly or service

• Turn off the water supply before servicing; relieve any pressure and disconnect electrical power if required
• Inspect and replace any O-rings or seals when installing the ring nut to ensure a proper seal
• Hand-start the threads, then tighten evenly; avoid over-tightening which can damage plastic fittings

This spring-style hose clamp secures flexible water hoses and drain lines to fittings to help prevent leaks and maintain proper connections. It's a simple replacement for worn or weakened clamps to restore a tight hose seal. What it does

• Applies even spring tension around a hose to hold it firmly on a barbed fitting
• Helps stop common symptoms like leaking at hose connections or loose hoses during operation
• Restores proper hose seating after corrosion, deformation, or loss of clamping force

• One spring-style hose clamp

• Use pliers designed for spring clamps to expand the clamp, then slide into position and release carefully
• Inspect the hose and fitting for damage; replace hose if cracked, brittle, or badly deformed
• Disconnect power and water supply before servicing to avoid electrical shock or flooding
• Dispose of the old clamp and any damaged hose pieces safely

Gasket seals connections to prevent leaks. Replace if worn, cracked, or leaking. Verify fit with your model number before ordering.

This dual water inlet valve controls water entry to the appliance, using two solenoids to manage separate fill lines for proper operation. Replaces a failed inlet valve to restore normal fill and water control. What it does:

• Opens and shuts water flow when the appliance calls for a fill
• Uses two solenoids to manage multiple fill paths or fill/softener circuits
• Commonly linked to no-fill, overfill, or continuous-fill symptoms
• Can stop water flow if a valve coil fails or the valve leaks

• Disconnect power and shut off the water supply before starting any repair
• Drain residual water from hoses and lines to avoid spills
• Handle electrical connectors carefully; match wiring and hose locations during reassembly
• Check for leaks after installation and restore power only when dry
