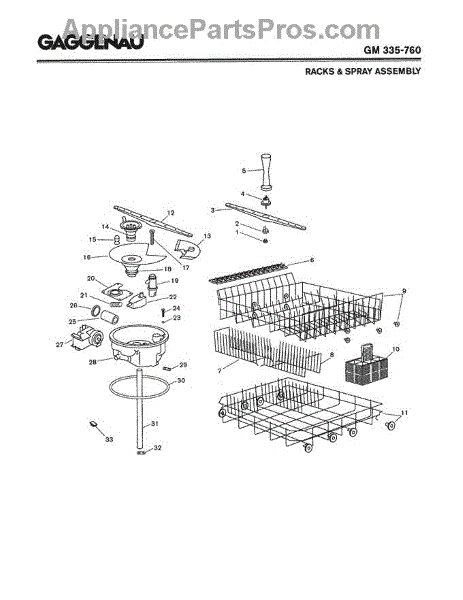

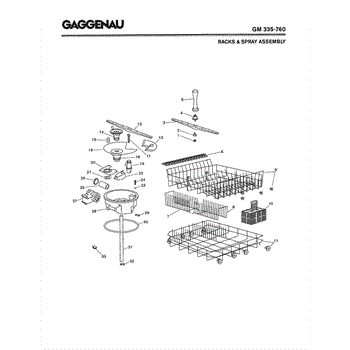

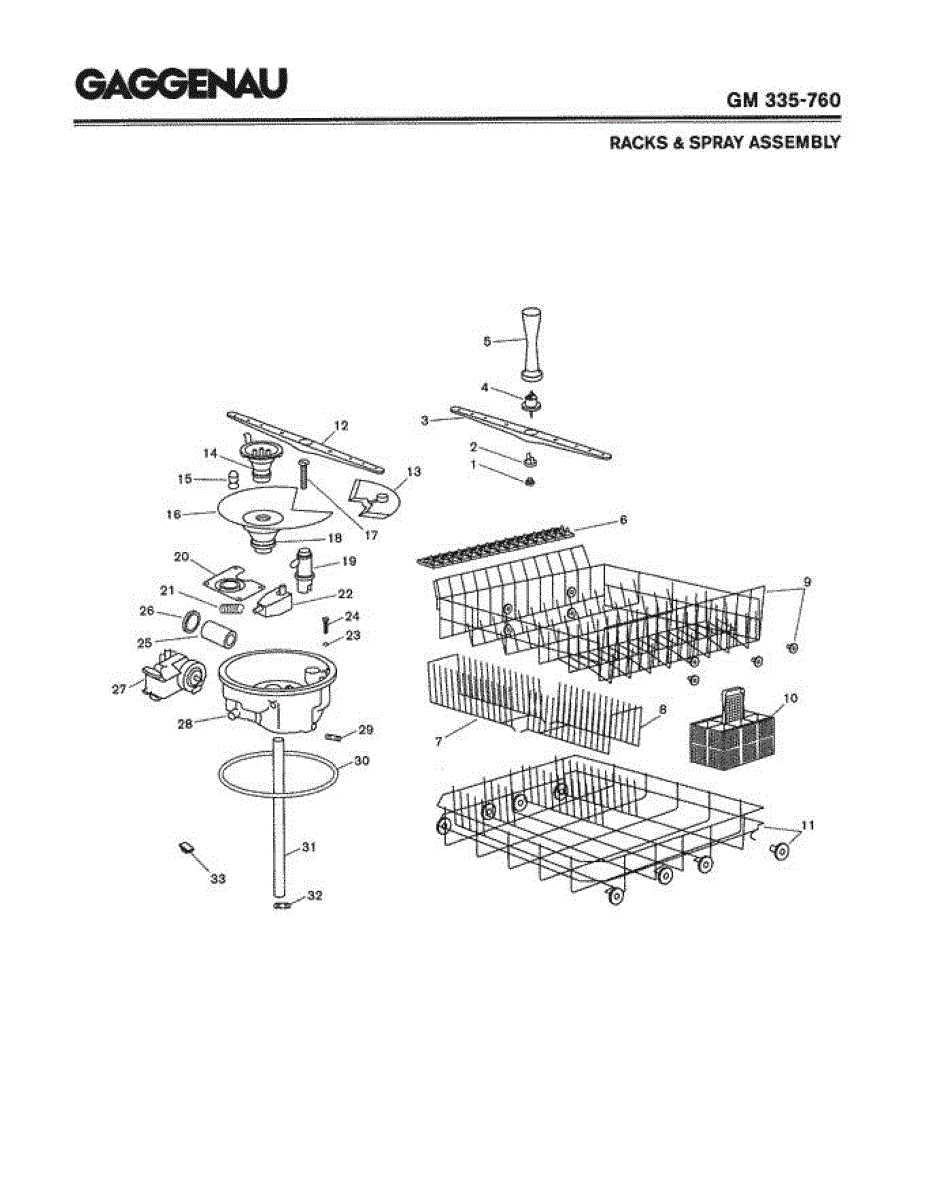

Parts for Gaggenau GM335-760: 04 - Racks & Spray Assembly Parts

This plate tray is a replacement rack insert that restores safe plate storage and loading in the dishwasher rack. It keeps plates upright and separated for effective cleaning and prevents shifting during cycles. What it does:

• Provides dedicated support for plates, keeping them upright and spaced for better water flow
• Replaces cracked, broken, or missing trays that allow plates to tip or collide
• Helps reduce noise from loose dishes and prevents plate-to-plate damage
• Fits into the existing dishwasher rack to restore original plate-holding function

• Disconnect power to the appliance before servicing and remove the rack for easier access
• Install by aligning with the rack slots or clips and snapping into place; no special tools typically required
• Inspect surrounding rack components for damage and replace if worn to ensure proper fit

This lower rack assembly replaces a worn or damaged lower dishwasher rack to restore stable support for dishes and cookware. It provides smooth rolling and secure placement to help the dishwasher hold and clean lower-basket items reliably. What it does:

• Supports plates, pots and larger items on the dishwasher's lower level
• Restores proper wheel alignment and smooth in-and-out movement
• Helps prevent tipping or shifting of dishes during wash cycles
• Works with the lower basket area to keep items positioned for effective cleaning

• Disconnect power and water supply before starting any repair
• Inspect existing mounting clips/wheels and transfer any reusable hardware
• Handle rack edges and rollers carefully to avoid damage to rack coating

This sump cover is the molded cover for the dishwasher pump/sump assembly that helps direct wash and drain flow and keeps debris away from the pump. Replacing a damaged cover restores proper water routing and component protection. What it does:

• Covers the pump/sump area to help keep food particles and debris out of the pump
• Directs water flow from the wash chamber into the drain/pump assembly
• Can resolve symptoms such as poor draining, unusual pump noise, or water pooling in the tub when cracked or broken
• Helps maintain correct sealing and alignment of sump components

• One sump cover

• Disconnect power to the appliance before beginning any service
• Access requires removing the lower kickplate and/or dishwasher tub base
• Inspect associated seals and fasteners; replace any damaged clips or gaskets for a proper fit
• Handle plastic parts carefully to avoid cracking; test operation after reassembly

This is a replacement sump mounting screw that secures the dishwasher sump/pump assembly, helping maintain a sealed, stable drain and pump connection. Use it when the original screw is missing, stripped, or corroded. What it does:

• Fastens the sump/pump housing to the dishwasher base to keep the pump assembly aligned and secure.
• Helps maintain the seal at the sump area when used with the correct O-ring (replace O-ring if damaged).
• Prevents leaks and vibration caused by loose or damaged sump fasteners.
• Restores proper mechanical connection after service or part replacement.

• One sump mounting screw

• Replace only with the exact OEM screw.
• Turn off power and water to the appliance before accessing the sump/pump area.
• Inspect the sump O-ring (referenced O-ring part) and replace if worn to ensure a proper seal.
• Use appropriate tools and hand-tighten to OEM torque recommendations; avoid over-tightening to prevent damage.

This rubber sump gasket seals the dishwasher sump to stop leaks and keep water contained in the drain/motor area. It restores a watertight seal to prevent water pooling and protect the motor assembly. What it does:

• Forms a seal between the sump and adjacent housing to prevent water leaks
• Helps stop water from pooling under the appliance or running into the cabinet
• Protects the motor and electrical components from moisture damage
• Can reduce unusual dripping or intermittent leaks from the dishwasher base

• Disconnect power and water supply before starting any repair
• Remove access panels and drain components to reach the sump area
• Inspect mating surfaces for residue or damage and clean before seating the gasket
• Seat the gasket evenly; reassemble panels and run a short test cycle to confirm there are no leaks
