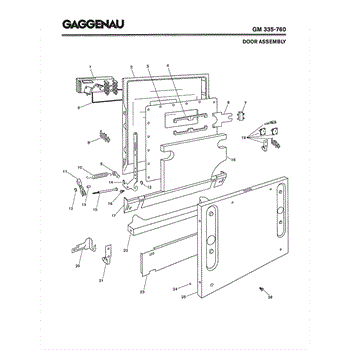

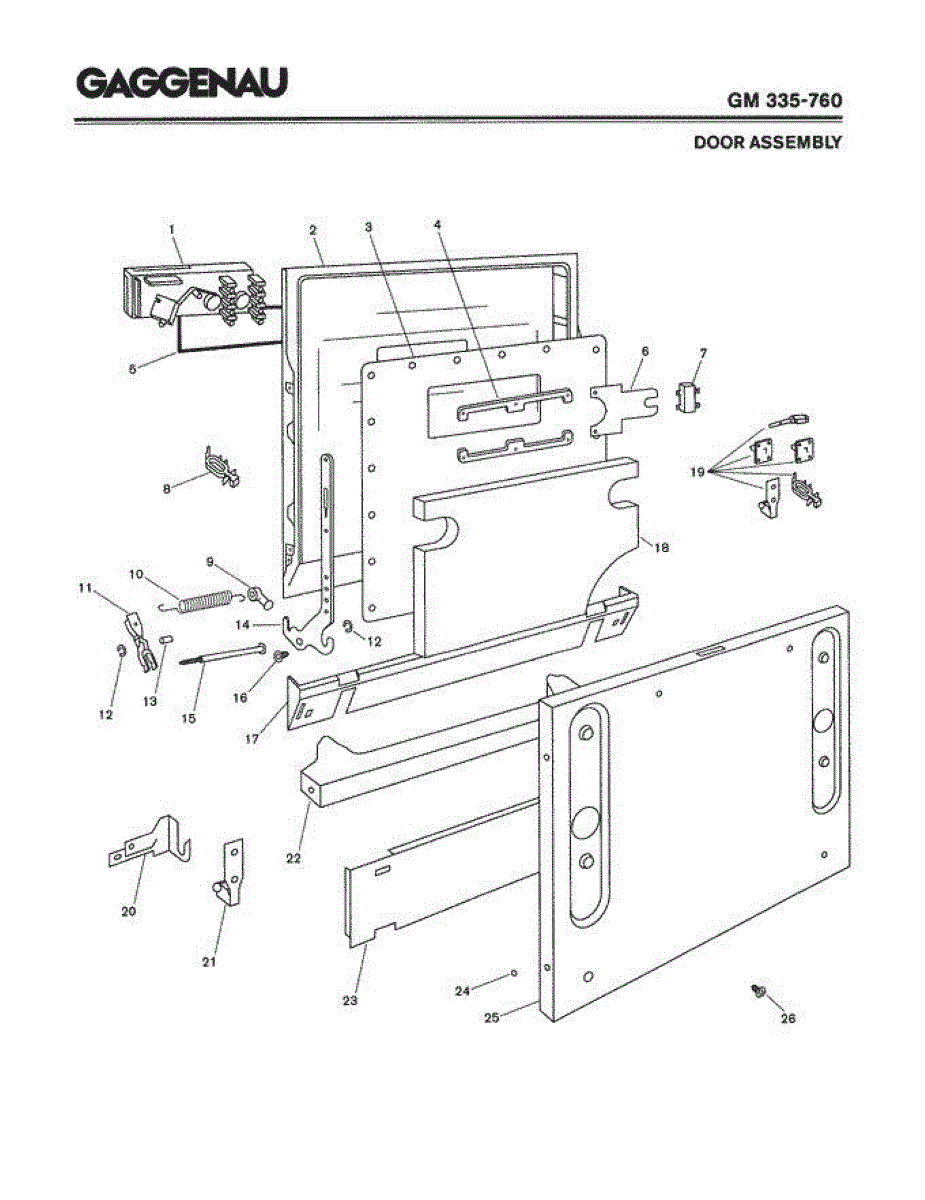

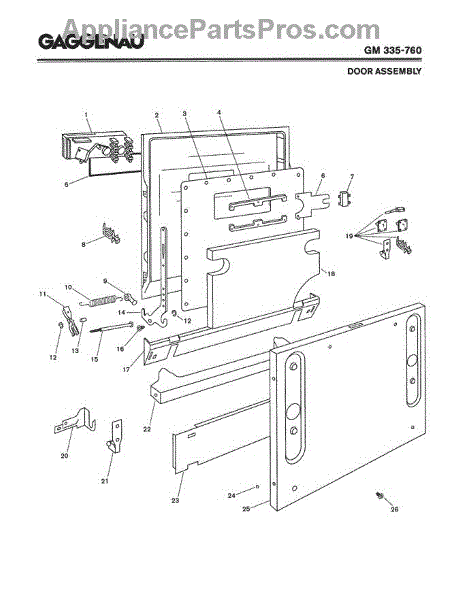

Parts for Gaggenau GM335-760: 02 - Door Assembly Parts

This hinge guide is the door support piece that helps keep the appliance door aligned and moving smoothly. Replacing a worn guide restores proper door tracking and reduces binding or uneven closing. What it does:

• Guides and supports the door hinge to maintain correct alignment during opening and closing
• Prevents door binding, rubbing, or catching on the cabinet or frame
• Helps reduce uneven wear on hinge components and preserves smooth operation
• Works as a direct-fit replacement when the original guide is cracked, broken, or worn

• One hinge guide as shown

• Turn off power and follow appliance-specific safety procedures before servicing
• Inspect surrounding hinge hardware and mounting points; replace damaged fasteners if needed
• Typically installs with basic hand tools; do not force parts—ensure proper seating before reassembly

This hinge spring holder secures the door hinge spring, keeping the spring aligned so the appliance door opens and closes smoothly. It restores proper spring positioning for reliable hinge operation and door alignment. What it does:

• Holds the hinge spring in place to maintain correct spring tension and positioning
• Helps prevent the door from sagging or not closing properly when the spring is displaced
• Reduces grinding or binding at the hinge by keeping the spring aligned
• Works with the hinge assembly to support consistent door movement

• Disconnect power to the appliance before starting any repair.
• Hinge springs can be under tension; handle carefully and use appropriate tools.
• Wear safety glasses and gloves to protect from sharp edges and spring release.

This door hinge pin is the replacement pivot pin that supports and guides an appliance door on its hinge, restoring proper alignment and smooth opening/closing. Use it when a worn pin causes sagging, sticking, or noisy movement. What it does:

• Acts as the pivot point for the door hinge to keep the door aligned and stable.
• Helps stop door sagging and uneven gaps that prevent proper sealing.
• Reduces sticking, scraping, or squeaking during opening and closing.
• Restores correct door movement when the original pin is bent, worn, or missing.

• One door hinge pin.

• Support the door before removing hinge fasteners to prevent injury or damage.
• Disconnect power and, if applicable, water supply before servicing appliances with electrical or water connections.
• Inspect hinge components and replace any worn screws, bushings, or brackets for best results.
• Use appliance-safe lubricant on hinge mating surfaces after installation; do not over-lubricate.

This right lower bracket is the molded support bracket that secures and aligns the appliance's lower assembly for stable operation and smooth movement. It replaces a broken or worn bracket to restore proper fit and reduce wobble. What it does:

• Provides a mounting point and alignment for the appliance's lower components
• Keeps the lower assembly stable to prevent sagging or uneven movement
• Helps restore smooth sliding or seating of the lower rack/assembly when bracket failure causes misalignment
• Stops noise caused by a loose or damaged lower support

• One right lower bracket

• Disconnect power and water before starting any repair
• Remove surrounding panels or racks as needed to access the bracket
• Typical install requires basic hand tools; keep fasteners from the original part for reassembly
• If the bracket is broken in multiple places, inspect adjacent supports and replace as needed

This left lower bracket secures the appliance's lower assembly, helping keep panels and components aligned for smooth operation and reliable support. It replaces a worn or damaged bracket to restore proper fit and reduce movement. What it does:

• Provides a secure mounting point for the lower section of the appliance
• Holds panels and adjacent components in proper alignment
• Helps prevent lower-panel vibration and rattling during operation
• A damaged bracket can cause lower-panel sagging, misalignment, or unusual noise

• Disconnect power and water before starting any repair
• Replacement typically requires basic hand tools; avoid forcing parts
• Inspect the corresponding right-side bracket and adjacent fasteners; replace if worn
• Tighten fasteners to snug only—overtightening can cause damage
