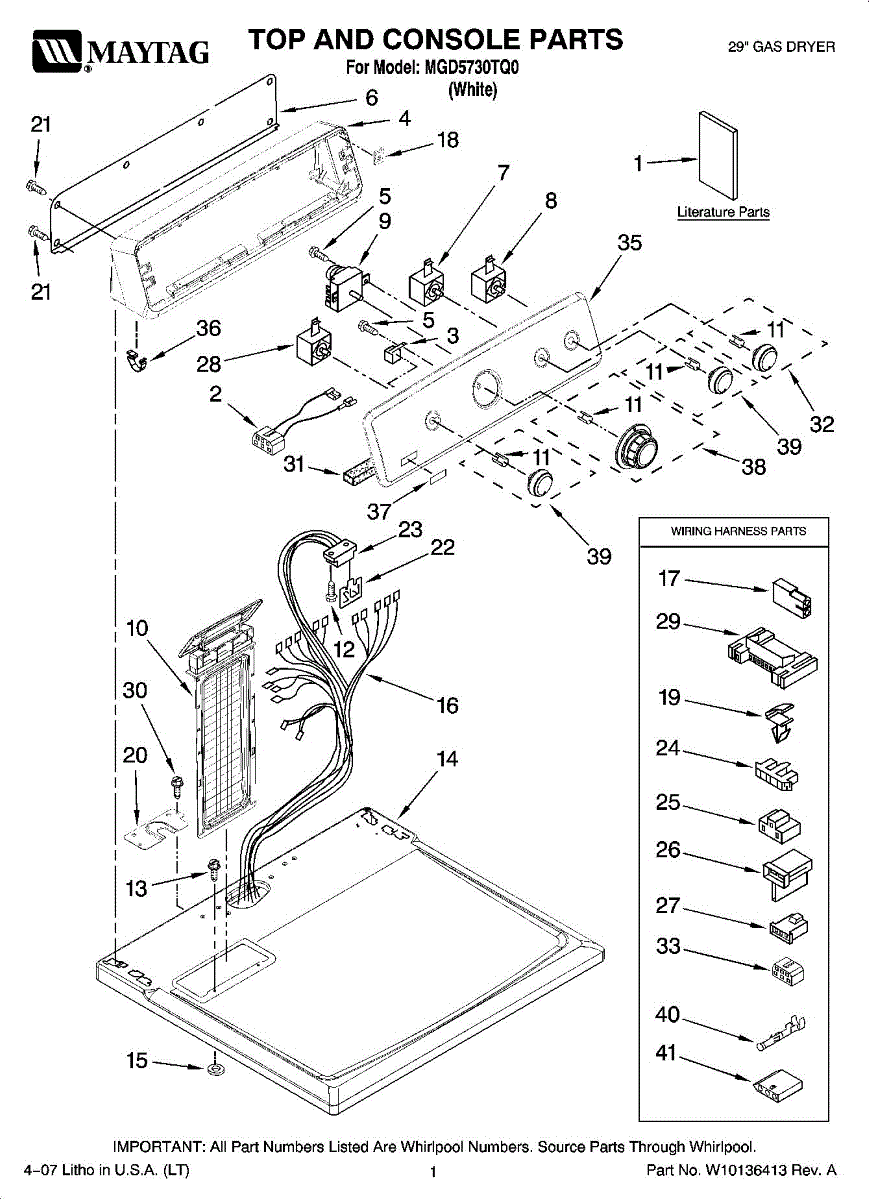

Parts for Maytag MGD5730TQ0: 01 - Top And Console Parts

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Dryer not heating properly or overheating? This temperature switch regulates heat levels to restore safe, effective drying. Simple DIY repair.

Dryer won't start when you press the button? The start switch sends the signal to begin the cycle. Simple 5-10 minute fix with basic tools.

Dryer won't stop running or timer knob doesn't advance? The timer control regulates cycle duration. Moderate DIY repair, about 30 minutes to replace.

This lint filter catches lint and debris during the drying cycle to maintain proper airflow through the dryer's exhaust system. A clogged or damaged filter restricts airflow, which forces longer dry times, increases energy costs, and creates a fire hazard from lint buildup in the vent system.

Replace this filter if the pull handle is broken or cracked, the mesh is torn or separating from the frame, rust or metal flakes are visible on the screen, or lint is passing through instead of being trapped. The filter is white, measures approximately 20 inches long (excluding the handle) by 8.5 inches wide, and slides directly into the lint filter slot -- no tools needed, takes under a minute. Clean the filter before every load for best performance.

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Dryer stops early on auto cycle but works on timed? The moisture sensor control board monitors dryness levels. DIY-friendly repair, 15-20 minutes.

Fix a dryer that won't start or has no power with this terminal block connector assembly. Common repair for electrical connection issues. Moderate DIY.

Wire harness connector that links the control to the buzzer for audible alerts. Replace if damaged, corroded, or missing to restore cycle completion tones.

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

Replace your dryer seal to prevent air leaks and improve drying efficiency. Install when you notice gaps or worn edges. Verify fit with your model number.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Nameplate badge assembly for washers and dryers. Installs on the control panel or cabinet front. Replace if cracked, faded, peeling, or missing.

Replacement grounded heat safety label for dryers. Restores important safety markings when original label is faded, torn, or missing. Easy adhesive installation.

This replacement control knob is the dial used to adjust settings on compatible Whirlpool ranges and cooktops, restoring reliable tactile control and clear indicator alignment. It gives a simple, direct replacement for worn or broken knobs. What it does:

• Replaces a damaged, cracked, or missing control knob to restore user control
• Provides a firm push-on fit for accurate indicator alignment with settings
• Helps eliminate slipping or rounded-off edges that make adjustments difficult
• Designed to match the original fit and feel for safe, predictable operation

• Disconnect power to the appliance before beginning any work
• Pull the old knob straight off the shaft; press the replacement knob firmly onto the shaft until seated
• If the knob is tight or hard to remove, use a cloth and steady, even force to avoid damaging the shaft or surrounding trim

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.
