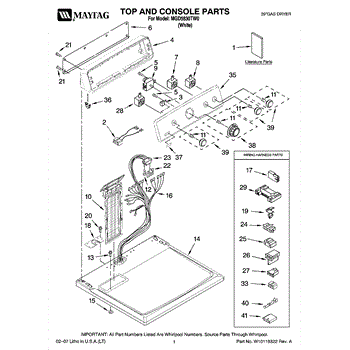

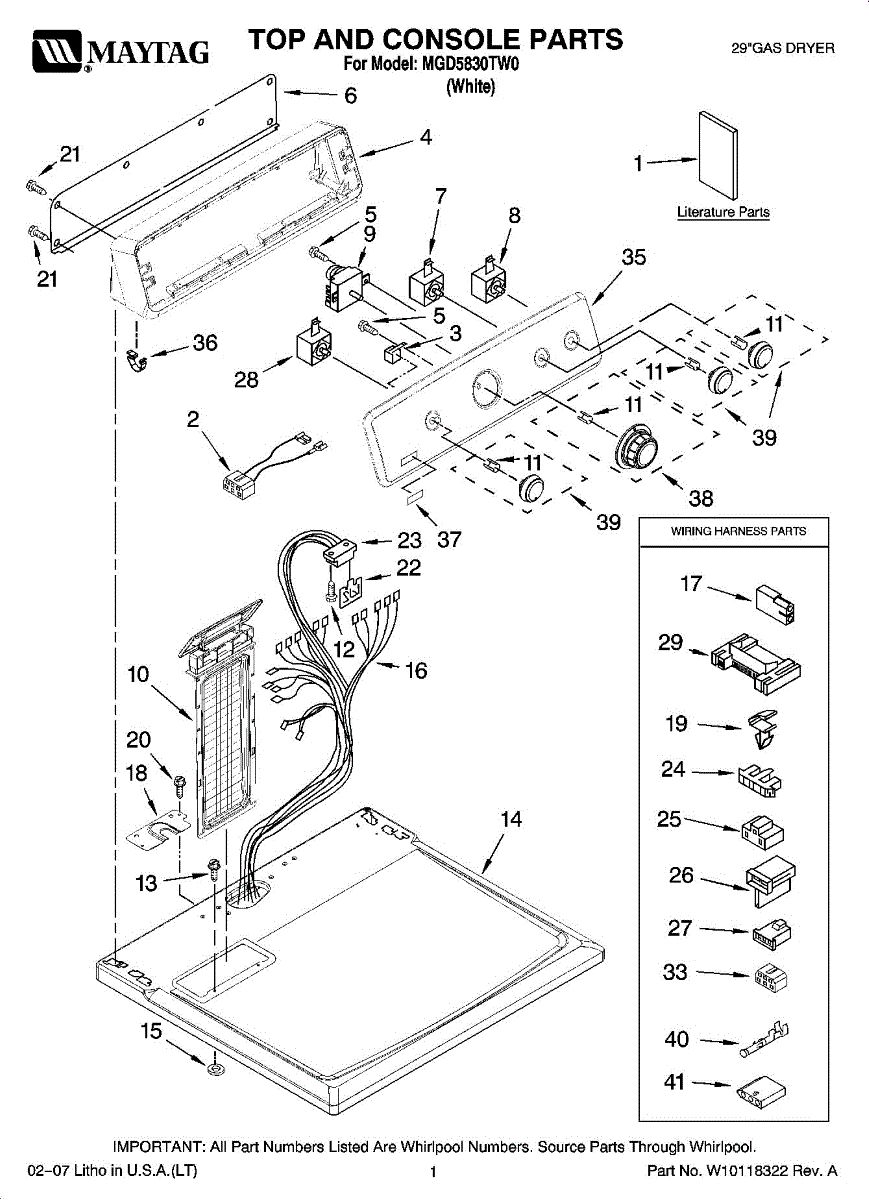

Parts for Whirlpool MGD5830TW0: 01 - Top And Console Parts

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Push To Start Switch is an OEM part for Whirlpool dryers. It is the interface between the user and the dryer, initiating the drying cycle when pressed. This switch is essential for the safe and efficient operation of the dryer, ensuring that it starts only when the button is deliberately pressed, thereby preventing accidental start-ups.

Causes of a bad Push To Start Switch can include electrical failures within the switch mechanism, wear and tear from repeated use, or damage from spills or moisture exposure.

Symptoms of a bad Push To Start Switch include:

• The dryer not starting when the button is pressed
• The need to press the button multiple times to start the dryer
• The dryer starting without the button being pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dryer Timer is an OEM part for Whirlpool dryers. It controls the drying cycles by regulating the duration and sequence of operations, ensuring that clothes are dried properly according to the selected settings.

Over time, the dryer timer can wear out due to regular use, electrical issues, or internal mechanical failures. A faulty timer can lead to cycles not starting or ending correctly, resulting in under-dried or over-dried clothes.

Symptoms of a bad Dryer Timer include:

• The dryer not advancing through cycles
• The timer not moving or stopping
• Inconsistent drying times or the dryer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This part is a moisture sensor control board that is used on dryer units. This component monitors the moisture levels within the dryer and adjusts the dry time during the automatic drying cycle. A new moisture sensor control board will be needed if the time is not advancing in the automatic drying cycle, even if it does advance in the timed dry cycle. Another sign is if the dryer continues to run after the clothing inside is dry. Unplug the dryer from its power source prior to replacing this component. The person performing this task may wish to wear work gloves to protect their hands.The moisture sensor control board is compatible with dryers that are manufactured by Kenmore, KitchenAid, Kenmore Elite, Whirlpool, Amana, Crosley, Maytag, Inglis, Sears Canada, Roper, and Sears. This part is sold individually and it is a genuine OEM replacement part that comes straight from the manufacturer.

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This timer knob assembly replaces a worn or broken oven timer control knob, restoring easy, precise setting of bake and timer functions. It fits on compatible Whirlpool ranges and provides a secure, easy-turn grip for dependable operation. What it does:

• Replaces a damaged or missing timer control knob so you can set oven time and timers accurately
• Restores full rotational control and tactile detents for clear position feedback
• Helps stop slipping or loose knob movement that prevents proper timer selection
• Compatible with timer shafts that accept the same spline and clip attachment style

• One timer knob assembly

• Install by pulling off the old knob and pressing the new knob firmly onto the timer shaft until seated
• The knob is aligned to the timer's index mark before use
• Disconnect power to the appliance if working near live controls or if additional disassembly is required
• If the knob does not seat properly, check shaft type and fit; do not force

This is a replacement control knob assembly that restores a secure, easy-to-grip interface for selecting settings on the appliance. It replaces a worn, cracked, or missing knob so controls are easy to read and use. What it does:

• Replaces the worn or broken control knob so dials turn smoothly and settings hold
• Provides a correct fit on the control shaft for reliable selection of cycles or temperatures
• Helps eliminate slipping, sticking, or incomplete knob engagement when adjusting controls
• Matches OEM shape and mounting method for a factory-like feel

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Remove the old knob by pulling straight off the control shaft; inspect shaft and splines for damage
• Align the replacement knob to the shaft splines and press firmly until fully seated
• If knob does not fully engage, do not force—verify spline alignment

For mating terminal use [AP31136300].
