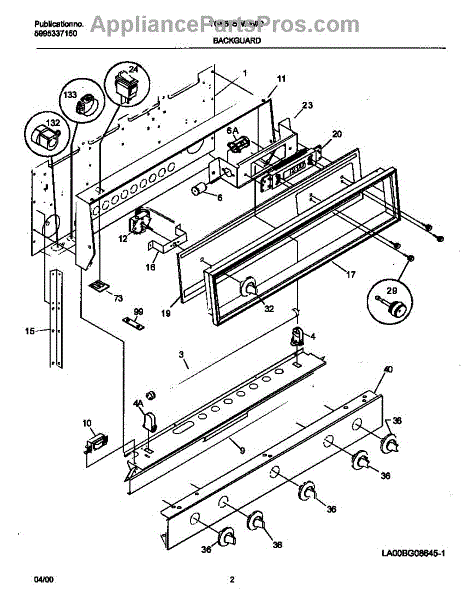

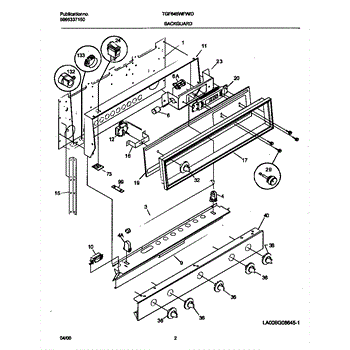

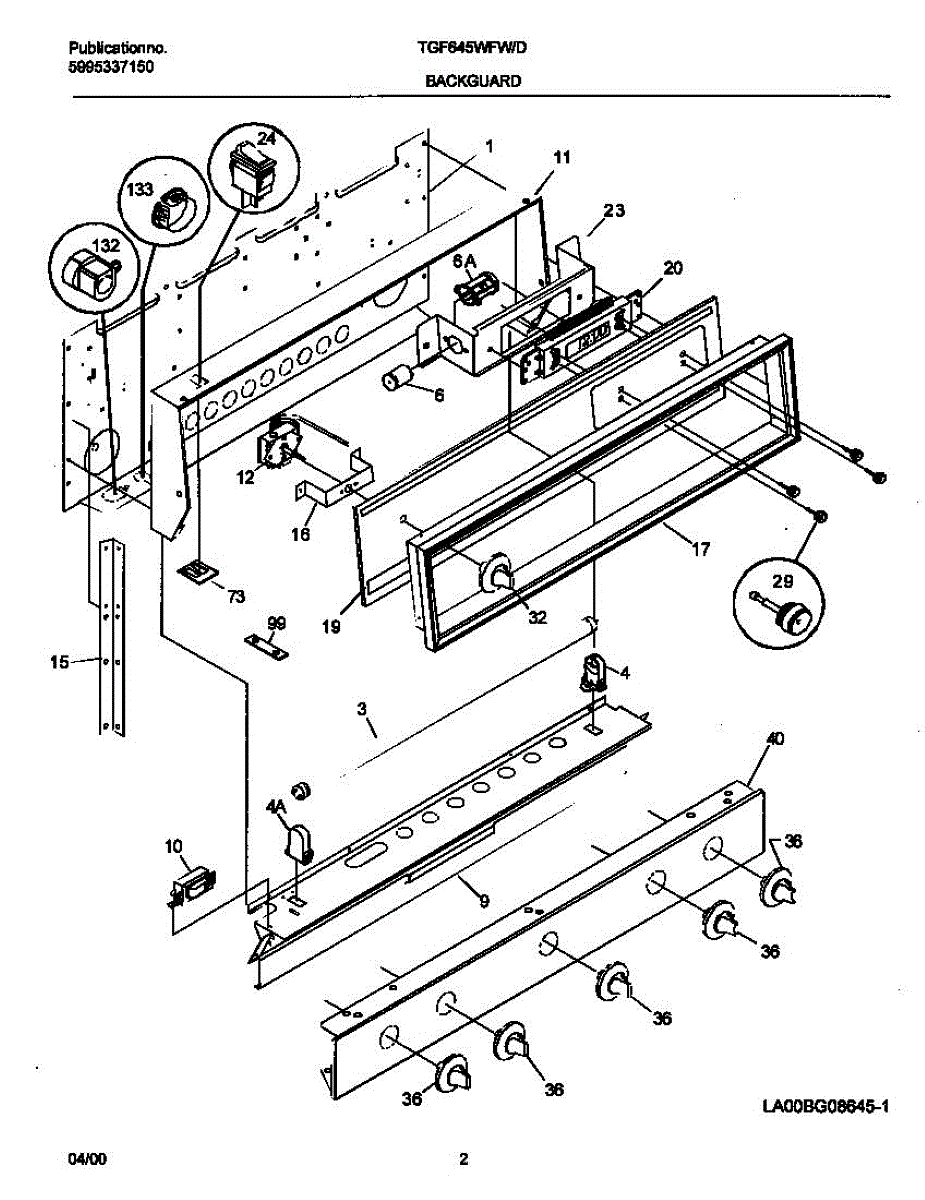

Parts for Frigidaire TGF645WFD7: 02 - Backguard Parts

This decorative door trim restores the finished look around a range or oven door and hides gaps or mounting hardware for a clean appearance. It's a direct-fit replacement that helps maintain your appliance's original styling. What it does:

• Covers and protects the edge of the oven/range door for a finished appearance
• Hides exposed screws, gaps, or worn factory edges
• Helps prevent dirt buildup around the door perimeter
• Useful when original trim is cracked, dented, or missing

• One decorative door trim

• Remove power to the appliance and allow surfaces to cool before beginning
• Installation typically requires removing the door or outer panel to access fasteners
• Keep all screws and mounting clips to reinstall the trim securely

This control knob is the user interface dial that lets you select settings on your range or cooktop, restoring simple, reliable control of heat and oven functions. It's a direct-fit replacement when the original knob is cracked, loose, or missing. What it does:

• Replaces a worn, cracked, or missing control knob so you can securely set temperature and function positions.
• Provides a positive grip and clear pointer for accurate selection of burners or oven modes.
• Restores tactile feedback and detent positions for safe, predictable operation.
• Helps stop unintended knob movement that can lead to incorrect settings or heat levels.

• One control knob (single knob)

• Pull the old knob straight off the valve/stem; align the new knob's splines with the stem and push until fully seated.
• If knob resists, verify correct orientation of splines—do not force to avoid damaging the valve stem.
• Disconnect power/gas or follow manufacturer safety instructions for your appliance before attempting repairs.

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

A replacement 10-24 x 5/8 screw used to fasten interior and exterior appliance components. Simple, direct-fit hardware that restores secure mounting where a worn or missing machine screw is causing loose panels or trim. What it does:

• Secures panels, brackets, and trim pieces to prevent rattling and misalignment
• Replaces stripped, rusted, or lost screws that cause loose or vibrating parts
• Restores proper attachment for components that won't stay in place
• Works wherever a 10-24 x 5/8 machine screw is required

• One 10-24 x 5/8 screw

• Use the correct driver and steady pressure to avoid stripping the head or threads
• Tighten until snug; avoid over-tightening which can damage mating parts
• Disconnect power to the appliance before working on electrical or moving components
• Replace the receiving nut or insert as needed for a secure fit

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This is an oval-head square-drive screw used to secure interior and exterior appliance components. It provides a low-profile finish and corrosion-resistant black finish for a neat, durable hold. What it does:

• Fastens panels, brackets, trim pieces, and other sheet-metal or plastic parts
• Oval head gives a slightly countersunk, finished appearance when installed
• Square (Robertson) drive resists cam-out for easier tightening
• Common replacement when original screws are stripped, missing, or corroded

• Use the correct square-drive (Robertson) bit to avoid stripping the screw head
• Hand-start the screw to ensure proper alignment before using power tools
• Do not overtighten; stop once the part is snug to avoid thread or panel damage
• Disconnect power and follow appliance safety precautions before servicing

Size: 6-20 x 0.312 inch.
