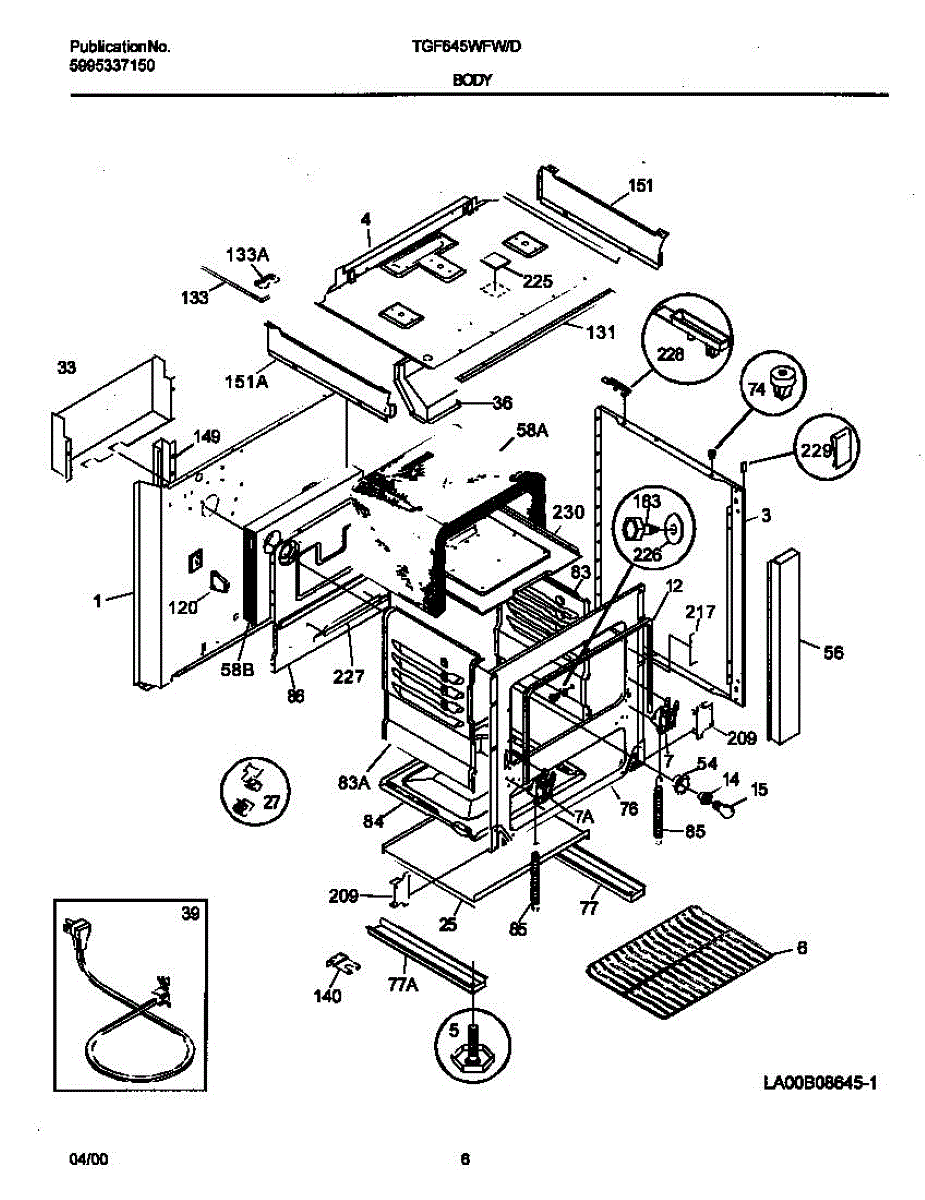

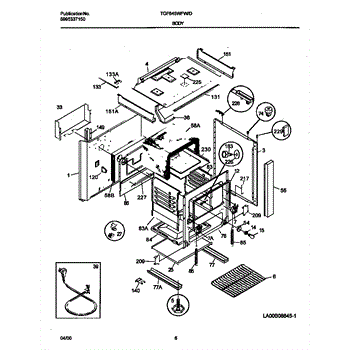

Parts for Frigidaire TGF645WFD7: 04 - Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Color: Almond

This shoulder screw secures moving or fixed appliance components by providing a built-in spacer and pivot point for proper alignment and smooth operation. It restores correct fit where a worn or missing shoulder fastener causes play. What it does:

• Provides a precision spacer and pivot for hinges, drawers, or linkage assemblies
• Holds components at the correct distance to prevent rubbing and binding
• Helps stop wobble, misalignment, rattling, or uneven movement when the original shoulder screw is worn or missing
• Works where a headed screw with an integrated shoulder is required for smooth rotation or exact spacing

• One shoulder screw

• Disconnect power and remove the appliance panel or access covers before replacing hardware
• Handle small parts carefully to avoid dropping them into assemblies; magnetic pickup tool can help
• Install in the original location and tighten securely but avoid overtightening; do not modify the shoulder or thread
• If the screw secures a load-bearing hinge or mechanism, verify alignment and operation after installation

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

A replacement 10-24 x 5/8 screw used to fasten interior and exterior appliance components. Simple, direct-fit hardware that restores secure mounting where a worn or missing machine screw is causing loose panels or trim. What it does:

• Secures panels, brackets, and trim pieces to prevent rattling and misalignment
• Replaces stripped, rusted, or lost screws that cause loose or vibrating parts
• Restores proper attachment for components that won't stay in place
• Works wherever a 10-24 x 5/8 machine screw is required

• One 10-24 x 5/8 screw

• Use the correct driver and steady pressure to avoid stripping the head or threads
• Tighten until snug; avoid over-tightening which can damage mating parts
• Disconnect power to the appliance before working on electrical or moving components
• Replace the receiving nut or insert as needed for a secure fit

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Hex washer head ,10-32 x 0.375. Ground
