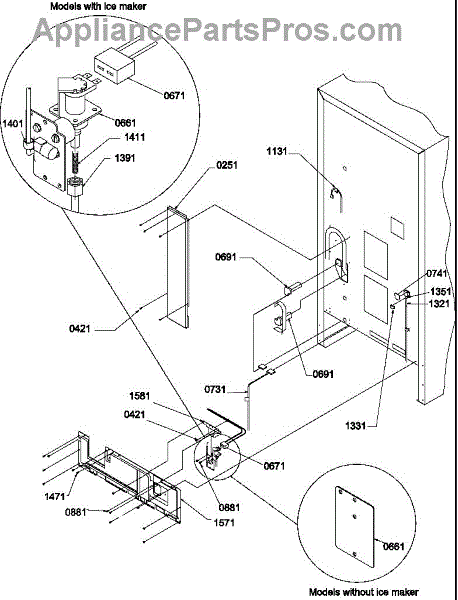

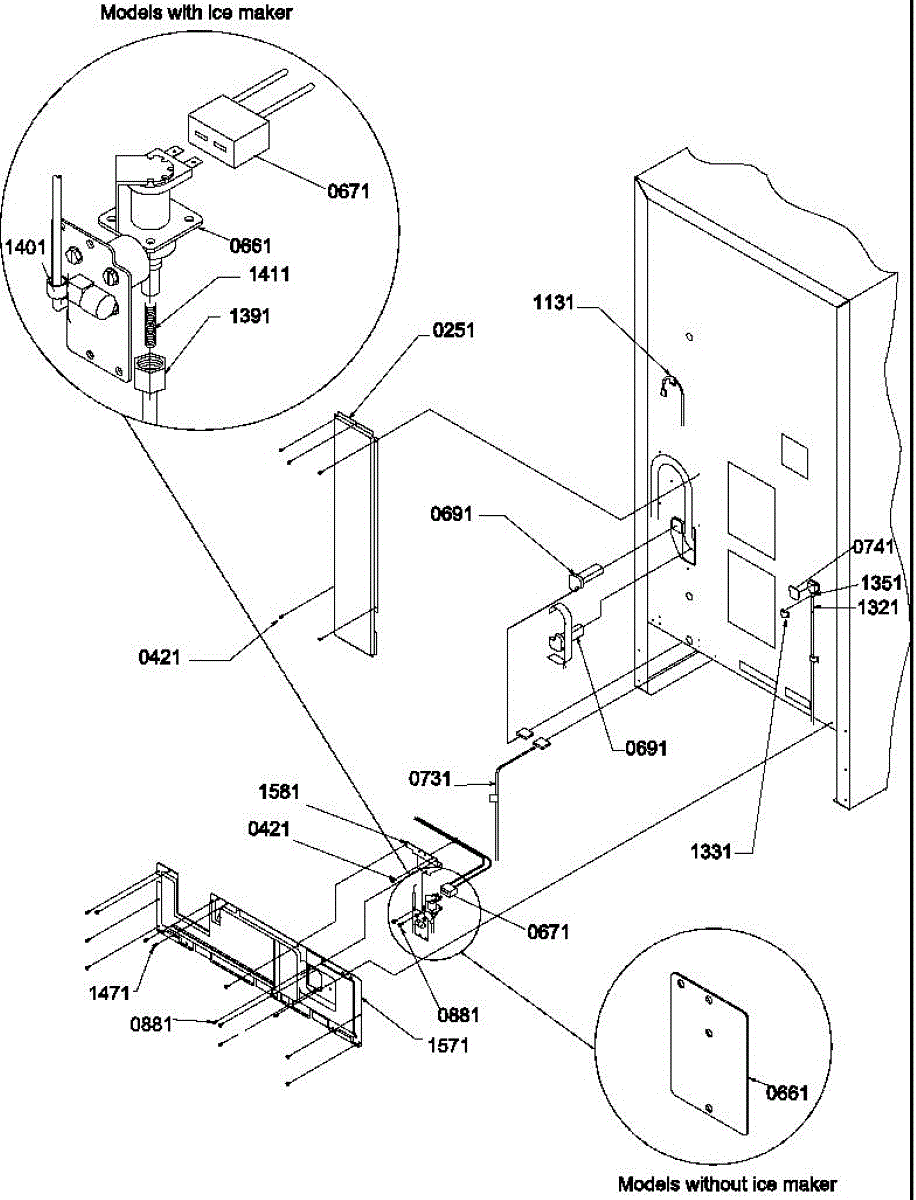

Parts for Amana BBI20TE / P1199101W E: 02 - Cabinet Back Parts

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

This electrically actuated valve controls the flow of household water into your appliance during operation. Replacing a sticking or leaking valve restores proper fill performance and helps prevent unwanted dripping between cycles. What it does:

• Opens and closes to admit the correct amount of water at the right time
• Helps maintain stable water pressure and shutoff to the unit
• Common symptoms of a failing valve: no fill, slow/insufficient fill, water seeping into the tub when off, or leaks from the valve body
• May buzz or hum without allowing water flow when the internal coil or screen has failed or is clogged

• 1 water inlet valve

• Disconnect power and shut off the water supply before servicing
• Keep towels or a tray handy; some residual water will drain
• Note hose and wire orientations; transfer any brackets or fittings from the original valve
• After installation, restore water and power, check for leaks, and run a test fill cycle

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks

Size: 1/4 inch. Nut for plastic water line.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.
