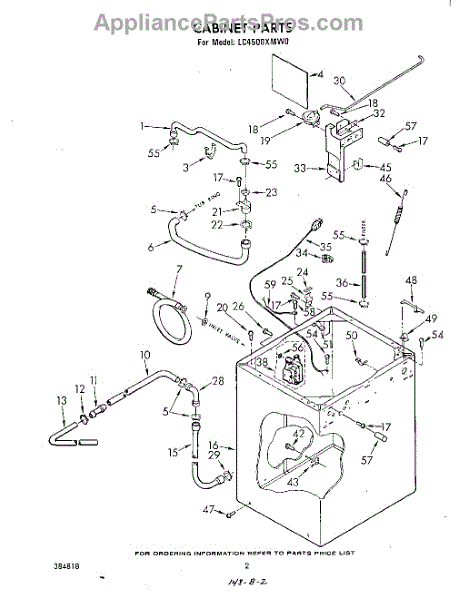

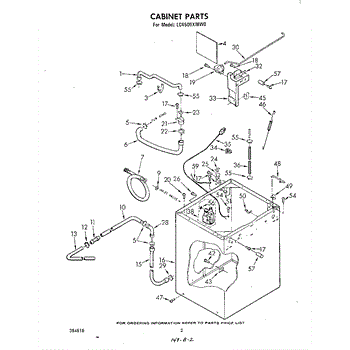

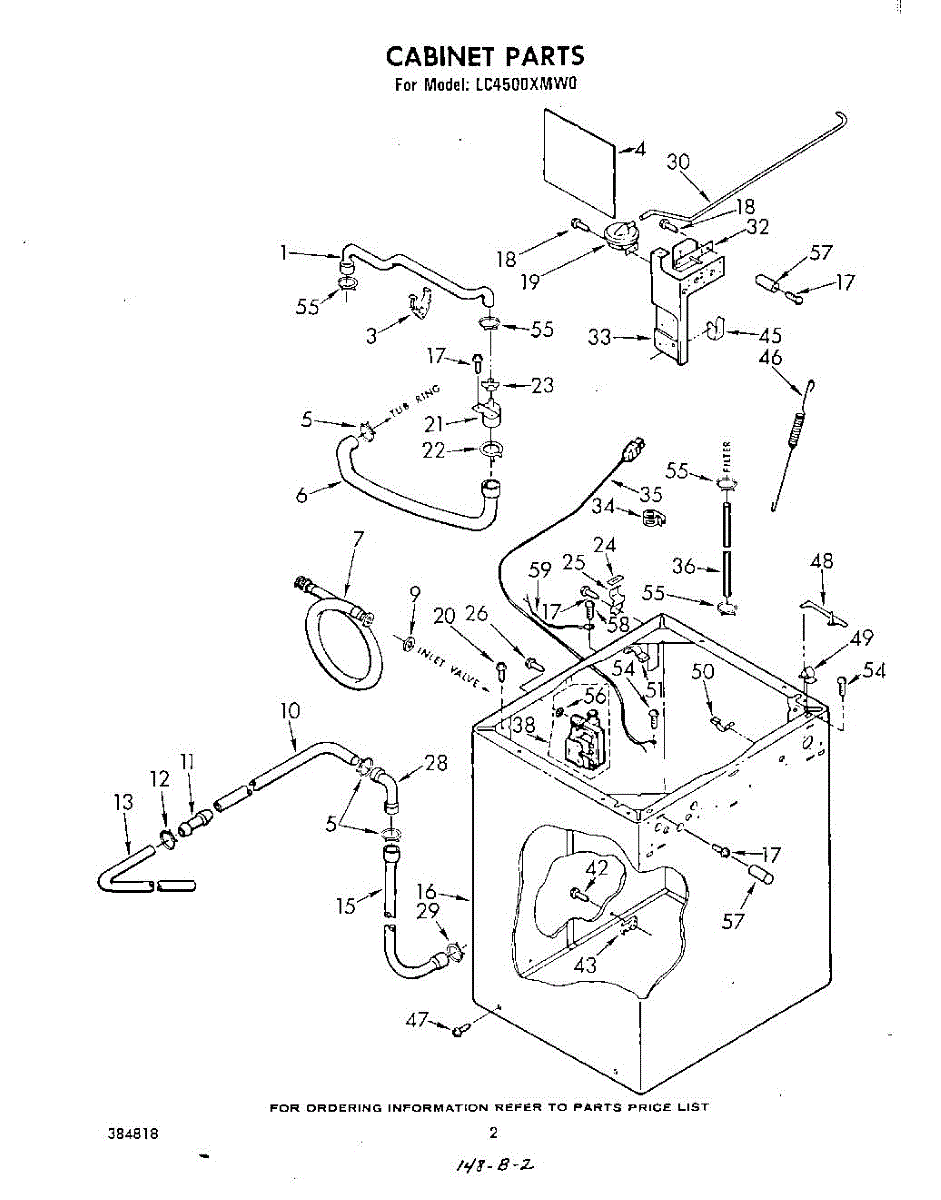

Parts for Whirlpool LC4500XMW0: 02 - Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

This hose coupling connects a flexible appliance hose to the appliance plumbing, restoring a secure water connection and preventing leaks. Ideal when a worn or damaged coupling causes drips or loose hose fit. What it does:

• Provides a secure connection point between an appliance hose and the appliance inlet
• Replaces cracked, broken or corroded couplings that can leak or allow the hose to detach
• Restores proper hose sealing to reduce water drips at the connection
• Compatible with the original inlet connection type and mounting orientation

• Turn off and disconnect appliance power and shut off the water supply before replacing
• Remove the old coupling and clean the mating surfaces; inspect hose and clamps for wear
• Use proper clamps and hand-tighten; avoid over-tightening which can damage fittings

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Specs: 10-16 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

This replacement siphon break is used in the drain system. It admits air into the drain hose to prevent a vacuum from forming, stopping siphoning/backflow so the washer maintains proper water level and helping prevent leaks from a cracked or clogged break.

• Admits air into the drain line to prevent siphoning and backflow
• Helps the washer maintain correct water levels during fill and rinse
• Common symptoms include water draining out while filling, gurgling/backflow, or leaks near the rear drain connection
• Replace if the siphon break is cracked, brittle, obstructed, or leaking

• Disconnect power and, if needed, turn off water supply; pull the unit forward for access
• Place a towel or pan to catch residual water when removing hoses
• Note hose routing and clamp positions; transfer/secure clamps and ensure no kinks
• Run a brief fill/drain test and check all connections for leaks

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

This cap fits over the siphon break fitting in a drain system, helping contain splashes and seal the opening so the break can work as intended. Replace a cracked, loose, or missing cap to stop leaks and maintain proper drainage.

• Covers and seals the siphon break body/fitting
• Helps prevent water leakage or spray at the break during drain
• Supports proper anti-siphon/backflow operation of the drain path
• Typical signs include leaking at the break, a cap that won't stay on, or visible cracks

• Disconnect power; shut off water if working near hoses
• Access the siphon break and remove the old/damaged cap
• Clean the mating area; install the new cap and hand-tighten—do not overtighten
• Run a short fill/drain and check for leaks

Size: 10-24 x 3/8 inch.

This connector is an insulated electrical harness terminal that joins appliance wiring to restore a secure electrical connection and help prevent intermittent power or arcing. It's a direct-replacement style used on select Whirlpool appliances. What it does:

• Provides a secure, insulated connection between two wires or a wire and a component terminal.
• Helps stop intermittent power, flickering, or loss of function caused by loose or damaged terminals.
• Reduces risk of arcing and overheating at a compromised connection point.
• Matches OEM fit/shape to maintain proper routing and strain relief where applicable.

• Turn off and unplug the appliance (or shut off breaker) before inspecting or replacing electrical parts.
• Inspect surrounding wiring and terminals for heat or corrosion; replace damaged wiring as needed.
• Use proper crimping or terminal tools and secure strain relief; verify firm, no-play connections before restoring power.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This is a clear plastic hose that runs from the water level switch to the bottom of the tub.

The Water Level Pressure Switch Hose is an OEM part for Whirlpool washers, playing a critical role in the accurate measurement of water levels within the machine.

Causes of damage to the Water Level Pressure Switch Hose can stem from natural wear and tear over time, leading to cracks or holes in the hose.

Symptoms of a bad Water Level Pressure Switch Hose include:

• The washer overfills or underfills, indicating a problem with water level detection.
• Unusual noises during the fill cycle, which may suggest air leaks in the hose.
• Error codes related to water level or filling issues displayed on the washer.
• The machine stops mid-cycle due to incorrect water level readings.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Water Inlet Valve is an OEM part for Whirlpool washing machines. It controls the flow of hot and cold water into the washer. This component is crucial for starting the wash cycle, as it opens to allow water to enter and closes to stop the flow once the appropriate level is reached, ensuring efficient wash performance.

Causes of a bad Water Inlet Valve can include mineral deposits and sediment build-up, which can obstruct the flow of water, or mechanical failure such as a broken solenoid that prevents the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve include:

• Water not filling the tub at the beginning of the cycle
• Water leaking from the valve
• Washer not starting due to inability to fill
• Unusual noises from the valve area during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: #9-15 x 1 inch long. Hex head.

Size: 10-16 x 5/8 inch.

Size: 8-32 x 1/4 inch.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This adapter tube assembly connects sections of the appliance's water line to create a secure, leak-resistant path for water flow. Replace it if the tube is cracked or the connection no longer seals properly to prevent leaks and restore flow.

• Connects water tubing between components within the appliance's water system
• Helps maintain a tight, leak-resistant seal at the joint
• Restores proper water flow when a tube or connector is damaged
• Typical symptoms: water leaking at the connection, reduced or no water flow, visible cracks/kinks, loose fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place a towel or pan to catch any residual water
• Note routing and orientation before removal to ensure correct reassembly
• After installation, restore water and check all connections for leaks

Specs: 10-16 x 1/2 inch.
