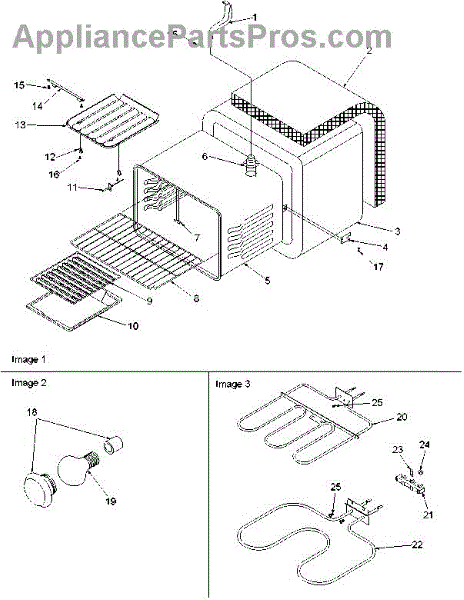

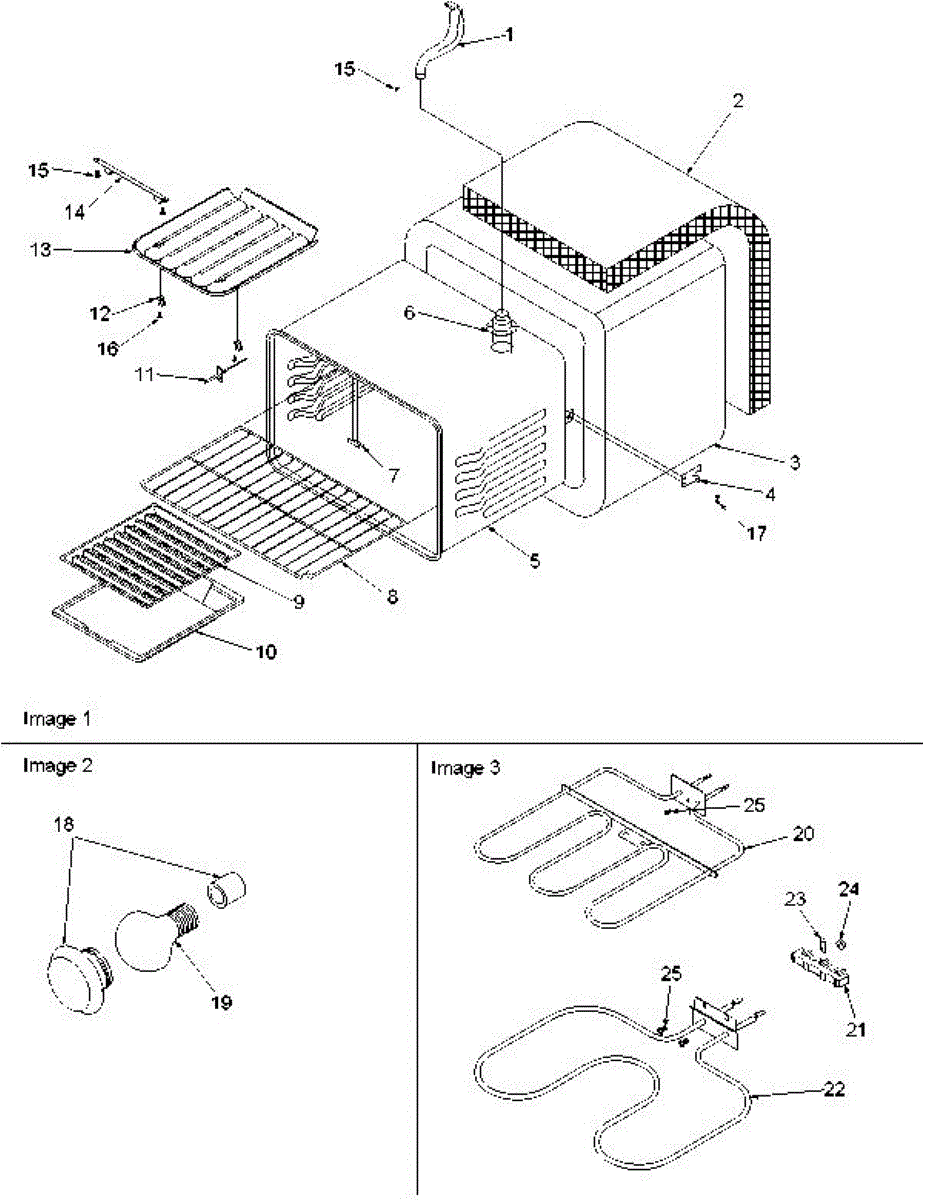

Parts for Amana ART6511 E / P1143689N E: 02 - Cavity Parts

This part has been discontinued and is no longer available.

Color: chrome. Measures about 23 inches wide by 16 inches deep.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This temperature sensor monitors internal temperature and relays it to the control so heating or cooling can be regulated. Replacing a faulty sensor helps restore accurate temperature control, consistent cycling, and dependable performance. What it does

• Measures compartment or cavity temperature and sends a signal to the control
• Helps the unit reach and maintain the set temperature
• Common failure symptoms: temperature too hot/cold vs. setting, long/short cycling, failure to reach setpoint, or related error codes
• Tests out-of-range for resistance/ohms when defective

• 1 temperature sensor

• Disconnect power before servicing; shut off gas
• Access the sensor; note wire routing and connector orientation
• Do not pull on wires; transfer any clips, grommets, or brackets from the old sensor
• Restore power and run any model-specific diagnostics or calibration if required

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Restore top-heat performance with this 240V broil element. It provides the intense overhead heat needed for broiling and finishing, replacing a burned-out or damaged element so your oven broiler works reliably and browns evenly again.

• Supplies the oven's top heat source for broiling and quick browning
• Common failure signs: broiler won't heat, uneven browning, visible breaks/blisters, or a breaker trip when broil is selected
• 240V design for standard residential electric ranges and wall ovens
• Replacing an open/weak element restores proper broiler operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; unfasten the element mounting screws and gently pull the element forward
• Transfer the two wires to the new element one at a time; do not let wires slip back through the liner
• Reinstall and secure; ensure terminals are tight and the element isn't touching oven surfaces before restoring power and testing

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

The Oven Bake Element is an OEM replacement part for Whirlpool ovens. Located at the bottom of the oven cavity, it is responsible for providing the consistent heat necessary for baking and roasting. This element ensures even cooking by heating up uniformly and maintaining the set temperature throughout the cooking process.

Over time, the bake element can wear out or become damaged due to repeated exposure to high temperatures, spills, or power surges. Normal wear and tear, as well as accidental impacts during oven cleaning or rack adjustments, can also lead to the element malfunctioning.

Symptoms of a bad oven bake element include:

• The oven not heating up or reaching the set temperature
• Uneven baking or longer cooking times
• Visible signs of damage such as burns, blisters, or breaks in the element
• Sparking or unusual noises when the oven is in use
• The element not glowing red-hot during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Please Note. Due to a manufacturer change element may appear physically different from the original.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing
