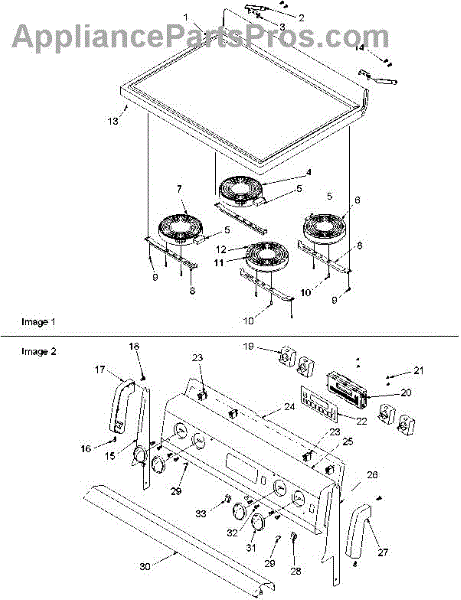

Parts for Amana ART6511 E / P1143689N E: 03 - Maintop And Backguard Parts

This surface heating element replaces a damaged or non-working top burner on compatible electric ranges, restoring even cooking performance and reliable heat for everyday pots and pans. What it does:

• Provides direct heat to cookware on the cooktop so burners reach cooking temperature
• Replaces a cracked, broken, or non-heating top burner element
• Fixes symptoms like a burner that stays cool, heats intermittently, or heats unevenly
• Works as a direct replacement for the listed part when the element is the failed component

• Disconnect power to the appliance at the breaker or unplug the range before starting any work
• Allow the cooktop and element to cool completely; handle carefully to avoid cuts from edges
• Reconnect wires to the matching terminals and secure the element in the appropriate retainer;

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Restore reliable, even heat to a single cooking zone with this surface heating element. It replaces a failed top burner element on an electric range or cooktop so pots and pans heat consistently for everyday cooking. What it does:

• Supplies controlled heat to one cooktop burner zone
• Helps resolve: burner won't heat, intermittent heating, or very slow heat-up
• Can address uneven heating or visible damage to the element
• Replaces an open/failed element to restore normal cooking performance

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model's service manual; support the cooktop if lifting a glass top
• Note wire locations and transfer connections one at a time to the new element
• Secure the element with existing brackets/clips as designed, then test operation before reassembly

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

Color: Black. This is the left hand side. For the right hand side use part number WP315841B

The infinite switch regulates power to your range or cooktop's surface element, letting you set heat from low to high. Replace a failed switch to restore dependable burner control and consistent cooking performance.

• Regulates on/off power cycling to the surface element based on the knob setting
• Helps resolve no-heat, stuck-on-high, won't-turn-off, or erratic/uneven heat issues
• Often controls the surface "on" indicator light circuit; failure may affect the light
• Installs behind the control knob and connects to the existing wire harness

• Disconnect power at the breaker; allow the appliance to cool completely
• Remove the knob and access panel to reach the switch
• Photograph wiring and transfer wires to the same labeled terminals (commonly L1, L2, H1, H2, P)
• Reassemble, restore power, and test multiple heat settings; check the element and wiring

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

To order indicator lens use WP22001948.

Color: Black. This is the right hand side. For the left hand side use part number WP315843B
